1.CBL(conv+bn+LeakyRelu)

def conv2d(filter_in, filter_out, kernel_size, stride=1):    pad = (kernel_size - 1) // 2 if kernel_size else 0    return nn.Sequential(OrderedDict([        ("conv", nn.Conv2d(filter_in, filter_out, kernel_size=kernel_size, stride=stride, padding=pad, bias=False)),        ("bn", nn.BatchNorm2d(filter_out)),        ("relu", nn.LeakyReLU(0.1)),    ]))

2.SPP(SpatialPyramidPool)

class SpatialPyramidPooling(nn.Module):    def __init__(self, pool_sizes=[5, 9, 13]):        super(SpatialPyramidPooling, self).__init__()        self.maxpools = nn.ModuleList([nn.MaxPool2d(pool_size, 1, pool_size//2) for pool_size in pool_sizes])    def forward(self, x):        features = [maxpool(x) for maxpool in self.maxpools[::-1]]        features = torch.cat(features + [x], dim=1)        return features

3. 卷积+上采样

class Upsample(nn.Module):    def __init__(self, in_channels, out_channels):        super(Upsample, self).__init__()        self.upsample = nn.Sequential(            conv2d(in_channels, out_channels, 1),            nn.Upsample(scale_factor=2, mode='nearest')        )    def forward(self, x,):        x = self.upsample(x)        return x

4. 三次卷积块

def make_three_conv(filters_list, in_filters):    m = nn.Sequential(        conv2d(in_filters, filters_list[0], 1),        conv2d(filters_list[0], filters_list[1], 3),        conv2d(filters_list[1], filters_list[0], 1),    )    return m

5.五次卷积块

def make_five_conv(filters_list, in_filters):    m = nn.Sequential(        conv2d(in_filters, filters_list[0], 1),        conv2d(filters_list[0], filters_list[1], 3),        conv2d(filters_list[1], filters_list[0], 1),        conv2d(filters_list[0], filters_list[1], 3),        conv2d(filters_list[1], filters_list[0], 1),    )    return m

6.最后的Head输出

def yolo_head(filters_list, in_filters):    m = nn.Sequential(        conv2d(in_filters, filters_list[0], 3),        nn.Conv2d(filters_list[0], filters_list[1], 1),    )    return m

7.HEAD构建

class YoloBody(nn.Module):    def __init__(self, num_anchors, num_classes):        super(YoloBody, self).__init__()        #  backbone        self.backbone = darknet53()        self.conv1 = make_three_conv([512,1024],1024)        self.SPP = SpatialPyramidPooling()        self.conv2 = make_three_conv([512,1024],2048)        self.upsample1 = Upsample(512,256) # 上采样        self.conv_for_P4 = conv2d(512,256,1)        self.make_five_conv1 = make_five_conv([256, 512],512)        self.upsample2 = Upsample(256,128)        self.conv_for_P3 = conv2d(256,128,1)        self.make_five_conv2 = make_five_conv([128, 256],256)                # 3*(5+num_classes)=3*(5+20)=3*(4+1+20)=75        # 4+1+num_classes        final_out_filter2 = num_anchors * (5 + num_classes)                self.yolo_head3 = yolo_head([256, final_out_filter2],128)        self.down_sample1 = conv2d(128,256,3,stride=2)  # 下采样        self.make_five_conv3 = make_five_conv([256, 512],512)        # 3*(5+num_classes)=3*(5+20)=3*(4+1+20)=75        final_out_filter1 =  num_anchors * (5 + num_classes)        self.yolo_head2 = yolo_head([512, final_out_filter1],256)        self.down_sample2 = conv2d(256,512,3,stride=2)        self.make_five_conv4 = make_five_conv([512, 1024],1024)        # 3*(5+num_classes)=3*(5+20)=3*(4+1+20)=75        final_out_filter0 =  num_anchors * (5 + num_classes)        self.yolo_head1 = yolo_head([1024, final_out_filter0],512)    def forward(self, x):        #  backbone        x2, x1, x0 = self.backbone(x)        P5 = self.conv1(x0)        P5 = self.SPP(P5)        P5 = self.conv2(P5)        P5_upsample = self.upsample1(P5)        P4 = self.conv_for_P4(x1)        P4 = torch.cat([P4,P5_upsample],axis=1)        P4 = self.make_five_conv1(P4)        P4_upsample = self.upsample2(P4)        P3 = self.conv_for_P3(x2)        P3 = torch.cat([P3,P4_upsample],axis=1)        P3 = self.make_five_conv2(P3)        P3_downsample = self.down_sample1(P3)        P4 = torch.cat([P3_downsample,P4],axis=1)        P4 = self.make_five_conv3(P4)        P4_downsample = self.down_sample2(P4)        P5 = torch.cat([P4_downsample,P5],axis=1)        P5 = self.make_five_conv4(P5)        out2 = self.yolo_head3(P3)        out1 = self.yolo_head2(P4)        out0 = self.yolo_head1(P5)        return out0, out1, out2

测试

# 随机生成输入数据rgb = torch.randn(1, 3, 608, 608)# 定义网络net = YoloBody(3, 80)# 前向传播out = net(rgb)# 打印输出大小print('-----'*5)print(out[0].shape)print('-----'*5)print(out[1].shape)print('-----'*5)print(out[2].shape)print('-----'*5)

Head的Decode层

预测框和真实框进行iou计算

1.yolo_decode

# output:(B,A*n_ch,H,W)  --->  (B,A,H,W,n_ch)def yolo_decode(output, num_classes, anchors, num_anchors, scale_x_y):    device = None    cuda_check = output.is_cuda    if cuda_check:        device = output.get_device()    n_ch = 4+1+num_classes # n_ch == [tw,ty,tw,th,obj,class]    A = num_anchors    B = output.size(0)    H = output.size(2)    W = output.size(3)        # (B,A,n_ch,H,W)  --->  (B,A,H,W,n_ch)    output = output.view(B, A, n_ch, H, W).permute(0,1,3,4,2).contiguous()    bx, by = output[..., 0], output[..., 1]    bw, bh = output[..., 2], output[..., 3]    det_confs = output[..., 4]    cls_confs = output[..., 5:]    bx = torch.sigmoid(bx)    by = torch.sigmoid(by)    bw = torch.exp(bw)*scale_x_y - 0.5*(scale_x_y-1)    bh = torch.exp(bh)*scale_x_y - 0.5*(scale_x_y-1)    det_confs = torch.sigmoid(det_confs)    cls_confs = torch.sigmoid(cls_confs)    grid_x = torch.arange(W, dtype=torch.float).repeat(1, 3, W, 1).to(device)    grid_y = torch.arange(H, dtype=torch.float).repeat(1, 3, H, 1).permute(0, 1, 3, 2).to(device)    bx += grid_x    by += grid_y    for i in range(num_anchors):        bw[:, i, :, :] *= anchors[i*2]        bh[:, i, :, :] *= anchors[i*2+1]    bx = (bx / W).unsqueeze(-1)    by = (by / H).unsqueeze(-1)    bw = (bw / W).unsqueeze(-1)    bh = (bh / H).unsqueeze(-1)    #boxes = torch.cat((x1,y1,x2,y2), dim=-1).reshape(B, A*H*W, 4).view(B, A*H*W, 1, 4)    boxes = torch.cat((bx, by, bw, bh), dim=-1).reshape(B, A * H * W, 4)    det_confs = det_confs.unsqueeze(-1).reshape(B, A*H*W, 1)    cls_confs =cls_confs.reshape(B, A*H*W, num_classes)    # confs = (det_confs.unsqueeze(-1)*cls_confs).reshape(B, A*H*W, num_classes)    outputs = torch.cat([boxes, det_confs, cls_confs], dim=-1)    #return boxes, confs    return outputs

class YoloLayer(nn.Module):    ''' Yolo layer    model_out: while inference,is post-processing inside or outside the model        true:outside    '''    def __init__(self, img_size, anchor_masks=[], num_classes=80, anchors=[], num_anchors=9, scale_x_y=1):        super(YoloLayer, self).__init__()        #[6,7,8]        self.anchor_masks = anchor_masks        #类别        self.num_classes = num_classes        #        if type(anchors) == np.ndarray:            self.anchors = anchors.tolist()        else:            self.anchors = anchors        print(self.anchors)        print(type(self.anchors))        self.num_anchors = num_anchors        self.anchor_step = len(self.anchors) // num_anchors        print(self.anchor_step)        self.scale_x_y = scale_x_y        self.feature_length = [img_size[0]//8,img_size[0]//16,img_size[0]//32]        self.img_size = img_size    def forward(self, output):        if self.training:            return output        in_w = output.size(3)        anchor_index = self.anchor_masks[self.feature_length.index(in_w)]        stride_w = self.img_size[0] / in_w        masked_anchors = []        for m in anchor_index:            masked_anchors += self.anchors[m * self.anchor_step:(m + 1) * self.anchor_step]        self.masked_anchors = [anchor / stride_w for anchor in masked_anchors]        data = yolo_decode(output, self.num_classes, self.masked_anchors, len(anchor_index),scale_x_y=self.scale_x_y)        return data

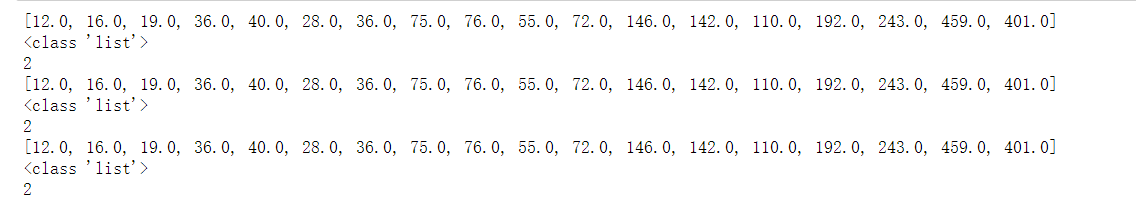

测试

import osimport numpy as np

def get_anchors():    anchors_path = os.path.expanduser('yolo_anchors_coco.txt')    with open(anchors_path) as f:        anchors = f.readline()    anchors = [float(x) for x in anchors.split(',')]    print(anchors)    return anchors

anchors = get_anchors()

yolo_decodes = []anchor_masks = [[0,1,2],[3,4,5],[6,7,8]]for i in range(3):    head = YoloLayer((608, 608, 3), anchor_masks,80,                                       anchors, len(anchors)//2).eval()    yolo_decodes.append(head)

output_list = []  # 存放解码后的输出预测for i in range(3):    output_list.append(yolo_decodes[i](out[i]))output = torch.cat(output_list, 1)print(output.shape)
