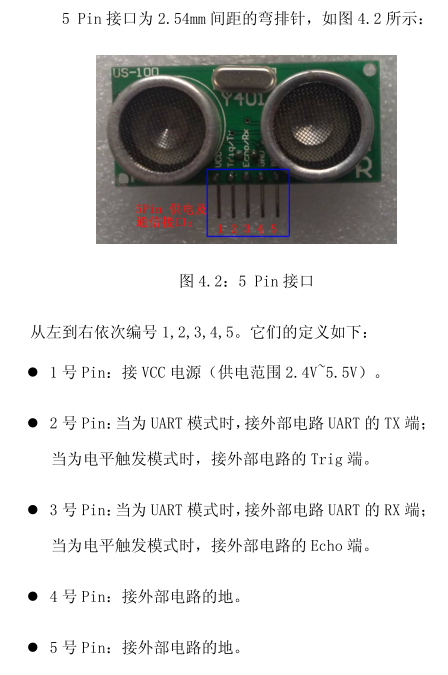

一、说明书摘要

驱动时序说明：

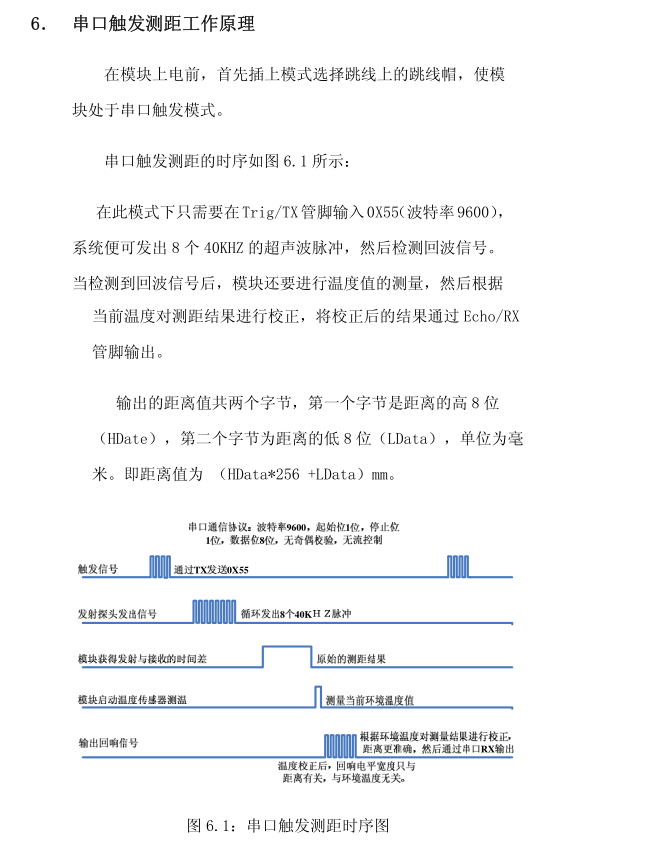

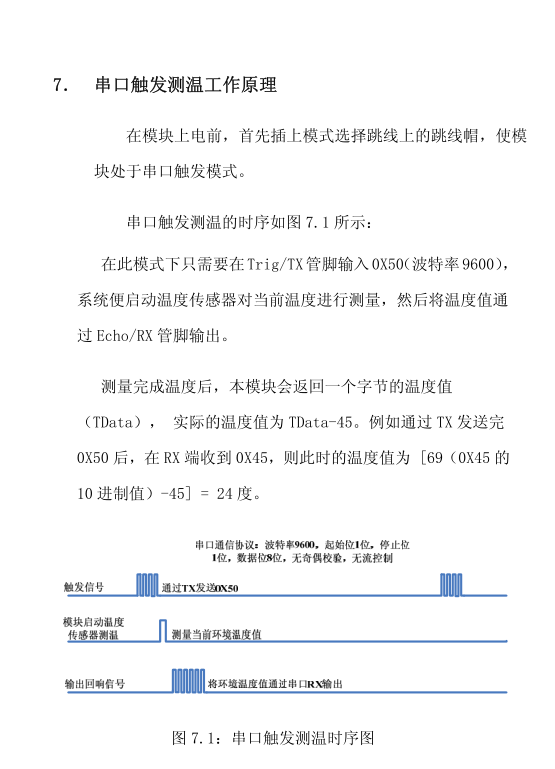

串口模式的时序很简单，向US100发送一帧0x55的数据即为测距，发送0x50即为测温，测距US100会返回2帧8位数据，分两次发送回来，第一帧为距离高8位，第二帧是距离低8位。测温US100只返回一帧数据。

Verilog代码

串口发送模块

//作者：杨成煜//日期：2020/4/7//`define SIMmodule	uart_tx(	//system signals	input			sclk,	input			s_rst_n,	//Uart_Interface	output	reg		rs232_tx,	//others	input			tx_trig,	input	[7:0]	tx_data,	output			tx_byte_done);//=================================================//**********define parameters and internal signals*//=================================================`ifndef SIMlocalparam	BAUD_END=5207;`elselocalparam	BAUD_END=56;`endiflocalparam	BAUD_M=BAUD_END/2-1;localparam	BIT_END=8;reg	[7:0]	tx_data_r;reg			tx_flag;reg	[12:0]	baud_cnt;reg			bit_flag;reg	[3:0]	bit_cnt;//=================================================//**********main code*******************//=================================================//tx_byte_doneassign tx_byte_done = (bit_cnt==BIT_END&&bit_flag==1'b1)?1'b1:1'b0;//tx_data_ralways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		tx_data_r <= 'd0;	else if(tx_trig==1'b1 && tx_flag==1'b0)		tx_data_r <= tx_data;		end//tx_flagalways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		tx_flag <= 1'b0;	else if(tx_trig==1'b1)		tx_flag <= 1'b1;	else if(bit_cnt==BIT_END && bit_flag==1'b1)		tx_flag <= 1'b0;end//baud_cntalways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		baud_cnt <= 'd0;	else if(baud_cnt==BAUD_END)		baud_cnt <= 'd0;	else if(tx_flag==1'b1)		baud_cnt <= baud_cnt + 1'b1;	else		baud_cnt <= 'd0;end//bit_flagalways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		bit_flag <= 1'b0;	else if(baud_cnt==BAUD_END)		bit_flag <= 1'b1;	else		bit_flag <= 1'b0;end//bit_cntalways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		bit_cnt <= 'd0;	else if(bit_flag==1'b1 && bit_cnt==BIT_END)		bit_cnt <= 'd0;	else if(bit_flag==1'b1)		bit_cnt <= bit_cnt + 1'b1;end//rs232_txalways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		rs232_tx <= 1'b1;	else if(tx_flag==1'b1)		case(bit_cnt)			0:rs232_tx <= 1'b0;//start_bit			1:rs232_tx <= tx_data_r[0];			2:rs232_tx <= tx_data_r[1];			3:rs232_tx <= tx_data_r[2];			4:rs232_tx <= tx_data_r[3];			5:rs232_tx <= tx_data_r[4];			6:rs232_tx <= tx_data_r[5];			7:rs232_tx <= tx_data_r[6];			8:rs232_tx <= tx_data_r[7];			default:rs232_tx <= 1'b1;		endcase	else		rs232_tx <= 1'b1;endendmodule

串口接收模块

//作者：杨成煜//日期：2020/4/7//`define SIMmodule uart_rx(	//system signals	input				sclk,	input				s_rst_n,	//uart interface	input				rs232_rx,	//others	output	reg	[7:0]	rx_data,	output	reg			po_flag);//=================================================//**********define parameters and internal signals*//=================================================`ifndef SIMlocalparam	BAUD_END=5207;`elselocalparam	BAUD_END=56;`endiflocalparam	BAUD_M=BAUD_END/2-1;localparam	BIT_END=8;reg			rx_r1;reg 		rx_r2;reg 		rx_r3;reg			rx_flag;reg[12:0]	baud_cnt;reg			bit_flag;reg[3:0]	bit_cnt;wire		rx_neg;//=================================================//**********main code*******************//=================================================assign		rx_neg = (rx_r3)&(~rx_r2);always	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n == 1'b0)		baud_cnt <= 'd0;	else if(baud_cnt == BAUD_END)		baud_cnt <= 'd0;	else if(rx_flag == 1'b1)		baud_cnt <= baud_cnt + 1'b1;	else		baud_cnt <= 'd0;endalways	@(posedge sclk)begin	rx_r1 <= rs232_rx;	rx_r2 <= rx_r1;	rx_r3 <= rx_r2;endalways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		rx_flag <= 1'b0;	else if(rx_neg==1'b1)		rx_flag <= 1'b1;	else if(bit_cnt=='d0 && baud_cnt==BAUD_END)		rx_flag <= 1'b0;endalways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		bit_flag <= 1'b0;	else if(baud_cnt==BAUD_M)		bit_flag <= 1'b1;	else		bit_flag <= 1'b0;endalways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		bit_cnt <= 'd0;	else if(bit_cnt == BIT_END && bit_flag == 1'b1)		bit_cnt <= 'd0;	else if(bit_flag == 1'b1)		bit_cnt <= bit_cnt + 1'b1;endalways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		rx_data <= 'd0;	else if(bit_flag==1'b1 && bit_cnt>='d1)		rx_data <= {   rx_r2,rx_data[7:1]};endalways	@(posedge sclk or negedge s_rst_n)begin	if(s_rst_n==1'b0)		po_flag <= 1'b0;	else if(bit_cnt == BIT_END && bit_flag == 1'b1)		po_flag <= 1'b1;	else		po_flag <= 1'b0;endendmodule

命令裁决模块

//作者：杨成煜//日期：2020/4/7//==================defines=====================`define SIMmodule	arbit(	//================System Signal================	input	clk,	input	rst_n,	//================Interface====================	input	get_dis_req,	input	get_temp_req,	output reg[7:0]	cmd,	output	trig_get_dis_req,	output	trig_get_temp_req);	//================parameters===================	`ifndef SIM		`else		`endif	//================System regs==================	reg get_dis_req_t0;	reg get_dis_req_t1;	reg get_temp_req_t0;	reg get_temp_req_t1;		//================Main Codes===================	always	@(posedge clk)begin		get_dis_req_t0 <= get_dis_req;		get_dis_req_t1 <= get_dis_req_t0;		get_temp_req_t0 <= get_temp_req;		get_temp_req_t1 <= get_dis_req_t0;	end	assign trig_get_dis_req = get_dis_req_t0&(~get_dis_req_t1);	assign trig_get_temp_req = get_temp_req_t0&(~get_dis_req_t1);		always	@(posedge clk or negedge rst_n)begin		if(rst_n==1'b0)			cmd <= 'd0;		else if(trig_get_dis_req==1'b1)			cmd <= 8'h55;		else if(trig_get_temp_req==1'b1)			cmd <= 8'h50;	end	endmodule

顶层模块

//作者：杨成煜//日期：2020/4/7//==================defines=====================`define SIM`define UART_MODmodule	US100(	//================System Signal================	input				clk,	input				rst_n,	//================Interface====================	input				rx,//link to us100 tx	output				tx,//link to us100 rx	input				get_dis_req,	input				get_temp_req,	output reg[15:0]	distance,	output reg[7:0]		temprature);	//================parameters===================	`ifndef SIM		`else		`endif	localparam			S_IDLE			=5'b00001;	localparam			S_GET_DIS		=5'b00010;	localparam			S_GET_TEMP		=5'b00100;	//================System reg===================	reg[4:0]			state;	wire[7:0]			cmd;	wire				trig_get_dis_req;	wire				trig_get_temp_req;	wire[7:0]			rx_data;	wire				flag_data_get;	reg					cnt_dis_byte;	wire				tx_req;	//================Main code====================		//cnt_dis_byte	always	@(posedge clk or negedge rst_n)begin		if(rst_n==1'b0)			cnt_dis_byte <= 1'b0;		else if(state==S_GET_DIS&&cnt_dis_byte==1'b1&&flag_data_get==1'b1)			cnt_dis_byte <= 1'b0;		else if(state==S_GET_DIS&&flag_data_get==1'b1)			cnt_dis_byte <= 1'b1;		else			cnt_dis_byte <= 1'b0;	end		assign		tx_req = trig_get_dis_req|trig_get_temp_req;	always	@(posedge clk or negedge rst_n)begin		if(rst_n==1'b0)			state <= S_IDLE;		else case(state)			S_IDLE:begin				if(trig_get_dis_req==1'b1)					state <= S_GET_DIS;				else if(trig_get_temp_req==1'b1)					state <= S_GET_TEMP;				else					state <= S_IDLE;			end			S_GET_DIS:begin				if(flag_data_get==1'b1&&cnt_dis_byte==1'b1)					state <= S_IDLE;				else					state <= S_GET_DIS;			end			S_GET_TEMP:begin				if(flag_data_get==1'b1)					state <= S_IDLE;				else					state <= S_GET_TEMP;			end			default:state <= S_IDLE;		endcase	end	//distance	always	@(posedge clk or negedge rst_n)begin		if(rst_n==1'b0)			distance <= 'd0;		else if(state==S_GET_DIS&&flag_data_get==1'b1)			distance <= {   distance[7:0],rx_data};	end	//temprature	always	@(posedge clk or negedge rst_n)begin		if(rst_n==1'b0)			temprature <= 'd0;		else if(state==S_GET_TEMP&&flag_data_get==1'b1)			temprature <= rx_data;	end		arbit arbit_inst(	//================System Signal================	.clk				(clk),	.rst_n				(rst_n),	//================Interface====================	.get_dis_req		(get_dis_req),	.get_temp_req		(get_temp_req),	.cmd				(cmd),	.trig_get_dis_req	(trig_get_dis_req),	.trig_get_temp_req	(trig_get_temp_req));uart_rx us100_uart_rx_inst(	//system signals	.sclk			(clk),	.s_rst_n		(rst_n),	//uart interface	.rs232_rx		(rx),	//others	.rx_data		(rx_data),	.po_flag		(flag_data_get));uart_tx us100_uart_tx_inst(	//system signals	.sclk			(clk),	.s_rst_n		(rst_n),	//Uart_Interface	.rs232_tx		(tx),	//others	.tx_trig		(tx_req),	.tx_data		(cmd),	.tx_byte_done	());endmodule
