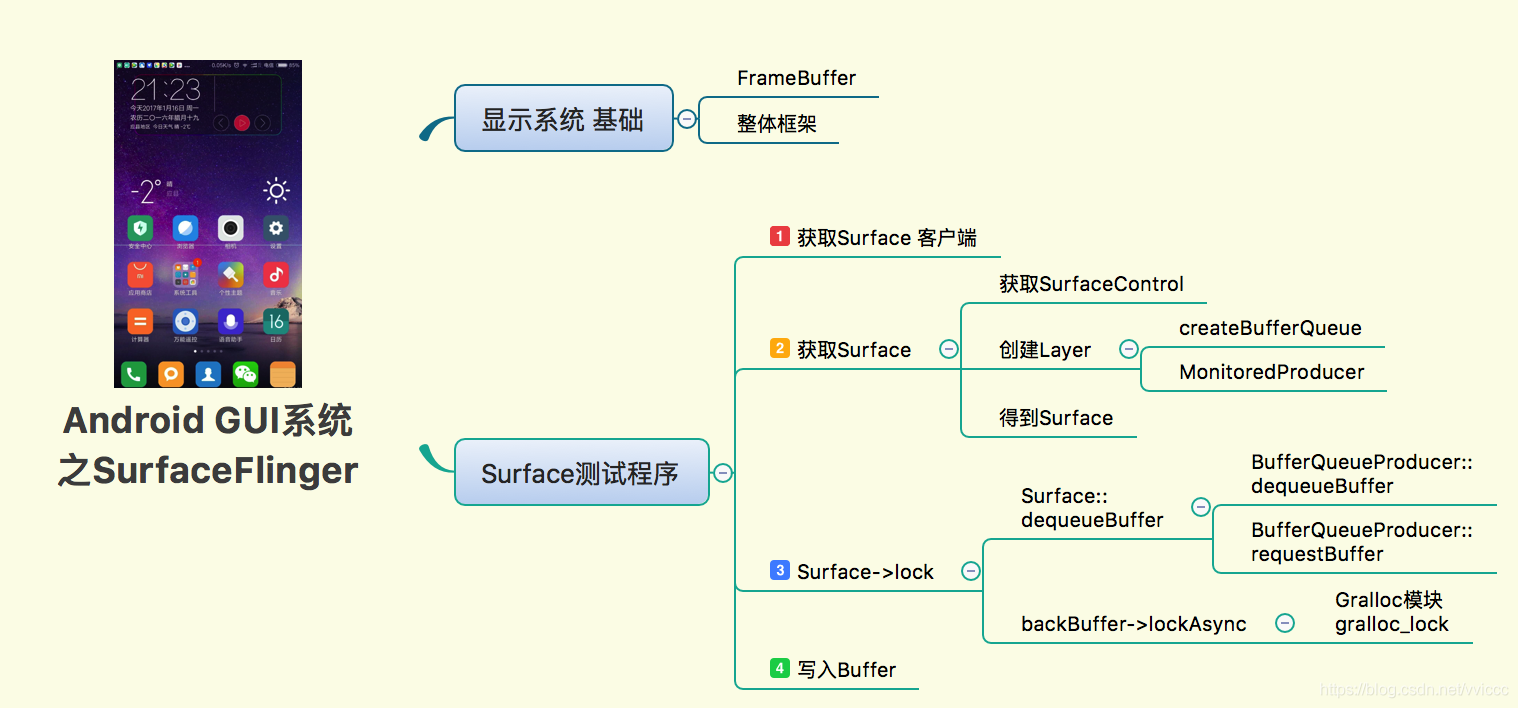

一　概述

该部分代码是在上一章节中 Surface 测试程序源码的精简版，保存了最关键的流程，如下所示：

#include

    #include

     #include

      #include

       #include

        #include

         #include

          #include

            using namespace android; int main(int argc, char** argv){ //1 创建surfaceflinger的客户端 sp

             client = new SurfaceComposerClient(); //2 获取surface sp

              surfaceControl = client->createSurface(String8("resize"), 160, 240, PIXEL_FORMAT_RGB_565, 0); sp

               surface = surfaceControl->getSurface(); //设置layer，layer值越大，显示层越靠前 SurfaceComposerClient::openGlobalTransaction(); surfaceControl->setLayer(100000); SurfaceComposerClient::closeGlobalTransaction(); //3 获取buffer->锁定buffer->写入buffer->解锁并提交buffer //这里主要关注：申请Buff 和 提交Buff ANativeWindow_Buffer outBuffer; surface->lock(&outBuffer, NULL); ssize_t bpr = outBuffer.stride * bytesPerPixel(outBuffer.format); android_memset16((uint16_t*)outBuffer.bits, 0xF800, bpr*outBuffer.height); surface->unlockAndPost(); //... return 0;}












主要的步骤为：

• 获取 SurfaceFlinger（后简称 SF）的客户端，通过 SF 的客户端获取 SurfaceControl，进而获得 Surface
• 通过 SurfaceControl 设置 Layer 层数值(忽略)，通过 Surface 获取 Buffer，锁定 Buffer 并写入 Buffer
• 最后提交 Buffer

本章节主要关注获取 Buffer，锁定（最关键）并写入 Buffer 的过程。而获取 Buffer 只是通过ANativeWindow_Buffer 来创建一个 outBuffer 并传递给 Surface 的 lock 方法，写入 Buffer 只是最终使用 memset 向 Buffer 中写入数据。因此最关键也最繁琐的部分是 Surface 的 lock 方法，主要分析整个方法，对应代码为：

status_t Surface::lock(ANativeWindow_Buffer* outBuffer, ARect* inOutDirtyBounds){
       if (mLockedBuffer != 0) {
           ALOGE("Surface::lock failed, already locked");        return INVALID_OPERATION;    }     //获取显示器一些信息    if (!mConnectedToCpu) {
           int err = Surface::connect(NATIVE_WINDOW_API_CPU);        if (err) {
               return err;        }        // we're intending to do software rendering from this point        setUsage(GRALLOC_USAGE_SW_READ_OFTEN | GRALLOC_USAGE_SW_WRITE_OFTEN);    }     ANativeWindowBuffer* out;    int fenceFd = -1;    //关键点1     status_t err = dequeueBuffer(&out, &fenceFd);    ALOGE_IF(err, "dequeueBuffer failed (%s)", strerror(-err));    if (err == NO_ERROR) {
           sp

     backBuffer(GraphicBuffer::getSelf(out));        const Rect bounds(backBuffer->width, backBuffer->height);         Region newDirtyRegion;        if (inOutDirtyBounds) {
               newDirtyRegion.set(static_cast

     (*inOutDirtyBounds));            newDirtyRegion.andSelf(bounds);        } else {
               newDirtyRegion.set(bounds);        }         // figure out if we can copy the frontbuffer back        const sp

      & frontBuffer(mPostedBuffer);        const bool canCopyBack = (frontBuffer != 0 &&                backBuffer->width  == frontBuffer->width &&                backBuffer->height == frontBuffer->height &&                backBuffer->format == frontBuffer->format);         if (canCopyBack) {
               // copy the area that is invalid and not repainted this round            const Region copyback(mDirtyRegion.subtract(newDirtyRegion));            if (!copyback.isEmpty())                copyBlt(backBuffer, frontBuffer, copyback);        } else {
               // if we can't copy-back anything, modify the user's dirty            // region to make sure they redraw the whole buffer            newDirtyRegion.set(bounds);            mDirtyRegion.clear();            Mutex::Autolock lock(mMutex);            for (size_t i=0 ; i

       = 0) {
                   Region& dirtyRegion(mSlots[backBufferSlot].dirtyRegion);                mDirtyRegion.subtract(dirtyRegion);                dirtyRegion = newDirtyRegion;            }        }         mDirtyRegion.orSelf(newDirtyRegion);        if (inOutDirtyBounds) {
               *inOutDirtyBounds = newDirtyRegion.getBounds();        }         void* vaddr;        //关键点2        status_t res = backBuffer->lockAsync(                GRALLOC_USAGE_SW_READ_OFTEN | GRALLOC_USAGE_SW_WRITE_OFTEN,                newDirtyRegion.bounds(), &vaddr, fenceFd);         if (res != 0) {
               err = INVALID_OPERATION;        } else {
               mLockedBuffer = backBuffer;            //构造 outbuffer 变量            outBuffer->width  = backBuffer->width;            outBuffer->height = backBuffer->height;            outBuffer->stride = backBuffer->stride;            outBuffer->format = backBuffer->format;            outBuffer->bits   = vaddr;//mmap映射地址        }    }    return err;}





二　Surface.dequeueBuffer

Surface 的 dequeueBuffer 方法，代码实现如下：

int Surface::dequeueBuffer(android_native_buffer_t** buffer, int* fenceFd) {
       //...    int buf = -1;    sp

     fence;    //生产者，向SurfaceFlinger发出Buffer申请，得到 buffer，一个mslots数组的元素    status_t result = mGraphicBufferProducer->dequeueBuffer(&buf, &fence, swapIntervalZero,            reqW, reqH, reqFormat, reqUsage);    //...    if ((result & IGraphicBufferProducer::BUFFER_NEEDS_REALLOCATION) || gbuf == 0) {
           //向SF请求并返回fd，然后在APP这边mmap        result = mGraphicBufferProducer->requestBuffer(buf, &gbuf);        if (result != NO_ERROR) {
               mGraphicBufferProducer->cancelBuffer(buf, fence);            return result;        }    }    //...     *buffer = gbuf.get();    return OK;}


这里关注两个关键方法，mGraphicBufferProducer 的 dequeueBuffer 方法和 mGraphicBufferProducer 的 requestBuffer 方法。

2.1 GraphicBufferProducer.dequeueBuffer

status_t BufferQueueProducer::dequeueBuffer(int *outSlot,        sp

     *outFence, bool async,        uint32_t width, uint32_t height, uint32_t format, uint32_t usage) {
       //...    {
    // Autolock scope        //...        int found;        //得到空闲的slots元素并锁定        status_t status = waitForFreeSlotThenRelock("dequeueBuffer", async,                &found, &returnFlags);        if (status != NO_ERROR) {
               return status;        }        //...    } // Autolock scope    //如果需要则重新分配    if (returnFlags & BUFFER_NEEDS_REALLOCATION) {
           status_t error;        BQ_LOGV("dequeueBuffer: allocating a new buffer for slot %d", *outSlot);        sp

      graphicBuffer(mCore->mAllocator->createGraphicBuffer(                    width, height, format, usage, &error));        if (graphicBuffer == NULL) {
               BQ_LOGE("dequeueBuffer: createGraphicBuffer failed");            return error;        }         {
    // Autolock scope            Mutex::Autolock lock(mCore->mMutex);             if (mCore->mIsAbandoned) {
                   BQ_LOGE("dequeueBuffer: BufferQueue has been abandoned");                return NO_INIT;            }             mSlots[*outSlot].mFrameNumber = UINT32_MAX;            mSlots[*outSlot].mGraphicBuffer = graphicBuffer;        } // Autolock scope    }     if (attachedByConsumer) {
           returnFlags |= BUFFER_NEEDS_REALLOCATION;    }    //...    return returnFlags;}



这里专注两段代码：waitForFreeSlotThenRelock 方法和 graphicBuffer 的创建。

2.1.1 GraphicBufferProducer.waitForFreeSlotThenRelock

status_t BufferQueueProducer::waitForFreeSlotThenRelock(const char* caller,        bool async, int* found, status_t* returnFlags) const {
       bool tryAgain = true;    while (tryAgain) {
           if (mCore->mIsAbandoned) {
               BQ_LOGE("%s: BufferQueue has been abandoned", caller);            return NO_INIT;        }         //...        // Look for a free buffer to give to the client        *found = BufferQueueCore::INVALID_BUFFER_SLOT;        int dequeuedCount = 0;        int acquiredCount = 0;        for (int s = 0; s < maxBufferCount; ++s) {
               switch (mSlots[s].mBufferState) {
                   case BufferSlot::DEQUEUED:                    ++dequeuedCount;                    break;                case BufferSlot::ACQUIRED:                    ++acquiredCount;                    break;                case BufferSlot::FREE:                    // We return the oldest of the free buffers to avoid                    // stalling the producer if possible, since the consumer                    // may still have pending reads of in-flight buffers                    if (*found == BufferQueueCore::INVALID_BUFFER_SLOT ||                            mSlots[s].mFrameNumber < mSlots[*found].mFrameNumber) {
                           *found = s;                    }                    break;                default:                    break;            }        }        //...    } // while (tryAgain)    return NO_ERROR;}

最为关键的就是上面这段，主要功能是在 mSlots 数组中找到已经 FREE 的空余 Buffer 并通过下标方式返回（下标为上段代码中的 found）

2.1.2 graphicBuffer的创建

在创建 graphicBuffer 时，这里传递了一个参数，是这样一句话：

mCore->mAllocator->createGraphicBuffer(width, height, format, usage, &error)

这里主要是调用了 BufferQueueCore 中的成员变量 mAllocator（IGraphicBufferAlloc类型）的 createGraphicBuffer 方法，这段代码比较简单，最终返回一个 GraphicBuffer 类型的变量，代码如下：

sp

     GraphicBufferAlloc::createGraphicBuffer(uint32_t w, uint32_t h,        PixelFormat format, uint32_t usage, status_t* error) {
       sp

      graphicBuffer(new GraphicBuffer(w, h, format, usage));    status_t err = graphicBuffer->initCheck();    *error = err;    if (err != 0 || graphicBuffer->handle == 0) {
           if (err == NO_MEMORY) {
               GraphicBuffer::dumpAllocationsToSystemLog();        }        ALOGE("GraphicBufferAlloc::createGraphicBuffer(w=%d, h=%d) "             "failed (%s), handle=%p",                w, h, strerror(-err), graphicBuffer->handle);        return 0;    }    return graphicBuffer;}



之后我们详细分析下这里 sp graphicBuffer(…) 对应的构造器，代码如下：

GraphicBuffer::GraphicBuffer(uint32_t w, uint32_t h,         PixelFormat reqFormat, uint32_t reqUsage)    : BASE(), mOwner(ownData), mBufferMapper(GraphicBufferMapper::get()),      mInitCheck(NO_ERROR), mId(getUniqueId()){
       width  = w;    height = h;    stride = inStride;    format = inFormat;    usage  = 0;    handle = NULL;    mInitCheck = initSize(w, h, reqFormat, reqUsage);}

这里继续分析 initSize，代码如下：

status_t GraphicBuffer::initSize(uint32_t w, uint32_t h, PixelFormat format,        uint32_t reqUsage){
       //打开 Gralloc 模块    GraphicBufferAllocator& allocator = GraphicBufferAllocator::get();    //调用 HAL 模块的 alloc 函数    status_t err = allocator.alloc(w, h, format, reqUsage, &handle, &stride);    if (err == NO_ERROR) {
           this->width  = w;        this->height = h;        this->format = format;        this->usage  = reqUsage;    }    return err;}

这里主要是调用了 gralloc 模块，获取 allocator 的代码如下：

GraphicBufferAllocator::GraphicBufferAllocator()    : mAllocDev(0){
       hw_module_t const* module;    int err = hw_get_module(GRALLOC_HARDWARE_MODULE_ID, &module);    ALOGE_IF(err, "FATAL: can't find the %s module", GRALLOC_HARDWARE_MODULE_ID);    if (err == 0) {
           gralloc_open(module, &mAllocDev);    }}

之后使用 allocator.alloc 来申请内存。代码如下：

status_t GraphicBufferAllocator::alloc(uint32_t w, uint32_t h, PixelFormat format,        int usage, buffer_handle_t* handle, int32_t* stride){
       if (!w || !h)        w = h = 1;     // we have a h/w allocator and h/w buffer is requested    status_t err;         err = mAllocDev->alloc(mAllocDev, w, h, format, usage, handle, stride);        if (err == NO_ERROR) {
           Mutex::Autolock _l(sLock);        KeyedVector

    & list(sAllocList);        int bpp = bytesPerPixel(format);        if (bpp < 0) {
               // probably a HAL custom format. in any case, we don't know            // what its pixel size is.            bpp = 0;        }        alloc_rec_t rec;        rec.w = w;        rec.h = h;        rec.s = *stride;        rec.format = format;        rec.usage = usage;        rec.size = h * stride[0] * bpp;        list.add(*handle, rec);    }     return err;}


这里调用了 mAllocDev->alloc 方法，再往下就是 HAL 层 Gralloc 模块的调用了，在 Gralloc 模块初始化的时候，代码如下：

int gralloc_device_open(const hw_module_t* module, const char* name,        hw_device_t** device){
       int status = -EINVAL;    if (!strcmp(name, GRALLOC_HARDWARE_GPU0)) {
           gralloc_context_t *dev;        dev = (gralloc_context_t*)malloc(sizeof(*dev));         /* initialize our state here */        memset(dev, 0, sizeof(*dev));         /* initialize the procs */        dev->device.common.tag = HARDWARE_DEVICE_TAG;        dev->device.common.version = 0;        dev->device.common.module = const_cast

    (module);        dev->device.common.close = gralloc_close;         dev->device.alloc   = gralloc_alloc;        dev->device.free    = gralloc_free;         *device = &dev->device.common;        status = 0;    } else {
           status = fb_device_open(module, name, device);    }    return status;}


所以这里的 mAllocDev->alloc 方法 就是 Gralloc 模块对应的 gralloc_alloc 方法，代码如下：

static int gralloc_alloc(alloc_device_t* dev,        int w, int h, int format, int usage,        buffer_handle_t* pHandle, int* pStride){
       //...    int err;    if (usage & GRALLOC_USAGE_HW_FB) {
           err = gralloc_alloc_framebuffer(dev, size, usage, pHandle);    } else {
           err = gralloc_alloc_buffer(dev, size, usage, pHandle);    }    //...    *pStride = stride;    return 0;}

因为是申请 buffer，所以这里选择的是 gralloc_alloc_buffer，继续分析代码，如下所示：

static int gralloc_alloc_buffer(alloc_device_t* dev,        size_t size, int /*usage*/, buffer_handle_t* pHandle){
       //...    fd = ashmem_create_region("gralloc-buffer", size);    //...    if (err == 0) {
           private_handle_t* hnd = new private_handle_t(fd, size, 0);        gralloc_module_t* module = reinterpret_cast

    (                dev->common.module);        err = mapBuffer(module, hnd);        if (err == 0) {
               *pHandle = hnd;        }    }    return err;}


这里主要通过 ashmem 共享内存机制来分配内存 Buffer，得到 fd；同时使用 fd 和 mmap 生成的 Buffer 一同来构造一个 handle。这其中 mmap 生成的地址直接供 SF 使用。

2.2 GraphicBufferProducer.requestBuffer

此时 SF 已经得到了 handle（要申请的 Buffer 的句柄 fd 和 mmap 的首地址的集合）。接下来调用 requestBuffer 使用 binder 机制把 SF 的 handle 传递给 APP（这个分析过程中忽略了 Binder 通信部分的分析，Binder 通信部分详见系列文章链接：专题分纲目录 android 系统核心机制 binder）。BufferQueueProducer 的 requestBuffer 代码实现如下：

status_t BufferQueueProducer::requestBuffer(int slot, sp

    * buf) {
       Mutex::Autolock lock(mCore->mMutex);	//...    mSlots[slot].mRequestBufferCalled = true;    *buf = mSlots[slot].mGraphicBuffer;    return NO_ERROR;}


2.3 总结

APP 对应一个 client，一个 SurfaceControl 对应一个 Layer，每个 Surface 都对应一个 mslots 数组（mslots 数组中共有64个元素，每个元素中包含一个 GraphicBuffer 和一个 handle，包含 fd 和 mmap 的映射地址）。Surface 获得 Buffer 的过程如下：

• 首先执行 dequeueBuffer。若 Surface 无 Buffer，则向生产者 producer（GraphicBufferProducer 类对象，最终通过 SF 操作）申请，查看 mslots 有无余项，若有直接返回，若无则向 Gralloc HAL 申请，得到一个 handle（要申请的 Buffer 的句柄 fd 和 mmap 的首地址的集合）
• 其次执行 requestBuffer，APP（Client 端）通过该方法将 SF 获得的 handle 转移到 Client 端的 handle 中
• APP 获得 fd，mmap 获得地址（通过 Gralloc HAL 来执行 mmap），接下来向 Buffer 中写入内容即可

三　GraphicBuffer.lockAsync

status_t GraphicBuffer::lockAsync(uint32_t usage, const Rect& rect, void** vaddr,     int fenceFd){
       //...    status_t res = getBufferMapper().lockAsync(handle, usage, rect, vaddr, fenceFd);    return res;}

继续分析 GraphicBufferMapper 的 lockAsync 方法，代码实现如下：

status_t GraphicBufferMapper::lockAsync(buffer_handle_t handle,        int usage, const Rect& bounds, void** vaddr, int fenceFd){
       status_t err;    if (mAllocMod->common.module_api_version >= GRALLOC_MODULE_API_VERSION_0_3) {
           err = mAllocMod->lockAsync(mAllocMod, handle, usage,                bounds.left, bounds.top, bounds.width(), bounds.height(),                vaddr, fenceFd);    } else {
           sync_wait(fenceFd, -1);        close(fenceFd);        err = mAllocMod->lock(mAllocMod, handle, usage,                bounds.left, bounds.top, bounds.width(), bounds.height(),                vaddr);    }    return err;}

这里继续分析会进入到 HAL 层，对应的是 Gralloc 模块的 gralloc_lock 函数，代码实现如下：

int gralloc_lock(gralloc_module_t const* /*module*/,        buffer_handle_t handle, int /*usage*/,        int /*l*/, int /*t*/, int /*w*/, int /*h*/,        void** vaddr){
       if (private_handle_t::validate(handle) < 0)        return -EINVAL;     private_handle_t* hnd = (private_handle_t*)handle;    *vaddr = (void*)hnd->base;    return 0;}

这里主要是将 handle->base 赋值给 backBuffer->lockAsync 的参数 vaddr，这个同样也是 APP 中使用 mmap 映射的地址。最后会通过 outBuffer->bits = vaddr 这个赋值操作用 backBuffer 的成员变量初始化 outBuffer。
