准备

IDE：

Android Studio 4.1.1Build #AI-201.8743.12.41.6953283, built on November 5, 2020Runtime version: 1.8.0_242-release-1644-b01 amd64VM: OpenJDK 64-Bit Server VM by JetBrains s.r.oWindows 10 10.0

Android Virtual Devices：

Name: Pixel_2_API_28CPU/ABI: Google Play Intel Atom (x86)Path: C:\Users\86188\.android\avd\Pixel_2_API_28.avdTarget: google_apis_playstore [Google Play] (API level 28)Skin: pixel_2SD Card: 512Mfastboot.chosenSnapshotFile: runtime.network.speed: fullhw.accelerometer: yeshw.device.name: pixel_2hw.lcd.width: 1080hw.initialOrientation: Portraitimage.androidVersion.api: 28tag.id: google_apis_playstorehw.mainKeys: nohw.camera.front: emulatedavd.ini.displayname: Pixel 2 API 28hw.gpu.mode: autohw.ramSize: 1536PlayStore.enabled: truefastboot.forceColdBoot: nohw.cpu.ncore: 4hw.keyboard: yeshw.sensors.proximity: yeshw.dPad: nohw.lcd.height: 1920vm.heapSize: 256skin.dynamic: yeshw.device.manufacturer: Googlehw.gps: yeshw.audioInput: yesimage.sysdir.1: system-images\android-28\google_apis_playstore\x86\showDeviceFrame: yeshw.camera.back: virtualsceneAvdId: Pixel_2_API_28hw.lcd.density: 420hw.arc: falsehw.device.hash2: MD5:55acbc835978f326788ed66a5cd4c9a7fastboot.forceChosenSnapshotBoot: nofastboot.forceFastBoot: yeshw.trackBall: nohw.battery: yeshw.sdCard: yestag.display: Google Playruntime.network.latency: nonedisk.dataPartition.size: 6442450944hw.sensors.orientation: yesavd.ini.encoding: UTF-8hw.gpu.enabled: yes

注意：以下示例仅在安卓虚拟设备上运行测试，并没有在真实的设备上运行测试。

项目

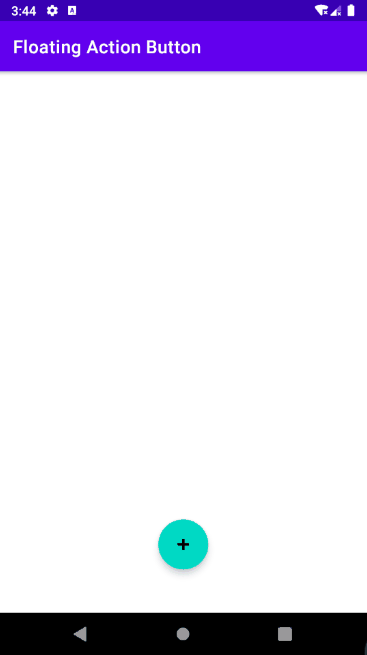

效果：

新建项目，选择 Empty Activity，在配置项目时，Minimum SDK 选择 API 16: Android 4.1 (Jelly Bean)

编辑 src\main\res\layout\activity_main.xml，添加 FloatingActionButton 组件（第 9 ~ 18 行）：

编辑 MainActivity（第 18、21 ~ 30 行）：

package com.mk;import androidx.appcompat.app.AppCompatActivity;import android.os.Bundle;import android.view.View;import com.google.android.material.floatingactionbutton.FloatingActionButton;import com.google.android.material.snackbar.Snackbar;public class MainActivity extends AppCompatActivity {       @Override    protected void onCreate(Bundle savedInstanceState) {           super.onCreate(savedInstanceState);        setContentView(R.layout.activity_main);        initView();    }    private void initView() {           FloatingActionButton fab = findViewById(R.id.floatingActionButton);        fab.setOnClickListener(new View.OnClickListener() {               @Override            public void onClick(View view) {                   Snackbar.make(view, "Here's a Snackbar", Snackbar.LENGTH_LONG)                        .setAction("Action", null).show();            }        });    }}
