STM32F429第九篇之stm32f4xx_hal_rcc_ex
发布日期:2021-05-14 11:31:19 浏览次数:21 分类:精选文章

本文共 8009 字,大约阅读时间需要 26 分钟。

文章目录

前言

本文主要介绍STM32F429的HAL库中的RCC的剩余函数的用法,主要参考资料为:

  • Description of STM32F4 HAL and low-layer drivers
  • RM0090 Reference manual

本文承接上文<>

本文使用硬件库版本为:

  • STM32Cube_FW_F4_V1.11.0

在HAL库中,名称以_ex为后缀的文件表明该文件中的函数并非通用函数,与具体的硬件支持有关。

这部分函数与RCC时钟频率控制相关。

函数

HAL_RCCEx_PeriphCLKConfig

函数原型

HAL_StatusTypeDef HAL_RCCEx_PeriphCLKConfig (RCC_PeriphCLKInitTypeDef * PeriphClkInit)

通过指定参数初始化外设时钟。

注意

  • 当使用HAL_RCCEx_PeriphCLKConfig()配置RTC时钟源的时候必须小心,因为此时将会把备份域重置,从而,RTC寄存器和RCC_BDCR寄存器同样会被设置为复位值。

参数

  • PeriphClkInit:结构体指针,包含外设时钟的配置信息(I2S, SAI, LTDC, RTC 和 TIM)

返回类型

  • :HAL状态定义。

HAL_RCCEx_GetPeriphCLKConfig

函数原型

void HAL_RCCEx_GetPeriphCLKConfig (RCC_PeriphCLKInitTypeDef * PeriphClkInit)

根据RCC配置寄存器的参数来填充RCC_PeriphCLKInitTypeDef。

参数

  • PeriphClkInit:指向结构体 的指针。

HAL_RCCEx_GetPeriphCLKFreq

函数模型

uint32_t HAL_RCCEx_GetPeriphCLKFreq (uint32_t PeriphClk)

返回给定的外设时钟频率

注意

  • 若函数返回0,则说明该外设时钟参数并不支持此API。
  • 并不是所有的硬件都支持此函数,在该版本API中,只有446支持此函数。

参数

  • PeriphClk:外设时钟参数可以为:
#define RCC_PERIPHCLK_SAI1            ((uint32_t)0x00000004U)#define RCC_PERIPHCLK_SAI2            ((uint32_t)0x00000008U)

返回值

  • 频率值:单位为kHz。

结构体

HAL_StatusTypeDef

/**   * @brief  HAL Status structures definition    */  typedef enum {      HAL_OK       = 0x00U,  HAL_ERROR    = 0x01U,  HAL_BUSY     = 0x02U,  HAL_TIMEOUT  = 0x03U} HAL_StatusTypeDef;

RCC_PeriphCLKInitTypeDef

typedef struct{       uint32_t PeriphClockSelection; /*!< The Extended Clock to be configured.                                      This parameter can be a value of @ref RCCEx_Periph_Clock_Selection */  RCC_PLLI2SInitTypeDef PLLI2S;  /*!< PLL I2S structure parameters.                                       This parameter will be used only when PLLI2S is selected as Clock Source I2S or SAI */  RCC_PLLSAIInitTypeDef PLLSAI;  /*!< PLL SAI structure parameters.                                       This parameter will be used only when PLLI2S is selected as Clock Source SAI or LTDC */  uint32_t PLLI2SDivQ;           /*!< Specifies the PLLI2S division factor for SAI1 clock.                                      This parameter must be a number between Min_Data = 1 and Max_Data = 32                                      This parameter will be used only when PLLI2S is selected as Clock Source SAI */  uint32_t PLLSAIDivQ;           /*!< Specifies the PLLI2S division factor for SAI1 clock.                                      This parameter must be a number between Min_Data = 1 and Max_Data = 32                                      This parameter will be used only when PLLSAI is selected as Clock Source SAI */  uint32_t PLLSAIDivR;           /*!< Specifies the PLLSAI division factor for LTDC clock.                                      This parameter must be one value of @ref RCCEx_PLLSAI_DIVR */  uint32_t RTCClockSelection;      /*!< Specifies RTC Clock Prescalers Selection.                                       This parameter can be a value of @ref RCC_RTC_Clock_Source */  uint8_t TIMPresSelection;      /*!< Specifies TIM Clock Prescalers Selection.                                       This parameter can be a value of @ref RCCEx_TIM_PRescaler_Selection */#if defined(STM32F469xx) || defined(STM32F479xx)  uint32_t Clk48ClockSelection;  /*!< Specifies CK48 Clock Selection this clock used OTG FS, SDIO and RNG clocks.                                       This parameter can be a value of @ref RCCEx_CK48_Clock_Source */  uint32_t SdioClockSelection;   /*!< Specifies SDIO Clock Source Selection.                                       This parameter can be a value of @ref RCCEx_SDIO_Clock_Source */  #endif /* STM32F469xx || STM32F479xx */  }RCC_PeriphCLKInitTypeDef;

PeriphClockSelection(外设时钟选择)

被配置的时钟选择,可以在以下范围中选择:

/*-------- Peripheral Clock source for STM32F42xxx/STM32F43xxx ---------------*/#if defined(STM32F427xx) || defined(STM32F437xx) || defined(STM32F429xx) || defined(STM32F439xx)#define RCC_PERIPHCLK_I2S             ((uint32_t)0x00000001U)#define RCC_PERIPHCLK_SAI_PLLI2S      ((uint32_t)0x00000002U)#define RCC_PERIPHCLK_SAI_PLLSAI      ((uint32_t)0x00000004U)#define RCC_PERIPHCLK_LTDC            ((uint32_t)0x00000008U)#define RCC_PERIPHCLK_TIM             ((uint32_t)0x00000010U)#define RCC_PERIPHCLK_RTC             ((uint32_t)0x00000020U)#define RCC_PERIPHCLK_PLLI2S          ((uint32_t)0x00000040U)#endif /* STM32F427xx || STM32F437xx || STM32F429xx || STM32F439xx *//*----------------------------------------------------------------------------*/

PLLI2S(PLL I2S 结构体参数)

只有当PLLI2S用作时钟源时,该参数才有效。参数的具体定义如下:

/**   * @brief  PLLI2S Clock structure definition    */typedef struct{       uint32_t PLLI2SN;    /*!< Specifies the multiplication factor for PLLI2S VCO output clock.                            This parameter must be a number between Min_Data = 50 and Max_Data = 432.                            This parameter will be used only when PLLI2S is selected as Clock Source I2S or SAI */  uint32_t PLLI2SR;    /*!< Specifies the division factor for I2S clock.                            This parameter must be a number between Min_Data = 2 and Max_Data = 7.                             This parameter will be used only when PLLI2S is selected as Clock Source I2S or SAI */  uint32_t PLLI2SQ;    /*!< Specifies the division factor for SAI1 clock.                            This parameter must be a number between Min_Data = 2 and Max_Data = 15.                             This parameter will be used only when PLLI2S is selected as Clock Source SAI */}RCC_PLLI2SInitTypeDef;

PLLSAI(PLL SAI 结构体参数)

只有当PPLLSAI用作时钟源时,该参数才有效。具体定义如下:

/**   * @brief  PLLSAI Clock structure definition    */typedef struct{       uint32_t PLLSAIN;    /*!< Specifies the multiplication factor for PLLI2S VCO output clock.                            This parameter must be a number between Min_Data = 50 and Max_Data = 432.                            This parameter will be used only when PLLSAI is selected as Clock Source SAI or LTDC */ #if defined(STM32F469xx) || defined(STM32F479xx)  uint32_t PLLSAIP;    /*!< Specifies division factor for OTG FS and SDIO clocks.                            This parameter is only available in STM32F469xx/STM32F479xx devices.                            This parameter must be a value of @ref RCCEx_PLLSAIP_Clock_Divider  */  #endif /* STM32F469xx || STM32F479xx */                                   uint32_t PLLSAIQ;    /*!< Specifies the division factor for SAI1 clock.                            This parameter must be a number between Min_Data = 2 and Max_Data = 15.                            This parameter will be used only when PLLSAI is selected as Clock Source SAI or LTDC */                                uint32_t PLLSAIR;    /*!< specifies the division factor for LTDC clock                            This parameter must be a number between Min_Data = 2 and Max_Data = 7.                            This parameter will be used only when PLLSAI is selected as Clock Source LTDC */}RCC_PLLSAIInitTypeDef;

外设时钟管理

这部分内容主要存在于stm32f4xx_hal_rcc.h和stm32f4xx_hal_rcc_ex.h中。通过宏定义的形式,管理外设的时钟。其主要形式如下:

//其中XXX为外设的名称。#define __HAL_RCC_XXX_CLK_ENABLE() 		//外设时钟使能#define __HAL_RCC_XXX_CLK_DISABLE() 	//外设时钟禁止#define __HAL_RCC_XXX_IS_CLK_ENABLED()	//外设时钟是否使能#define __HAL_RCC_XXX_IS_CLK_DISABLED()	//外设时钟是否禁止

其中,外设时钟使能宏的实现方式相对比较复杂,详细代码如下(以GPIOA外设为例):

#define __HAL_RCC_GPIOA_CLK_ENABLE()   do { \                                        __IO uint32_t tmpreg = 0x00U; \                                        SET_BIT(RCC->AHB1ENR, RCC_AHB1ENR_GPIOAEN);\                                        /* Delay after an RCC peripheral clock enabling */ \                                        tmpreg = READ_BIT(RCC->AHB1ENR, RCC_AHB1ENR_GPIOAEN);\                                        UNUSED(tmpreg); \                                          } while(0)
  1. do{ }while(0)语句表示该括号中的代码必然执行,且执行的次数为1次。
  2. 定义了uint32_t型变量tmpreg
  3. 将 外设对应寄存器位 置1,即使能对应外设的时钟,此语句为该功能的核心语句。
  4. 将写入的寄存器位读出,且赋值在tmpreg变量中。此处,并非真的需要获取寄存器值,而是为了将外设时钟使能后,延时一段时间。
  5. 因为赋值后的tmpreg并未使用,仅仅为了延时作用,所以,最后添加一句UNUSED(tmpreg);使得编译器在此处不报警告。

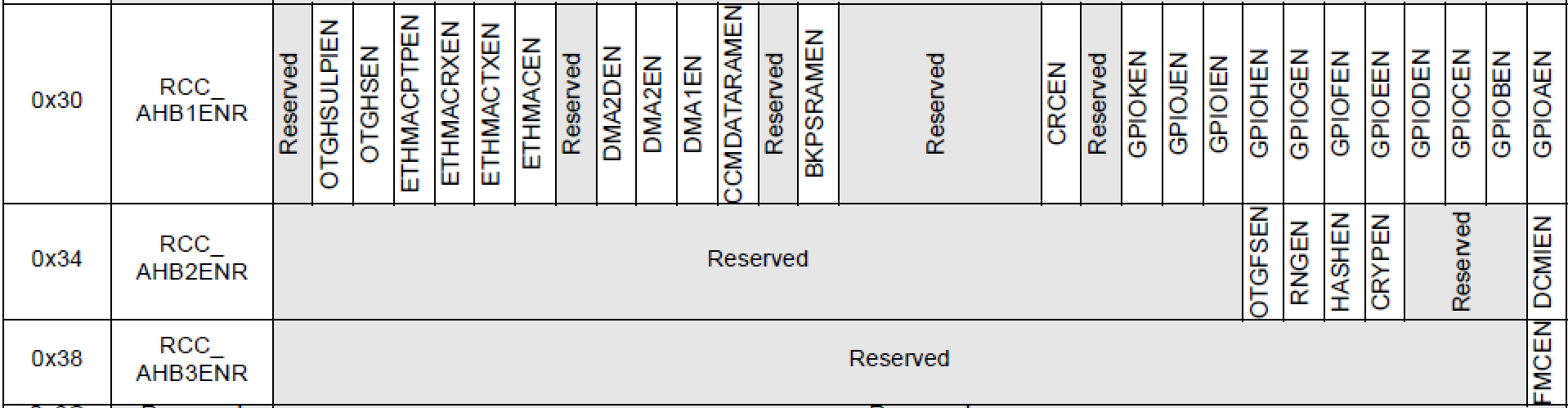

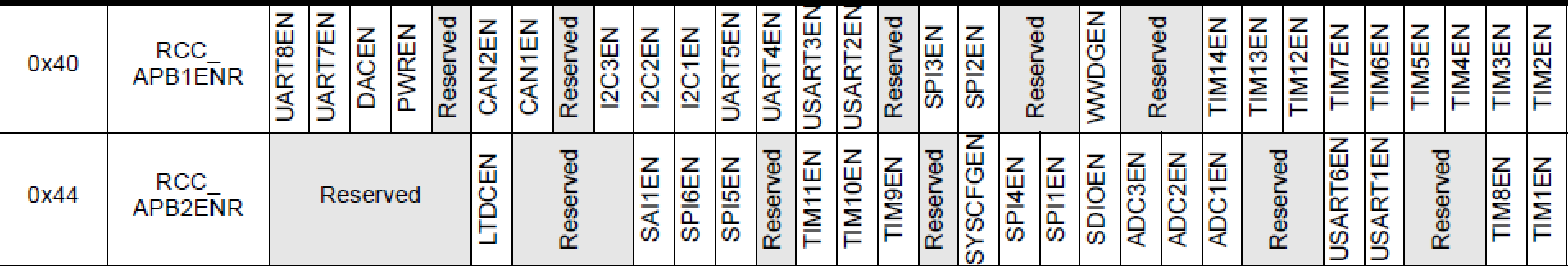

时钟被管理的外设是挂载在AHB和APB总线的外设。具体如下:

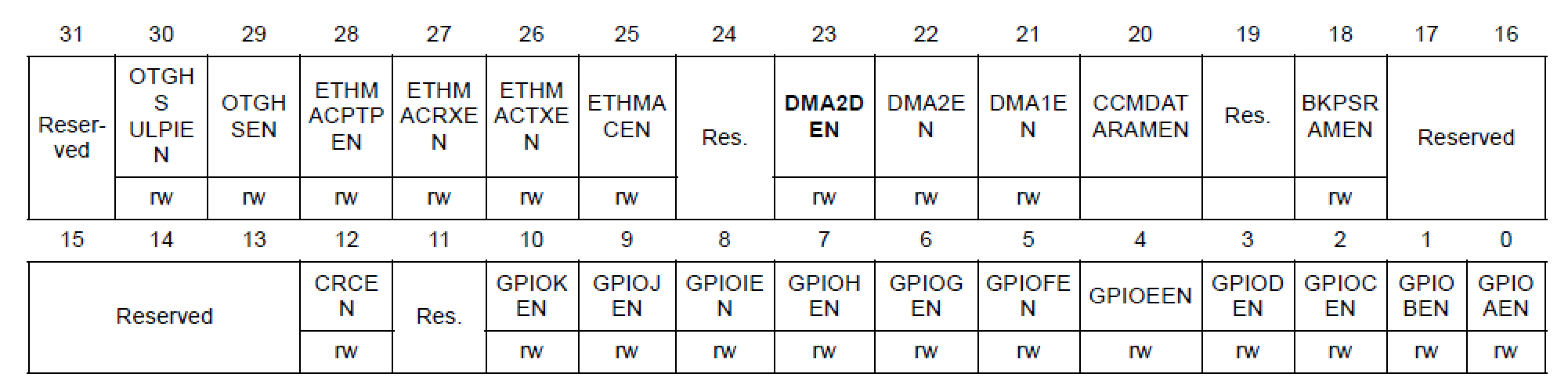

AHB1

在这里插入图片描述

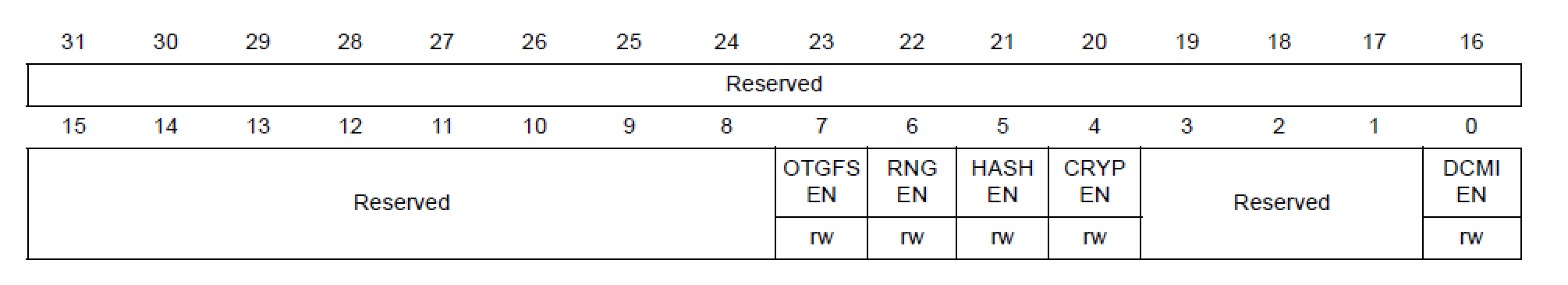

AHB2

在这里插入图片描述

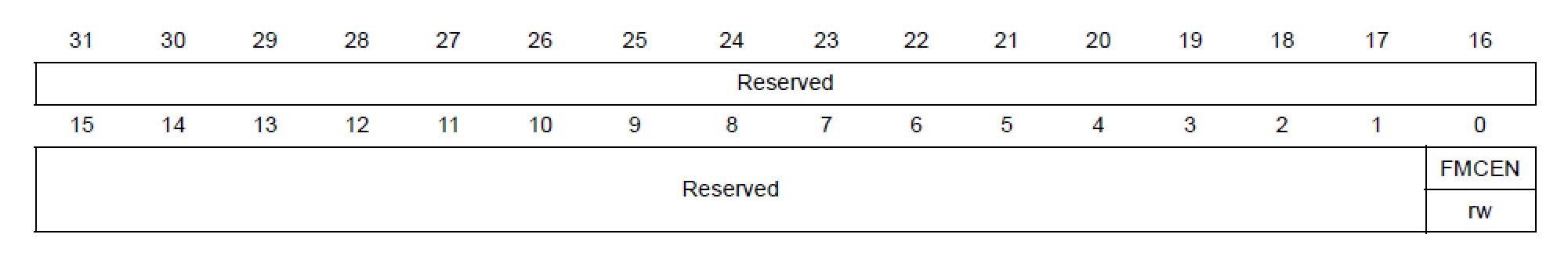

AHB3

在这里插入图片描述

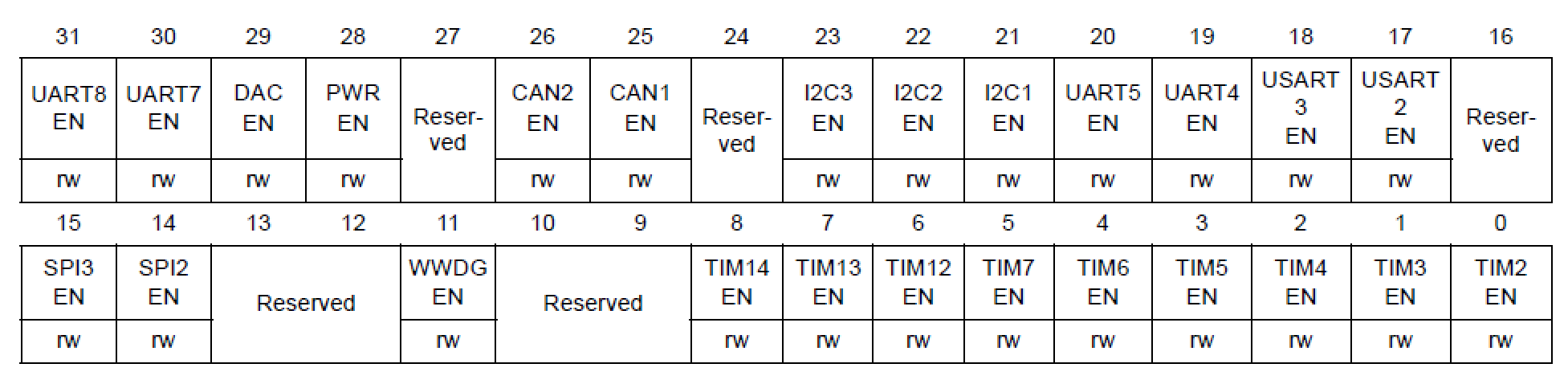

APB1

在这里插入图片描述

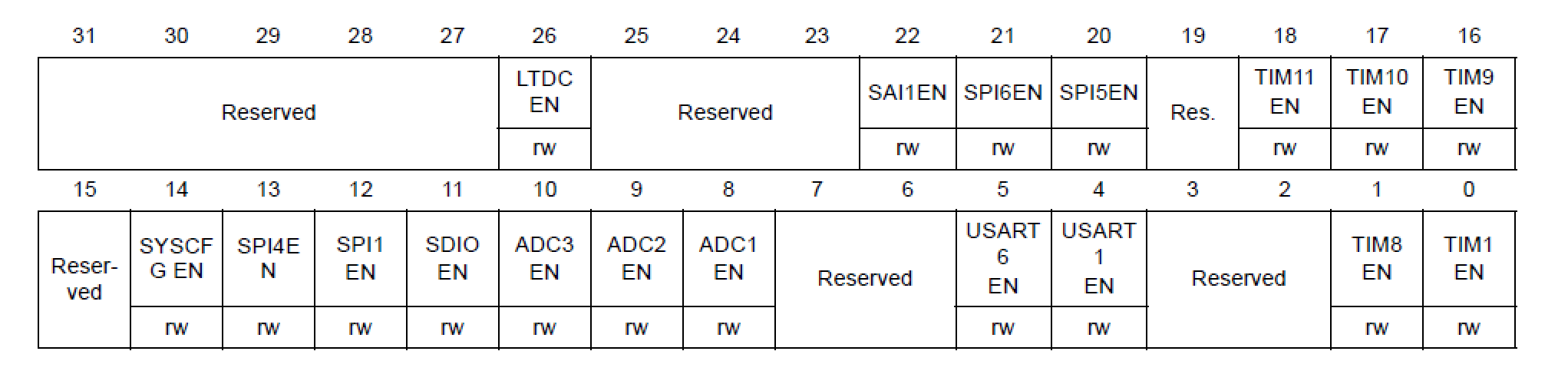

APB2

在这里插入图片描述

更多详细信息可以参考手册 < RM0090 Reference manual>

在这里插入图片描述

在这里插入图片描述
