本文共 9913 字，大约阅读时间需要 33 分钟。

一、搭建基础的视频显示UI（其中时间进度条、音量进度条、及其对应的显示文字UI可以不用搭建）

注意：要想实现鼠标移入显示进度条、音量和时间控件，需要给视频显示控件RawImage添加BoxCollider 2D碰撞体，且调整碰撞体大小为自己想要触发的区域即可。

二、编写视频控制脚本

/****	Title："可视化" 项目*		主题：视频播放控制*	Description：*		功能：*		    1、加载本地视频进行播放、暂停、停止*		    2、获取视频总时长、当前播放时长（对应进度条）*		    3、实现进度条控制视频音量大小*		    4、实现鼠标进入显示进度条、音量和时间控件*		    5、实现鼠标退出隐藏进度条、音量和时间控件*	Date：2019*	Version：0.1版本*	Author：Coffee*	Modify Recoder：*/using Global;using kernal;using System.Collections;using System.Collections.Generic;using System.IO;using UnityEngine;using UnityEngine.UI;using UnityEngine.Video;namespace Control{	public class Ctrl_VideosOperation : MonoBehaviour	{        #region   视频组件        #region   基础组件        //视频播放组件        private VideoPlayer videoPlayer;                                        //视频组件        private AudioSource audioSource;                                        //音频组件        private RawImage rawImage;                                              //显示组件        public bool satrtplay = false;                                          //开始播放视频开关        private string videoPath = string.Empty;                                //视频路径        #endregion        #region   拓展组件        //视频控制器        public Slider m_sliderVideo;        //音量控制器        public Slider m_sliderSource;        //视频总时长        public Text m_textCount;        //当前视频时间        public Text m_textTime;        //是否拿到视频总时长        public bool m_isShow;        //视频是否播放完成        private bool m_isVideo;        //时 分的转换        private int hour, mint;        private float m_time;        private float m_timeCount;        private float m_timeCurrent;        #endregion        #endregion        void Awake()        {            //初始化配置            InitSettings();        }        private void Start()        {            if (m_sliderSource != null)            {                //调节音量方法                m_sliderSource.onValueChanged.AddListener(delegate { ChangeSource(m_sliderSource.value); });            }                    }        private void Update()        {            if (satrtplay && videoPlayer.isPlaying)            {                rawImage.texture = videoPlayer.texture;                if (m_sliderVideo!=null)                {                    //帧数/帧速率=总时长    如果是本地直接赋值的视频，我们可以通过VideoClip.length获取总时长                    m_sliderVideo.maxValue = (videoPlayer.frameCount / videoPlayer.frameRate);                    m_time = m_sliderVideo.maxValue;                    hour = (int)m_time / 60;                    mint = (int)m_time % 60;                    m_textCount.text = string.Format("{0:D2}:{1:D2}", hour.ToString(), mint.ToString());                    //m_isShow = !m_isShow;                    m_isVideo = false;                }                            }            if (satrtplay)            {                if (m_sliderVideo!=null)                {                    if (Mathf.Abs((int)videoPlayer.time - (int)m_sliderVideo.maxValue) == 0)                    {                        videoPlayer.frame = (long)videoPlayer.frameCount;                        videoPlayer.Pause();                        m_isVideo = true;                        satrtplay = false;                        hour = 0;                        mint = 0;                        return;                    }                    else if (videoPlayer.isPlaying)                    {                        m_time = (float)videoPlayer.time;                        hour = (int)m_time / 60;                        mint = (int)m_time % 60;                        m_textTime.text = string.Format("{0:D2}:{1:D2}", hour.ToString(), mint.ToString());                        m_sliderVideo.value = m_time;                    }                }                            }        }        #region   公有方法        /// <summary>        /// 加载封面        /// </summary>        public void LoadFirstPicture()        {            Play();            Invoke("Pause", Global_Parameter.INTERVAL_TIME_0DOT2);        }        /// <summary>        /// 获取本地视频        /// </summary>        /// <param name="videoPath">视频路径</param>        /// <returns></returns>        public bool LoadVideo(string videoPath)        {            bool success = false;            if (!string.IsNullOrWhiteSpace(videoPath))            {                //设置视频组件格式                videoPlayer.source = VideoSource.Url;                //获取视频                videoPlayer.url = "file:///" + videoPath;                this.videoPath = videoPath;                success = true;            }            return success;        }        /// <summary>        /// 播放        /// </summary>        /// <returns>false:表示没有指定装载视频（或装载失败）</returns>        public bool  Play()        {            bool success = false;            if (!string.IsNullOrWhiteSpace(videoPath))            {                //设置音效大小                audioSource.volume = Global_Parameter.INTERVAL_TIME_0DOT5;                if (m_sliderSource!=null)                {                    m_sliderSource.value = audioSource.volume;                }                                videoPlayer.Play();                success = true;            }            return success;        }                /// <summary>        /// 暂停        /// </summary>        /// <returns>false:表示没有指定装载视频（或装载失败）</returns>        public bool Pause()        {            bool success = false;            if (!string.IsNullOrWhiteSpace(videoPath))            {                videoPlayer.Pause();                success = true;            }            return success;        }                /// <summary>        /// 停止        /// </summary>        /// <returns>false:表示没有指定装载视频（或装载失败）</returns>        public bool  Stop()        {            bool success = false;            if (!string.IsNullOrWhiteSpace(videoPath))            {                videoPlayer.Stop();                success = true;                // 加载封面                LoadFirstPicture();            }            return success;        }        /// <summary>        /// 改变视频进度        /// </summary>        /// <param name="value"></param>        public void ChangeVideo()        {            if (videoPlayer.isPrepared)            {                videoPlayer.time = m_sliderVideo.value;                //Debug.Log((long)value);                //Debug.Log("VideoPlayer Time:" + m_vPlayer.time);                m_time = (float)videoPlayer.time;                hour = (int)m_time / 60;                mint = (int)m_time % 60;                m_textTime.text = string.Format("{0:D2}:{1:D2}", hour.ToString(), mint.ToString());            }            if (m_isVideo == false)            {                m_isVideo = true;            }        }        #endregion        #region   私有方法        /// <summary>        /// 初始化配置        /// </summary>        private void InitSettings()        {            //添加音频、视频组件            audioSource = this.gameObject.AddComponent<AudioSource>();            videoPlayer = this.gameObject.AddComponent<VideoPlayer>();            rawImage = this.gameObject.GetComponent<RawImage>();            //这3个参数不设置也会没声音 唤醒时就播放关闭            videoPlayer.playOnAwake = false;            audioSource.playOnAwake = false;            audioSource.volume = 0;            audioSource.Pause();                    }        /// <summary>        /// 改变音量大小        /// </summary>        /// <param name="value"></param>        private void ChangeSource(float value)        {            audioSource.volume = value;            //text.text = string.Format("{0:0}%", value * 100);        }        /// <summary>        /// 鼠标进入显示视频拓展内容（显示进度条、音量和时间）        /// </summary>        private void OnMouseEnter()        {            ShowVideoExternInfo(true);        }        /// <summary>        /// 鼠标退出显示视频拓展内容（隐藏进度条、音量和时间）        /// </summary>        private void OnMouseExit()        {            ShowVideoExternInfo(false);        }        //是否显视频的拓展内容（显示进度条、音量和时间）        private void ShowVideoExternInfo(bool isshow=false)        {            if (m_sliderSource != null && m_sliderVideo != null && m_textCount != null && m_textTime != null)            {                m_sliderSource.gameObject.SetActive(isshow);                m_sliderVideo.gameObject.SetActive(isshow);                m_textCount.gameObject.SetActive(isshow);                m_textTime.gameObject.SetActive(isshow);            }        }        #endregion    }//Class_end}

三、使用方法

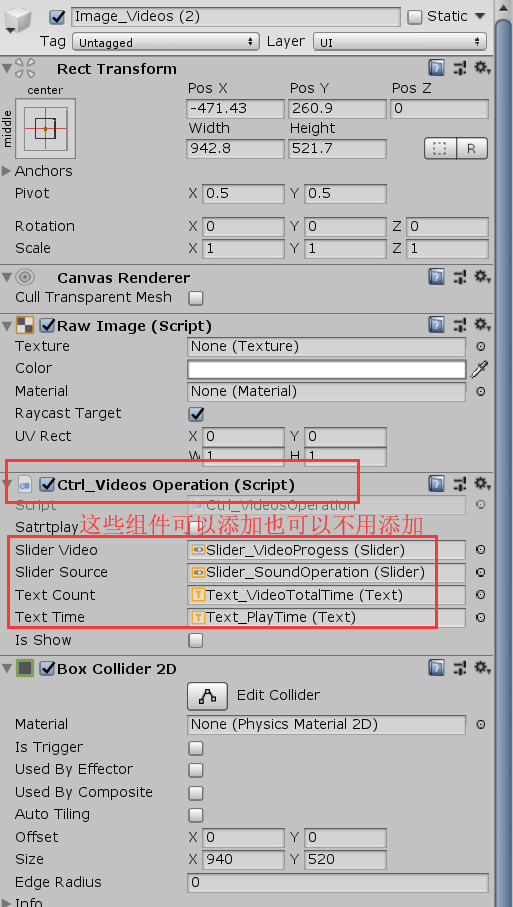

 ①将该设备播放控制脚本（Ctrl_VideosOperation.cs）添加给视频显示组件（我这里是：Image_Videos (3)）

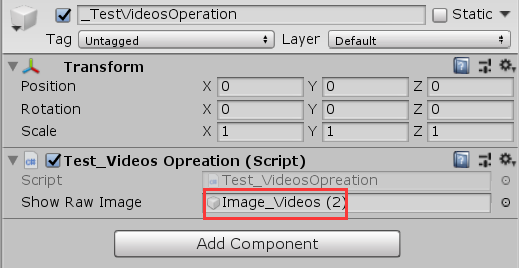

②新建一个空物体(取名：_TestVideosOperation)作为测试视频操作脚本的挂载物体（Test_VideosOpreation.cs）

③测试视频操作脚本的挂载物体（Test_VideosOpreation.cs）如下：

/****	Title："可视化" 项目*		主题：测试视频播放控制*	Description：*		功能：XXX*	Date：2019*	Version：0.1版本*	Author：Coffee*	Modify Recoder：*/using System.Collections;using System.Collections.Generic;using UnityEngine;using Control;using System.IO;using kernal;using Global;using UnityEngine.EventSystems;namespace TestInfo{	public class Test_VideosOpreation : MonoBehaviour    {        public GameObject showRawImage;                                         //显示面板        private Ctrl_VideosOperation _VideosOperation;                          //视频控制脚本               void Start()        {            if (showRawImage!=null)            {                _VideosOperation = showRawImage.GetComponent<Ctrl_VideosOperation>();            }            //获得本地的视频路径            string _VideoPath=@"C:\测试视频\第1章 基本概念清晰版.mp4";            _VideosOperation.satrtplay = _VideosOperation.LoadVideo(VideoPath);            _VideosOperation.LoadFirstPicture();        }        void Update()        {            //开始播放            if (Input.GetKeyDown(KeyCode.P))            {                _VideosOperation.Play();            }            //暂停播放            if (Input.GetKeyDown(KeyCode.L))            {                _VideosOperation.Pause();            }            //停止播放            if (Input.GetKeyDown(KeyCode.S))            {                _VideosOperation.Stop();            }        }           }//Class_end}

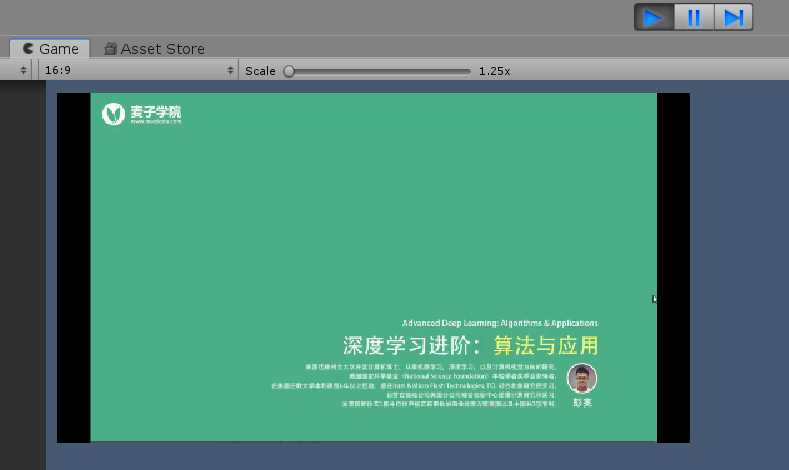

④运行测试，效果图如下：

参考：
