本文共 8474 字，大约阅读时间需要 28 分钟。

1、部署Altermanager告警组件

[root@localhost prometheus]# tar zxvf alertmanager-0.16.0.linux-amd64.tar.gz [root@localhost prometheus]# mv alertmanager-0.16.0.linux-amd64 /usr/local/alertmanager[root@localhost prometheus]# cd /usr/local/alertmanager[root@localhost alertmanager]# lsalertmanager  alertmanager.yml  amtool  LICENSE  NOTICE[root@localhost alertmanager]# vim alertmanager.yml   # 查看配置文件global:                                               # 全局配置  resolve_timeout: 5m                                 # 解析的超时时间  smtp_smarthost: 'smtp.163.com:25'                   # 邮箱服务器地址(邮件告警时需要使用，比如这个是163的邮箱服务器)  smtp_from: 'prod@163.com'                           # 发送告警的邮箱  smtp_auth_username: 'prod@163.com'                  # 邮箱名称  smtp_auth_password: 'abc123'                        # 邮箱密码  smtp_require_tls: false                             # 是否使用tlsroute:                                                # 发送告警的规则  group_by: ['alertname']                             # 采用哪个标签作为分组依据  group_wait: 10s                                     # 分组等待时间(等待10s发送一次，将10s内的告警一次发送出去)  group_interval: 10s                                 # 告警分组之间发送告警的间隔时间                                 repeat_interval: 1h                                 # 重复告警的时间(发送的频率)  receiver: 'web.hook'                                # 指定接收者  receivers:                                            # 定义接收者- name: 'web.hook'                                    # 接收者名称  webhook_configs:                                    # 定义webhook接收告警的方式(如钉钉)  - url: 'http://127.0.0.1:5001/'- name: 'mail'                                          email_configs:                                      # 定义email的方式接收告警通知  - to: 'zhangshan369@163.com'  inhibit_rules:                                        # 抑制，用于告警收敛	  - source_match:      severity: 'critical'    target_match:      severity: 'warning'    equal: ['alertname', 'dev', 'instance'][root@localhost alertmanager]# ./amtool check-config alertmanager.yml   # 检查配置文件Checking 'alertmanager.yml'  SUCCESS                                    # 配置无误Found: - global config - route - 1 inhibit rules - 1 receivers - 0 templates[root@localhost alertmanager]# ./alertmanager --config.file=alertmanager.yml   # 指定配置文件启动altermanager

2、配置Prometheus与Alertmanager通信

[root@localhost alertmanager]#  cd ../prometheus/[root@localhost prometheus]# pwd/usr/local/prometheus[root@localhost prometheus]# vim prometheus.ymlalerting:  alertmanagers:  - static_configs:    - targets:                                     # 监控的实例      - 192.168.10.20:9093rule_files:                                        # 告警规则文件  - "rules/*.yml"

3、在prometheus中创建告警规则

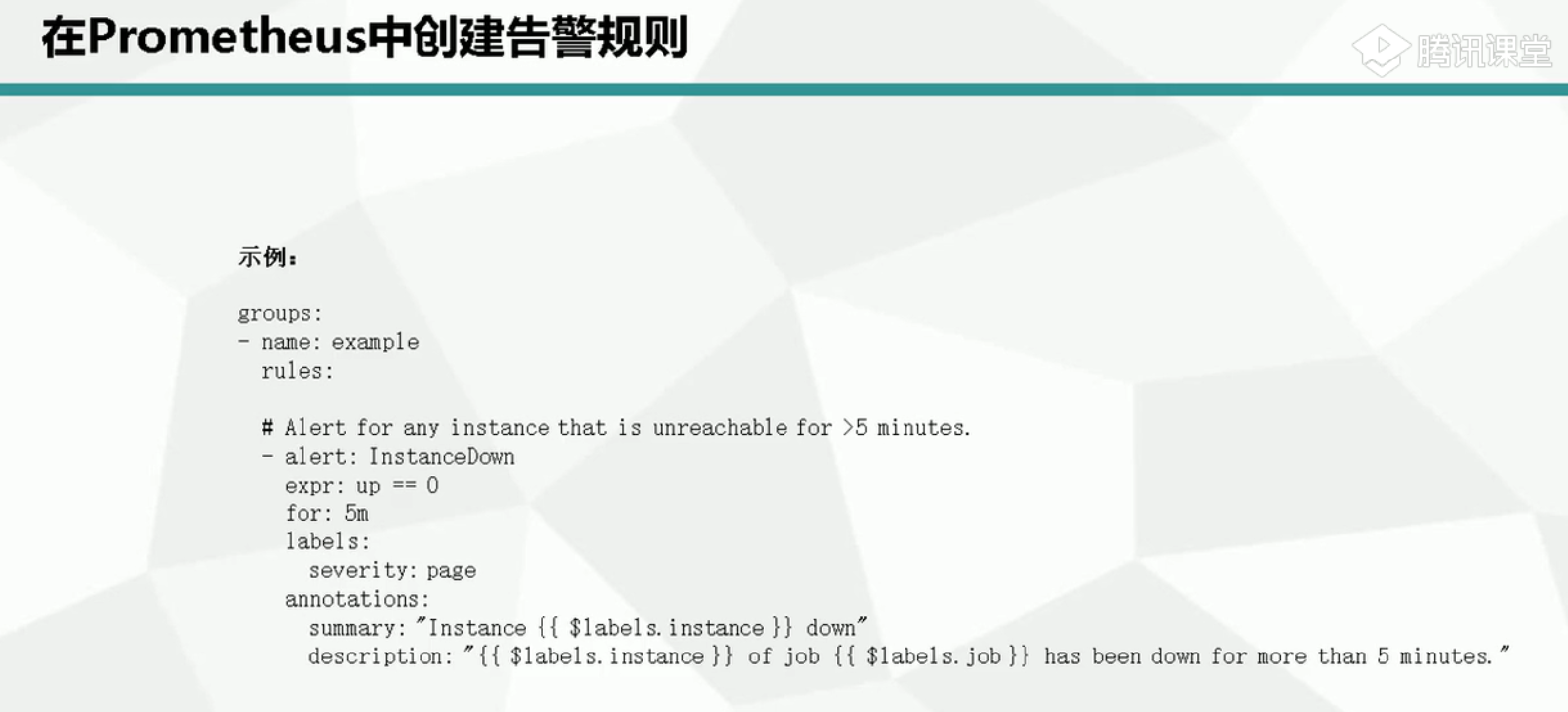

规则的创建如下示例
官方地址：https://prometheus.io/docs/prometheus/latest/configuration/alerting_rules/


示例参数解释：

groups:                                                         # 进行告警分组- name: example                                                 # 分组名称  rules:                                                        # 告警规则  # Alert for any instance that is unreachable for >5 minutes.   # 所有实例超出5分组不可达，就发出告警  - alert: InstanceDown                                        # 告警实例名称    expr: up == 0                                              # 表达式(up=0表示down)    for: 5m                                                    # 当前告警持续时间(5分钟之内连续这个状态就告警)    labels:                                                    # 定义当前告警规则的级别      severity: page                                           # 如error    annotations:                                               # 告警信息描述      summary: "Instance {  { $labels.instance }} down"                description: "{  { $labels.instance }} of job {  { $labels.job }} has been down for more than 5 minutes."  # Alert for any instance that has a median request latency >1s.  - alert: APIHighRequestLatency    expr: api_http_request_latencies_second{quantile="0.5"} > 1    for: 10m    annotations:      summary: "High request latency on {  { $labels.instance }}"      description: "{  { $labels.instance }} has a median request latency above 1s (current value: {  { $value }}s)"

编写告警

[root@localhost prometheus]# pwd/usr/local/prometheus[root@localhost prometheus]# vim rules/alert.ymlgroups:- name: example  rules:  # alert for any instance that is unreachable for >5 minutes  - alert: InstanceDown    expr: up == 0    for: 1m    labels:      serveriry: error    annotations:      sumary: "Instance {  { $labels.instance }} down"      description: "{  { $labels.instance }} of job {  { $labels.job }} has been down for more than 5 minutes."

配置Alertmanager给systemd管理

[root@localhost prometheus]# vim /usr/lib/systemd/system/alertmanager.service[Unit]Description=Alertmanager.service[Service]ExecStart=/usr/local/alertmanager/alertmanager --config.file=/usr/local/alertmanager/alertmanager.ymlRestart=on-failure[Install]WantedBy=multi-user.target[root@localhost prometheus]# systemctl daemon-reload[root@localhost prometheus]# systemctl start alertmanager[root@localhost prometheus]# ps -ef |grep alertmanagerroot     101264      1  0 11:27 ?        00:00:00 /usr/local/alertmanager/alertmanager --config.file=/usr/local/alertmanager/alertmanager.ymlroot     102445  91138  0 11:29 pts/3    00:00:00 grep --color=auto alertmanager[root@localhost prometheus]#

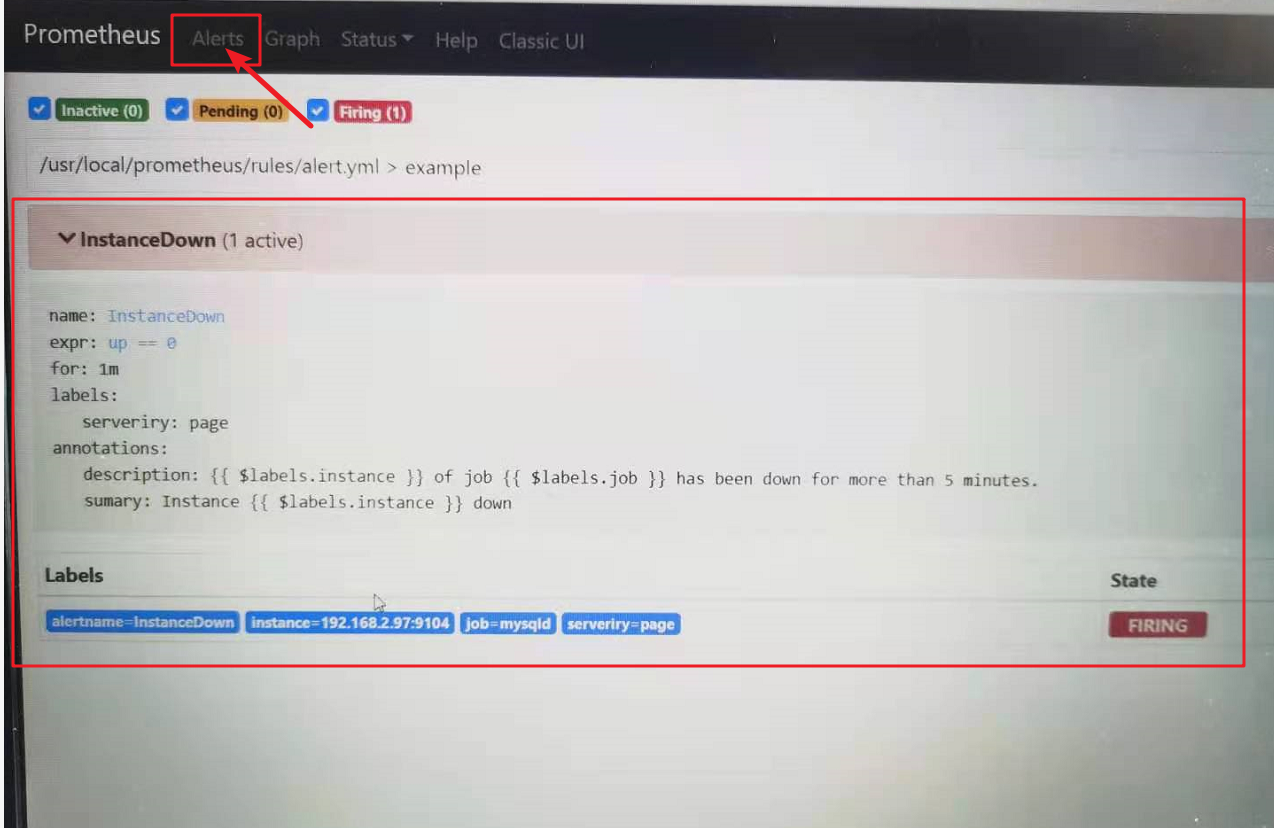

访问prometheus，可以看到告警

4、告警通知配置

邮箱告警直接在alertmanager.yml中配置即可，钉钉告警需要下载插件进行格式化
官方文档：https://github.com/timonwong/prometheus-webhook-dingtalk4
下载地址：https://github.com/timonwong/prometheus-webhook-dingtalk/releases
如：wget ‘https://github.com/timonwong/prometheus-webhook-dingtalk/releases/download/v1.4.0/prometheus-webhook-dingtalk-1.4.0.linux-amd64.tar.gz’

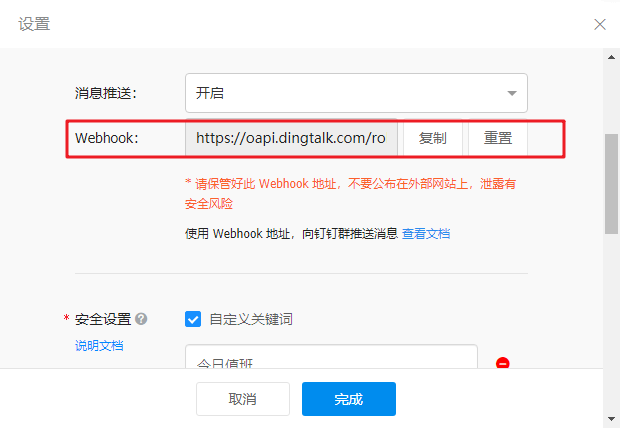

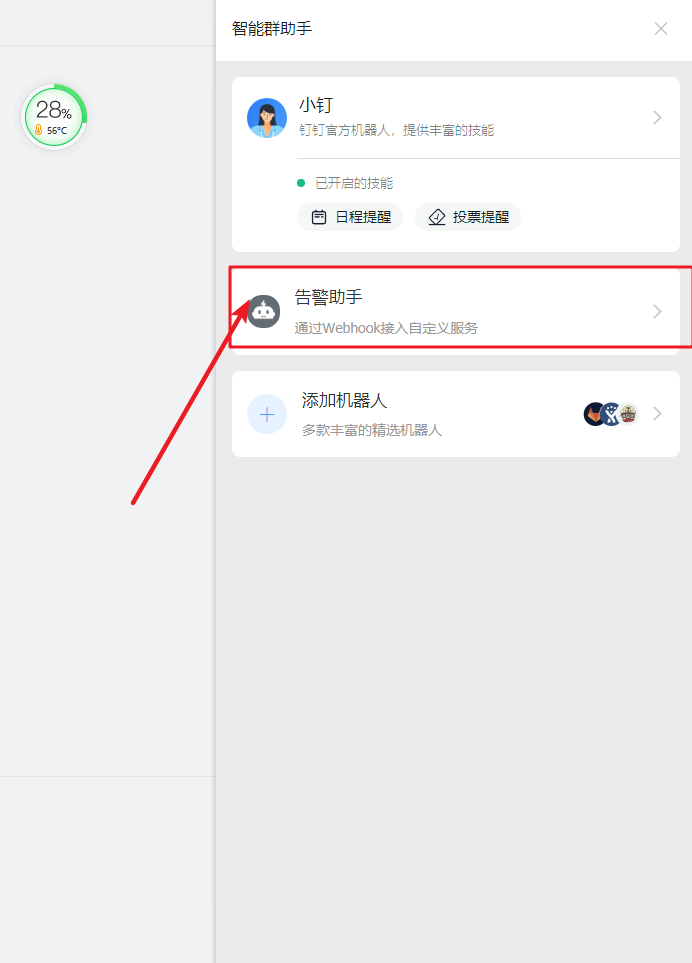

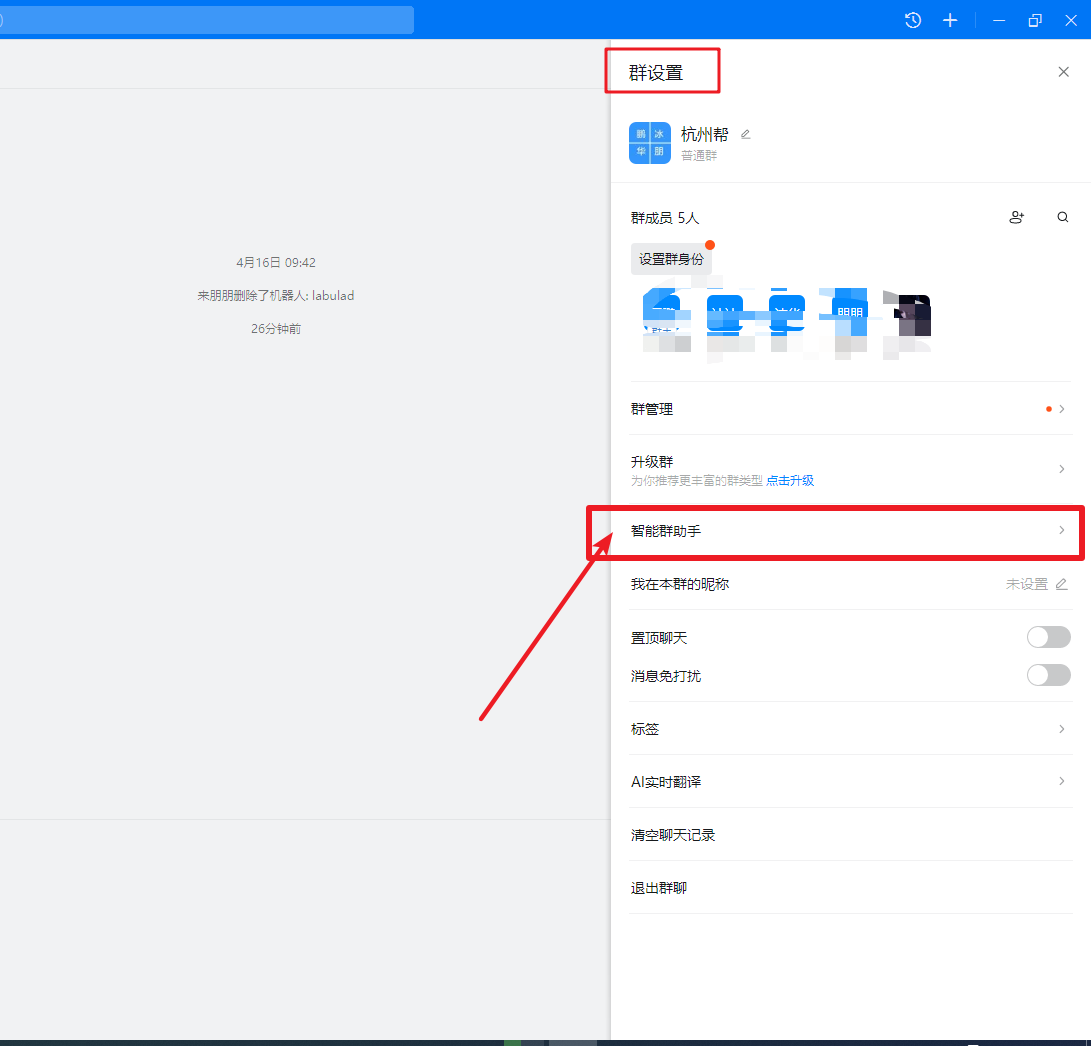

获取钉钉机器人的webhook

• 将这里的webhook地址复制，后面在告警配置中会用到

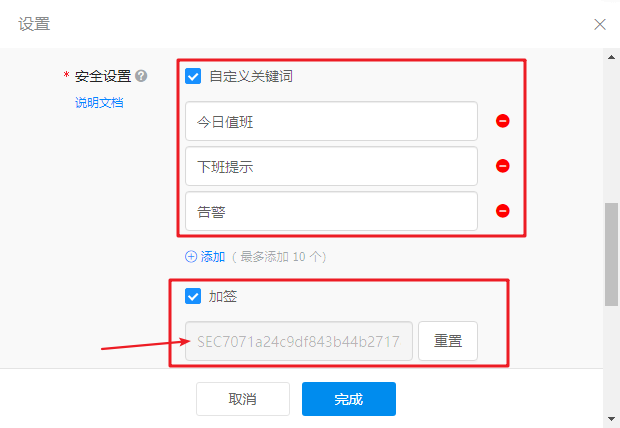

• 钉钉机器人的安全设置会过滤到一些垃圾信息，有多种安全机制，设置"自定义关键词"的方式，机器人会转发包含关键词的信息 ; 设置"加签"的方式，需要在下面的配置文件中添加认证的信息才会接收。
• 推荐使用"加签"的方式，将加签的秘钥复制，后面需要写入到配置文件中


下载webhook-dingtalk二进制包并安装

[root@localhost prometheus]# wget  'https://github.com/timonwong/prometheus-webhook-dingtalk/releases/download/v1.4.0/prometheus-webhook-dingtalk-1.4.0.linux-amd64.tar.gz'[root@localhost prometheus]# tar zxvf prometheus-webhook-dingtalk-1.4.0.linux-amd64.tar.gz[root@localhost prometheus]# mv prometheus-webhook-dingtalk-1.4.0.linux-amd64 /usr/local/prometheus-webhook-dingtalk[root@localhost prometheus]# cd /usr/local/prometheus-webhook-dingtalk[root@localhost prometheus-webhook-dingtalk]# lsconfig.example.yml  contrib  LICENSE  prometheus-webhook-dingtalk

修改config.yml配置

[root@localhost prometheus-webhook-dingtalk]# cp -p config.example.yml config.yml[root@localhost prometheus-webhook-dingtalk]# vim config.ymltargets:  webhook1:    # url: 这里将从钉钉机器人那复制过来的webhook地址粘贴    url: https://oapi.dingtalk.com/robot/send?access_token=XXXX      # secret for signature   在secret: 这粘贴钉钉机器人的标签密码    secret: SEC7071XXXXX

配置dingtalk给systemd管理

[root@localhost prometheus-webhook-dingtalk]# vim /usr/lib/systemd/system/dingtalk.service[Unit]Description=dingtalk.service[Service]ExecStart=/usr/local/prometheus-webhook-dingtalk/prometheus-webhook-dingtalk \# 设置监听端口，默认是8060--web.listen-address=:9160 \--config.file=/usr/local/prometheus-webhook-dingtalk/config.ymlRestart=on-failure[Install]WantedBy=multi-user.target[root@localhost prometheus-webhook-dingtalk]# systemctl start dingtalk

配置alermanager.yml

[root@localhost alertmanager]# vim alertmanager.yml   # 查看配置文件global:                                               # 全局配置  resolve_timeout: 5m                                 # 解析的超时时间route:                                                # 发送告警的规则  group_by: ['alertname']                             # 采用哪个标签作为分组依据  group_wait: 10s                                     # 分组等待时间(等待10s发送一次，将10s内的告警一次发送出去)  group_interval: 10s                                 # 告警分组之间发送告警的间隔时间                                 repeat_interval: 1h                                 # 重复告警的时间(发送的频率)  receiver: 'web.hook'                                # 指定接收者  receivers:                                            # 定义接收者- name: 'web.hook'                                    # 接收者名称  webhook_configs:                                    # 定义webhook接收告警的方式(如钉钉)  - url: 'http://localhost:9160/dingtalk/webhook1/dend' # 这里的 url: 'http://prometheus-webhook-dingtalk的服务器的ip地址:端口/config.yml中的分组名称/send'inhibit_rules:                                        # 抑制，用于告警收敛	  - source_match:      severity: 'critical'    target_match:      severity: 'warning'    equal: ['alertname', 'dev', 'instance'][root@localhost alertmanager]# systemctl restart alertmanager  # 重启服务
