一、han模型有两个重要特征，第一是分层，word-level层与sentence-level层，符合文档结构；第二个就是使用注意力机制（在加权时，可以根据内容赋予动态权重）；

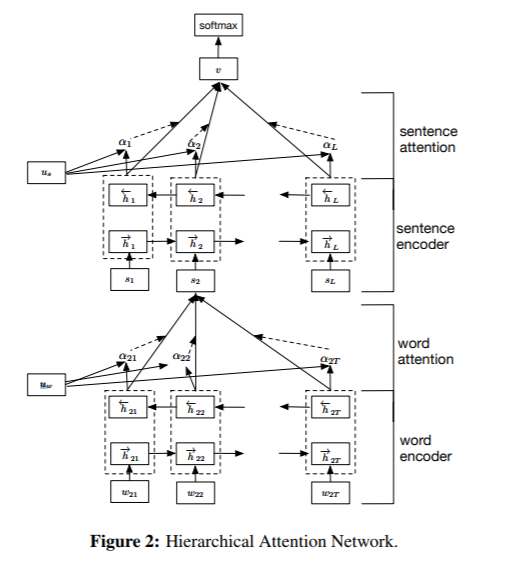

二、han模型如下：

首先是one-hot的嵌入式表示，即embedding

然后再经过word-level编码层，这个有很多选择，论文中选择了双向GRU模型，得到每个word的编码

然后再经过注意力层计算出每个word编码的权值，用于线性加权；这里有个重点就是注意力层中Q，即图中的Uw，代表context vector，语义向量，是随机初始化的，不对应任何输入；V代表word的编码（GRU层输出的隐藏状态），K是将V经过一个FNN层的输出； 证明如原文的记录：

然后上面就完成了一个句子的编码；

然后多个句子组成输入，即基于sentence-level，经过编码层（双向GRU），（本质上和word-level一模一样），输出一个文档向量

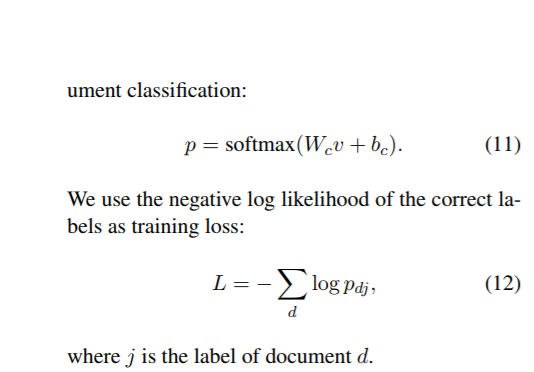

最后，经过一个线性转换变成得分，再加softmax层输出分类概率值；如图所示（v是文档向量）：

三、模型设置与训练：

    b、使用word2vec模型训练得到word2vec矩阵；用于初始化han模型中嵌入层；嵌入层输出维度为200，编码层输出维度为100（每个方向各占50），语义向量维度也为100；

   c、batchsize为64，动量值为0.9，学习率用grid search搜索得到；

四、han定义模型代码：

#coding=utf8import tensorflow as tffrom tensorflow.contrib import rnnfrom tensorflow.contrib import layersdef length(sequences):    used = tf.sign(tf.reduce_max(tf.abs(sequences), reduction_indices=2))    seq_len = tf.reduce_sum(used, reduction_indices=1)    return tf.cast(seq_len, tf.int32)class HAN():    def __init__(self, vocab_size, num_classes, embedding_size=200, hidden_size=50):        self.vocab_size = vocab_size        self.num_classes = num_classes        self.embedding_size = embedding_size        self.hidden_size = hidden_size        with tf.name_scope('placeholder'):            self.max_sentence_num = tf.placeholder(tf.int32, name='max_sentence_num')            self.max_sentence_length = tf.placeholder(tf.int32, name='max_sentence_length')            self.batch_size = tf.placeholder(tf.int32, name='batch_size')            #x的shape为[batch_size, 句子数， 句子长度(单词个数)]，但是每个样本的数据都不一样，，所以这里指定为空            #y的shape为[batch_size, num_classes]            self.input_x = tf.placeholder(tf.int32, [None, None, None], name='input_x')            self.input_y = tf.placeholder(tf.float32, [None, num_classes], name='input_y')        #构建模型        word_embedded = self.word2vec()        sent_vec = self.sent2vec(word_embedded)        doc_vec = self.doc2vec(sent_vec)        out = self.classifer(doc_vec)        self.out = out    def word2vec(self):        with tf.name_scope("embedding"):            embedding_mat = tf.Variable(tf.truncated_normal((self.vocab_size, self.embedding_size)))            #shape为[batch_size, sent_in_doc, word_in_sent, embedding_size]            word_embedded = tf.nn.embedding_lookup(embedding_mat, self.input_x)        return word_embedded    def sent2vec(self, word_embedded):        with tf.name_scope("sent2vec"):            #GRU的输入tensor是[batch_size, max_time, ...].在构造句子向量时max_time应该是每个句子的长度，所以这里将            #batch_size * sent_in_doc当做是batch_size.这样一来，每个GRU的cell处理的都是一个单词的词向量            #并最终将一句话中的所有单词的词向量融合（Attention）在一起形成句子向量            #shape为[batch_size*sent_in_doc, word_in_sent, embedding_size]            word_embedded = tf.reshape(word_embedded, [-1, self.max_sentence_length, self.embedding_size])            #shape为[batch_size*sent_in_doce, word_in_sent, hidden_size*2]            word_encoded = self.BidirectionalGRUEncoder(word_embedded, name='word_encoder')            #shape为[batch_size*sent_in_doc, hidden_size*2]            sent_vec = self.AttentionLayer(word_encoded, name='word_attention')            return sent_vec    def doc2vec(self, sent_vec):        with tf.name_scope("doc2vec"):            sent_vec = tf.reshape(sent_vec, [-1, self.max_sentence_num, self.hidden_size*2])            #shape为[batch_size, sent_in_doc, hidden_size*2]            doc_encoded = self.BidirectionalGRUEncoder(sent_vec, name='sent_encoder')            #shape为[batch_szie, hidden_szie*2]            doc_vec = self.AttentionLayer(doc_encoded, name='sent_attention')            return doc_vec    def classifer(self, doc_vec):        with tf.name_scope('doc_classification'):            out = layers.fully_connected(inputs=doc_vec, num_outputs=self.num_classes, activation_fn=None)            return out    def BidirectionalGRUEncoder(self, inputs, name):        #输入inputs的shape是[batch_size, max_time, voc_size]        with tf.variable_scope(name):            GRU_cell_fw = rnn.GRUCell(self.hidden_size)            GRU_cell_bw = rnn.GRUCell(self.hidden_size)            #fw_outputs和bw_outputs的size都是[batch_size, max_time, hidden_size]            ((fw_outputs, bw_outputs), (_, _)) = tf.nn.bidirectional_dynamic_rnn(cell_fw=GRU_cell_fw,                                                                                 cell_bw=GRU_cell_bw,                                                                                 inputs=inputs,                                                                                 sequence_length=length(inputs),                                                                                 dtype=tf.float32)            #outputs的size是[batch_size, max_time, hidden_size*2]            outputs = tf.concat((fw_outputs, bw_outputs), 2)            return outputs    def AttentionLayer(self, inputs, name):        #inputs是GRU的输出，size是[batch_size, max_time, encoder_size(hidden_size * 2)]        with tf.variable_scope(name):            # u_context是上下文的重要性向量，用于区分不同单词/句子对于句子/文档的重要程度,            # 因为使用双向GRU，所以其长度为2×hidden_szie            u_context = tf.Variable(tf.truncated_normal([self.hidden_size * 2]), name='u_context')            #使用一个全连接层编码GRU的输出的到期隐层表示,输出u的size是[batch_size, max_time, hidden_size * 2]            h = layers.fully_connected(inputs, self.hidden_size * 2, activation_fn=tf.nn.tanh)            #shape为[batch_size, max_time, 1]            alpha = tf.nn.softmax(tf.reduce_sum(tf.multiply(h, u_context), axis=2, keep_dims=True), dim=1)            #reduce_sum之前shape为[batch_szie, max_time, hidden_szie*2]，之后shape为[batch_size, hidden_size*2]            atten_output = tf.reduce_sum(tf.multiply(inputs, alpha), axis=1)            return atten_output

五、训练代码：

#coding=utf-8import tensorflow as tfimport timeimport osfrom data_helper import load_datasetfrom HAN_model import HAN# Data loading paramstf.flags.DEFINE_string("yelp_json_path", 'data/yelp_academic_dataset_review.json', "data directory")tf.flags.DEFINE_integer("vocab_size", 46960, "vocabulary size")tf.flags.DEFINE_integer("num_classes", 5, "number of classes")tf.flags.DEFINE_integer("embedding_size", 200, "Dimensionality of character embedding (default: 200)")tf.flags.DEFINE_integer("hidden_size", 50, "Dimensionality of GRU hidden layer (default: 50)")tf.flags.DEFINE_integer("batch_size", 32, "Batch Size (default: 64)")tf.flags.DEFINE_integer("num_epochs", 10, "Number of training epochs (default: 50)")tf.flags.DEFINE_integer("checkpoint_every", 100, "Save model after this many steps (default: 100)")tf.flags.DEFINE_integer("num_checkpoints", 5, "Number of checkpoints to store (default: 5)")tf.flags.DEFINE_integer("max_sent_in_doc", 30, "Number of checkpoints to store (default: 5)")tf.flags.DEFINE_integer("max_word_in_sent", 30, "Number of checkpoints to store (default: 5)")tf.flags.DEFINE_integer("evaluate_every", 100, "evaluate every this many batches")tf.flags.DEFINE_float("learning_rate", 0.01, "learning rate")tf.flags.DEFINE_float("grad_clip", 5, "grad clip to prevent gradient explode")FLAGS = tf.flags.FLAGStrain_x, train_y, dev_x, dev_y = load_dataset(FLAGS.yelp_json_path, FLAGS.max_sent_in_doc, FLAGS.max_word_in_sent)print "data load finished"with tf.Session() as sess:    han = HAN(vocab_size=FLAGS.vocab_size,                    num_classes=FLAGS.num_classes,                    embedding_size=FLAGS.embedding_size,                    hidden_size=FLAGS.hidden_size)    with tf.name_scope('loss'):        loss = tf.reduce_mean(tf.nn.softmax_cross_entropy_with_logits(labels=han.input_y,                                                                      logits=han.out,                                                                      name='loss'))    with tf.name_scope('accuracy'):        predict = tf.argmax(han.out, axis=1, name='predict')        label = tf.argmax(han.input_y, axis=1, name='label')        acc = tf.reduce_mean(tf.cast(tf.equal(predict, label), tf.float32))    timestamp = str(int(time.time()))    out_dir = os.path.abspath(os.path.join(os.path.curdir, "runs", timestamp))    print("Writing to {}\n".format(out_dir))    global_step = tf.Variable(0, trainable=False)    optimizer = tf.train.AdamOptimizer(FLAGS.learning_rate)    # RNN中常用的梯度截断，防止出现梯度过大难以求导的现象    tvars = tf.trainable_variables()    grads, _ = tf.clip_by_global_norm(tf.gradients(loss, tvars), FLAGS.grad_clip)    grads_and_vars = tuple(zip(grads, tvars))    train_op = optimizer.apply_gradients(grads_and_vars, global_step=global_step)    # Keep track of gradient values and sparsity (optional)    grad_summaries = []    for g, v in grads_and_vars:        if g is not None:            grad_hist_summary = tf.summary.histogram("{}/grad/hist".format(v.name), g)            grad_summaries.append(grad_hist_summary)    grad_summaries_merged = tf.summary.merge(grad_summaries)    loss_summary = tf.summary.scalar('loss', loss)    acc_summary = tf.summary.scalar('accuracy', acc)    train_summary_op = tf.summary.merge([loss_summary, acc_summary, grad_summaries_merged])    train_summary_dir = os.path.join(out_dir, "summaries", "train")    train_summary_writer = tf.summary.FileWriter(train_summary_dir, sess.graph)    dev_summary_op = tf.summary.merge([loss_summary, acc_summary])    dev_summary_dir = os.path.join(out_dir, "summaries", "dev")    dev_summary_writer = tf.summary.FileWriter(dev_summary_dir, sess.graph)    checkpoint_dir = os.path.abspath(os.path.join(out_dir, "checkpoints"))    checkpoint_prefix = os.path.join(checkpoint_dir, "model")    if not os.path.exists(checkpoint_dir):        os.makedirs(checkpoint_dir)    saver = tf.train.Saver(tf.global_variables(), max_to_keep=FLAGS.num_checkpoints)    sess.run(tf.global_variables_initializer())    def train_step(x_batch, y_batch):        feed_dict = {            han.input_x: x_batch,            han.input_y: y_batch,            han.max_sentence_num: 30,            han.max_sentence_length: 30,            han.batch_size: 64        }        _, step, summaries, cost, accuracy = sess.run([train_op, global_step, train_summary_op, loss, acc], feed_dict)        time_str = str(int(time.time()))        print("{}: step {}, loss {:g}, acc {:g}".format(time_str, step, cost, accuracy))        train_summary_writer.add_summary(summaries, step)        return step    def dev_step(x_batch, y_batch, writer=None):        feed_dict = {            han.input_x: x_batch,            han.input_y: y_batch,            han.max_sentence_num: 30,            han.max_sentence_length: 30,            han.batch_size: 64        }        step, summaries, cost, accuracy = sess.run([global_step, dev_summary_op, loss, acc], feed_dict)        time_str = str(int(time.time()))        print("++++++++++++++++++dev++++++++++++++{}: step {}, loss {:g}, acc {:g}".format(time_str, step, cost, accuracy))        if writer:            writer.add_summary(summaries, step)    for epoch in range(FLAGS.num_epochs):        print('current epoch %s' % (epoch + 1))        for i in range(0, 200000, FLAGS.batch_size):            x = train_x[i:i + FLAGS.batch_size]            y = train_y[i:i + FLAGS.batch_size]            step = train_step(x, y)            if step % FLAGS.evaluate_every == 0:                dev_step(dev_x, dev_y, dev_summary_writer)

代码来源：
