简介

定位为透明化的数据库代理端，提供封装了数据库二进制协议的服务端版本，用于完成对异构语言的支持。 目前先提供MySQL/PostgreSQL版本，它可以使用任何兼容MySQL/PostgreSQL协议的访问客户端(如：MySQL Command Client, MySQL Workbench, Navicat等)操作数据，对DBA更加友好。

1 进入conf目录，修改server.yaml

authentication:  users:    root:      password: root    sharding:      password: sharding       authorizedSchemas: sharding_dbprops:  max.connections.size.per.query: 1  acceptor.size: 16  # The default value is available processors count * 2.  executor.size: 16  # Infinite by default.  proxy.frontend.flush.threshold: 128  # The default value is 128.    # LOCAL: Proxy will run with LOCAL transaction.    # XA: Proxy will run with XA transaction.    # BASE: Proxy will run with B.A.S.E transaction.  proxy.transaction.type: LOCAL  proxy.opentracing.enabled: false  query.with.cipher.column: true  sql.show: false

2 进入conf目录，修改config-sharding.yaml

2.1 拷贝mysql驱动到Sharding-Proxy的lib目录

将mysql 驱动 mysql-connector-java-8.0.15.jar 复制到Sharding-Proxy的lib目录中

2.2 修改 config-sharding.yaml 文件

schemaName: sharding_dbdataSources:  ds_0:    url: jdbc:mysql://127.0.0.1:3306/edu1?serverTimezone=UTC&useSSL=false    username: root    password: chengwen    connectionTimeoutMilliseconds: 30000    idleTimeoutMilliseconds: 60000    maxLifetimeMilliseconds: 1800000    maxPoolSize: 50shardingRule:  tables:    t_order:      actualDataNodes: ds_${
   0}.t_order_${
   0..1}      tableStrategy:        inline:          shardingColumn: order_id          algorithmExpression: t_order_${
   order_id % 2}      keyGenerator:        type: SNOWFLAKE        column: order_id  bindingTables:    - t_order  defaultDatabaseStrategy:    inline:      shardingColumn: user_id      algorithmExpression: ds_${
   0}  defaultTableStrategy:    none:

2.3 本地创建一个数据库

CREATE SCHEMA `edu1` DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci ;

3 启动Sharding-Proxy服务

进入bin目录，执行命令启动Sharding-Proxy

chengwen@chengwen bin % ./start.sh Starting the Sharding-Proxy ...Please check the STDOUT file: /Users/chengwen/apache-shardingsphere-incubating-4.0.1-sharding-proxy-bin/logs/stdout.logchengwen@chengwen bin %

查看日志，出现端口号3307（默认），ACTIVE表示成功

[INFO ] 00:27:18.350 [nioEventLoopGroup-2-1] i.n.handler.logging.LoggingHandler - [id: 0x7014d160] REGISTERED[INFO ] 00:27:18.352 [nioEventLoopGroup-2-1] i.n.handler.logging.LoggingHandler - [id: 0x7014d160] BIND: 0.0.0.0/0.0.0.0:3307[INFO ] 00:27:18.355 [nioEventLoopGroup-2-1] i.n.handler.logging.LoggingHandler - [id: 0x7014d160, L:/0.0.0.0:3307] ACTIVE

4 通过Sharding-Proxy启动端口进行连接

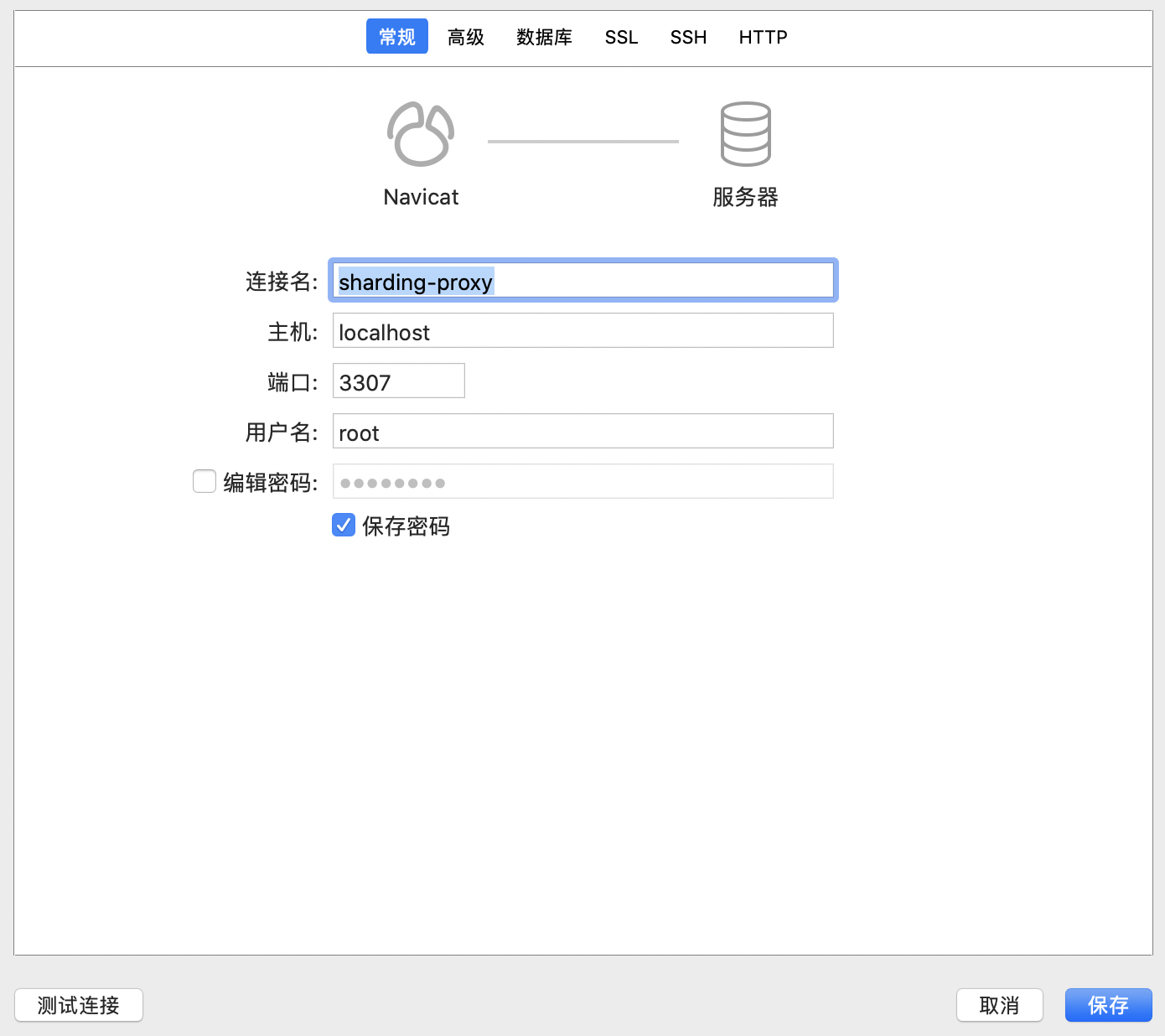

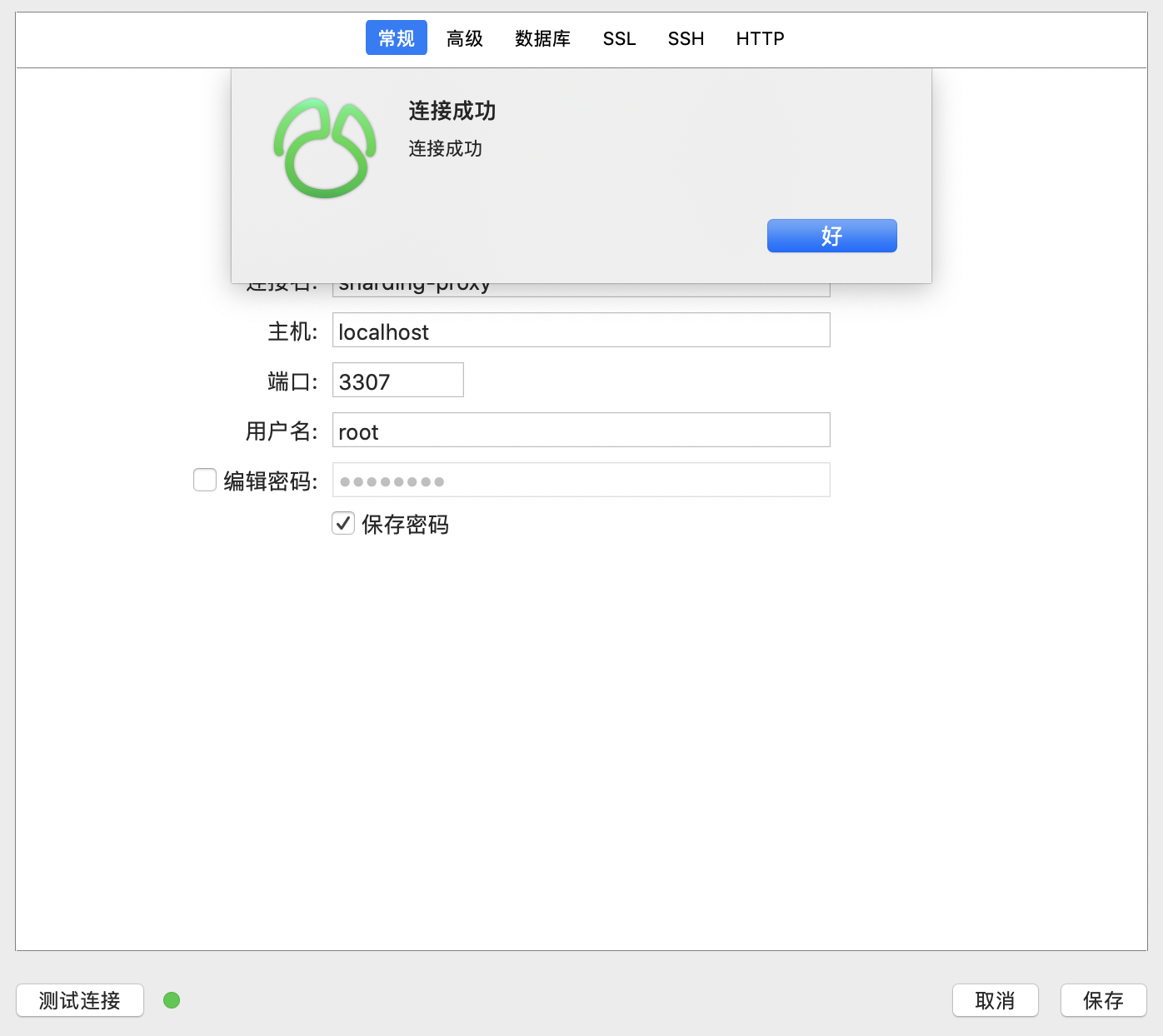

4.1 打开Navicat for Mysql 15 连接sharding-proxy

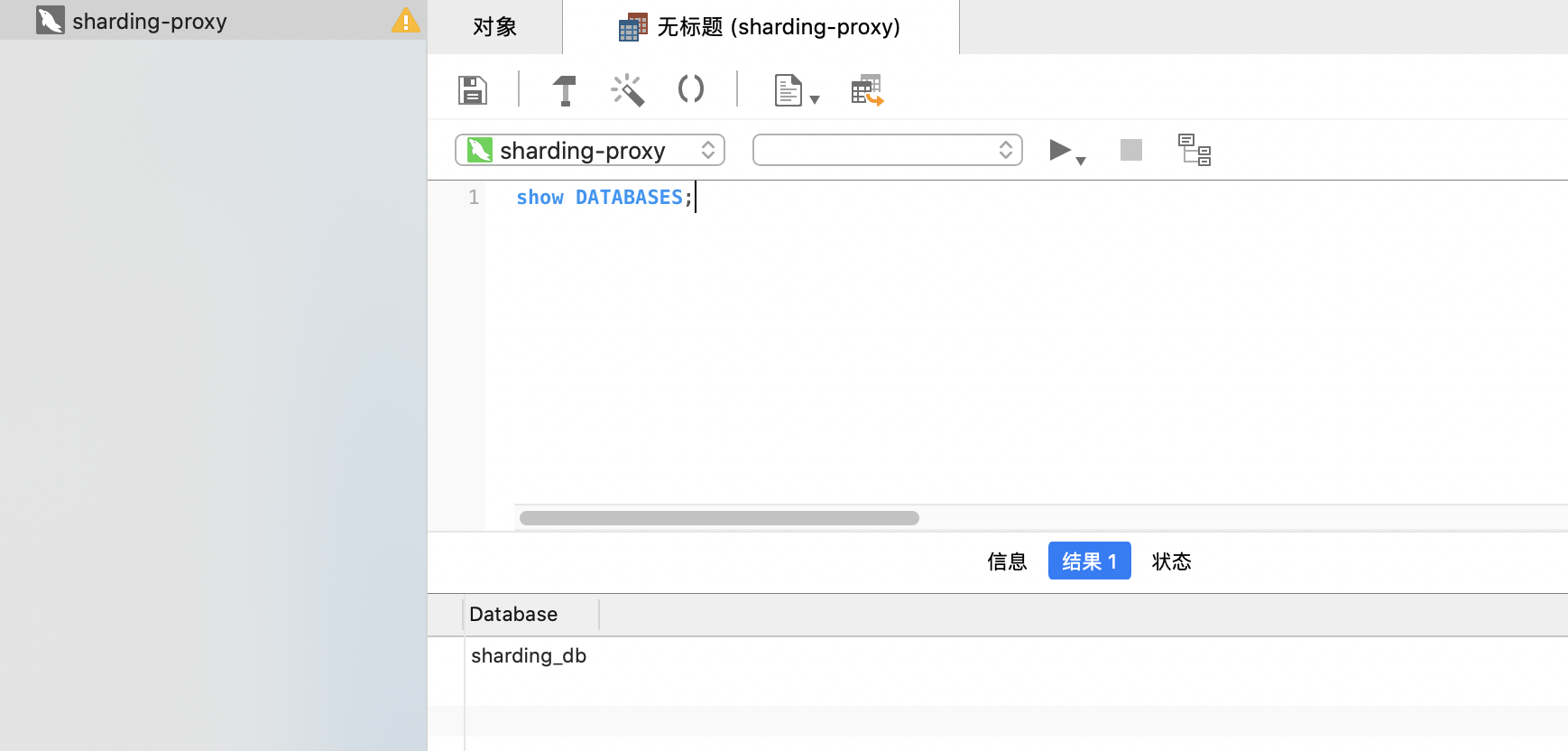

4.2 进行sql命令操作看到只有一个库

4.3 在sharding_db库中创建表

create table if not exists ds_0.t_order(order_id bigint not null,user_id int not null,status varchar(50),primary key(order_id));

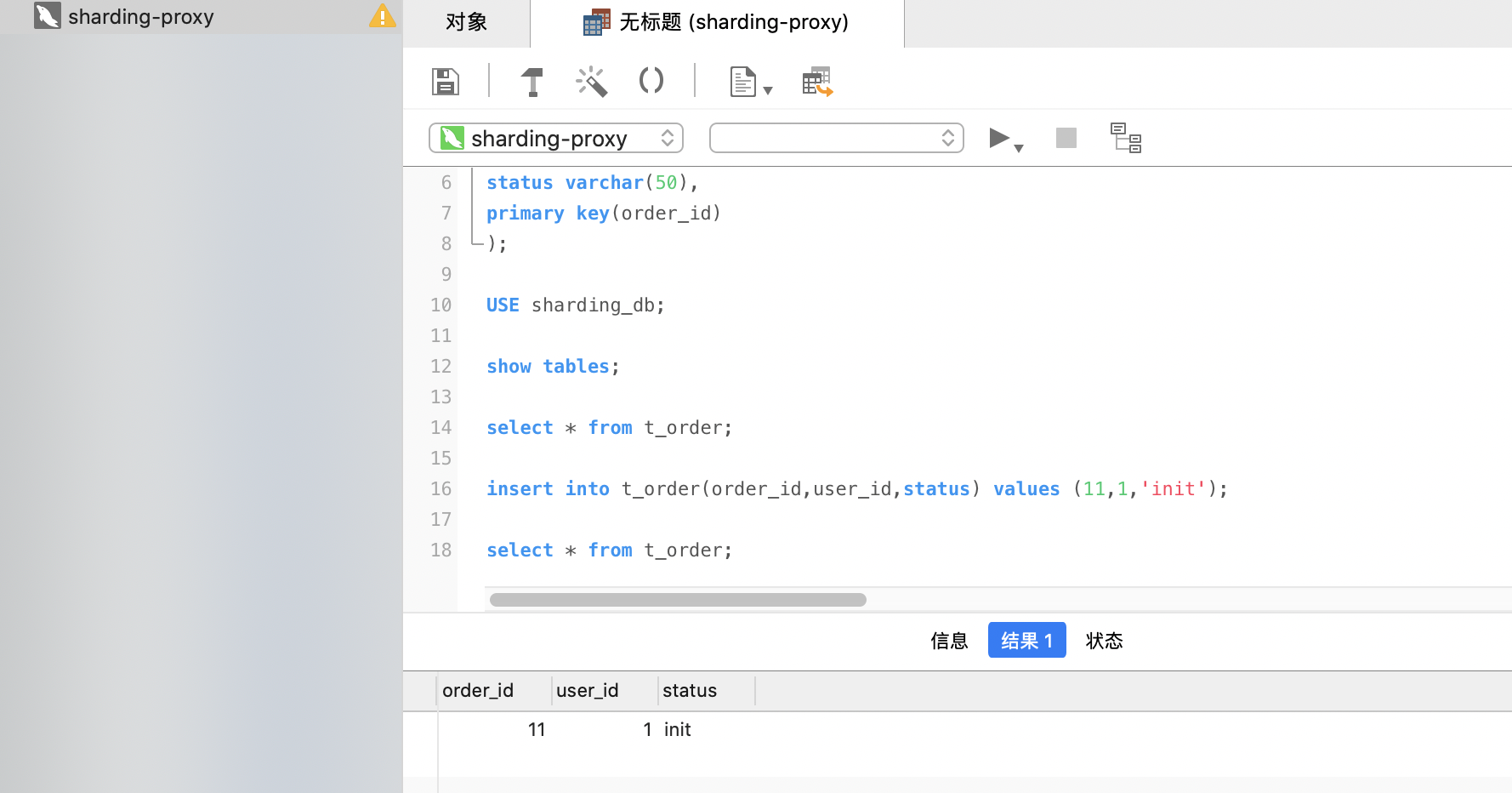

4.4 向表中添加一条记录

USE sharding_db;show tables;select * from t_order;insert into t_order(order_id,user_id,status) values (11,1,'init');select * from t_order;

5 回到本地3306端口数据库中，看到已经创建好了表和添加了数据

本地库edu1需要自己创建，数据表和数据记录会由sharding-proxy自动创建
