01 网络描述

BP网络由大量简单处理单元广泛互联而成，是一种对非线性函数进行权值训练的多层映射网络。具有优良的非线性映射能力，理论上它能够以任意精度逼近任意非线性函数。本文采用BP神经网络解决下列函数拟合问题。

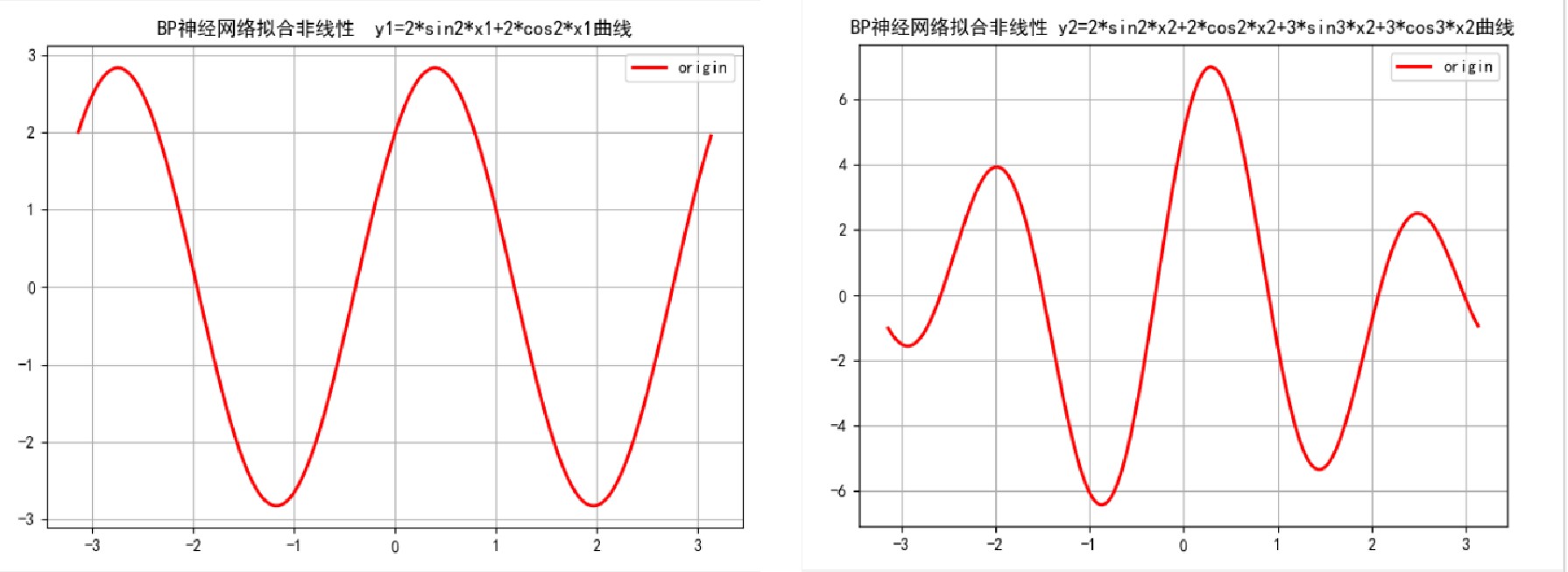

函数逼近：设计一个神经网络拟合下列的函数：

02 BP神经网络模型的建立

(1)样本数据的产生

为建立函数拟合的BP神经网络模型，一般要考虑以下几步：

样本数据的产生，这里用来两种方法，

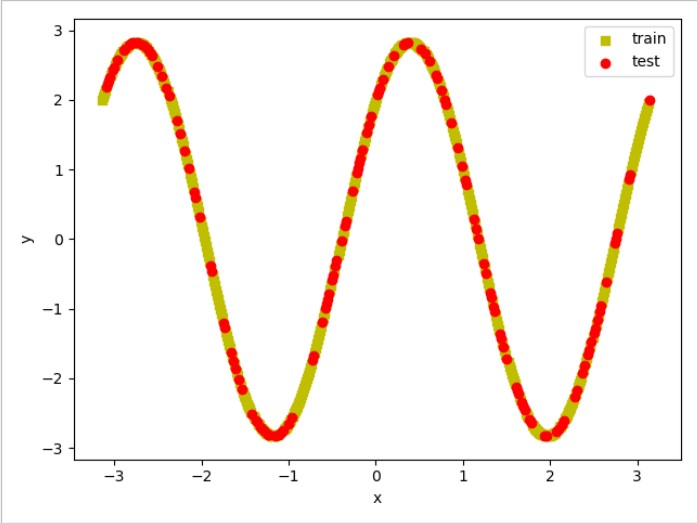

• 第一种方法先在x属于[-π,π]区间内生成500个均匀分布的数据点，然后对这500个样本点的标签进行shuffle，然后取前30%个点为测试集，后70%个点为训练集。如图所示。

• 第二种方法在x属于[-π,π]区间内生成350个均匀分布的数据点为训练集，在[-π,π]区间内生成150个均匀分布的数据点为测试集

(2) 数据的预处理

通常需要将样本数据归一化，由于这里的数据变化范围不大，所以暂不考虑对数据的归一化。

(3)BP神经网络

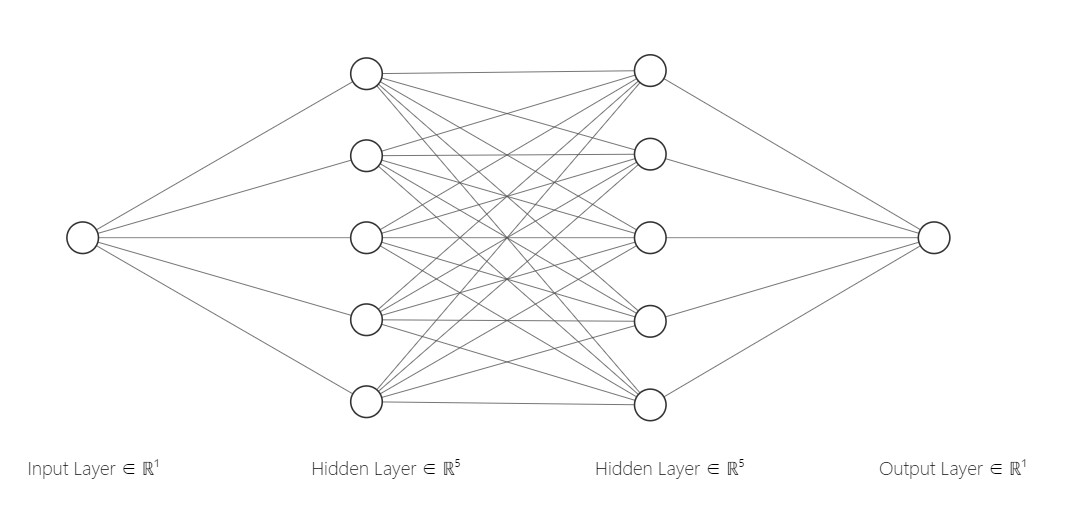

一个典型的3层BP神经网络结果如图1所示，包括输入层、隐藏层和输出层。其中隐藏层的状态影响输入输出之间的关系，及通过改变隐藏层的系数，就可以改变多层神经网络的性能。

BP神经网络的学习过程由正向传播和反向传播组成。

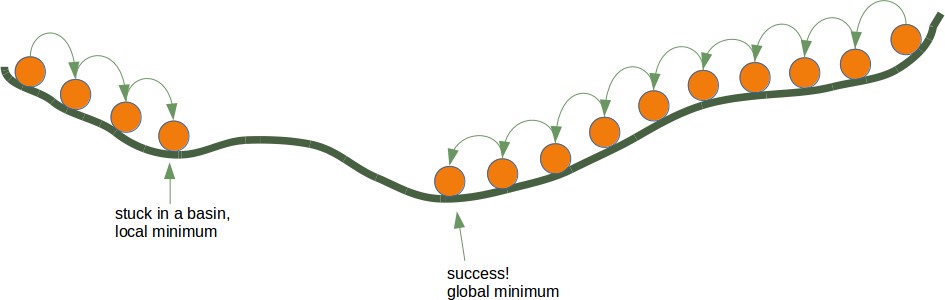

梯度下降法即比如我们目前处在一个大山的某处，不知道如何下山，于是决定走一步算一步，也就是每走到一个位置，求当前位置的梯度，沿着梯度的负方向，即当前最陡峭的位置向下走一步，然后继续重复上步；一直走到我们觉得我们走到了山脚，当然，这样我们可能走不到山脚，而是走到某一个局部的山峰低处。

当然如果损失函数是凸函数，梯度下降 得到的解一定是全局最优解。

BP 算法的实质是求取误差函数最小值问题，通过多个样本的反复训练，一般采用梯度下降法，按误差函数的负梯度方向修改系数。

(4) 训练及测试

采用第一种采样方法，产生训练数据和测试数据，batch_size大小设置为32 训练轮数为3000轮，学习率为0.001，将训练数据送入bp网络中进行训练。

03 存在的问题及解决方案

模型拟合边界数据效果很不好，用第一种数据取样方法，由于对边界数据取样少，所以使得模型对边界数据欠拟合；

04 算法评估

(1) 问题复杂程度

(2)采样方法

(3)学习率

(4)样本数目

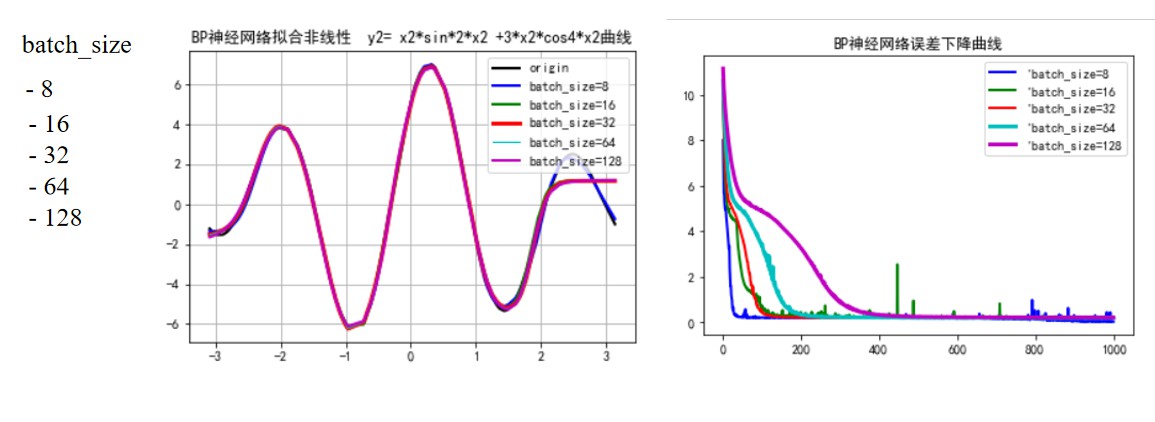

(5)批量数目

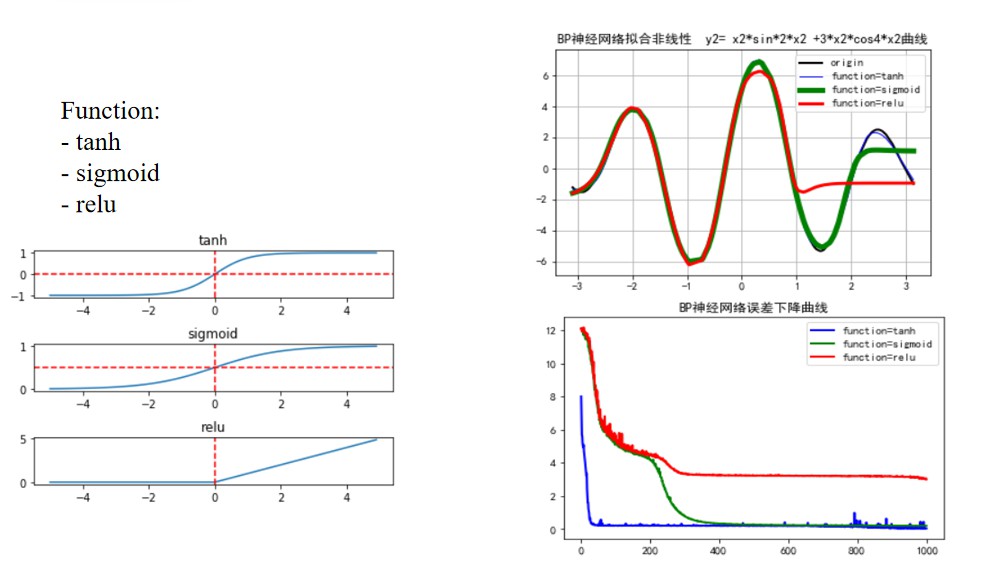

(6)激励函数

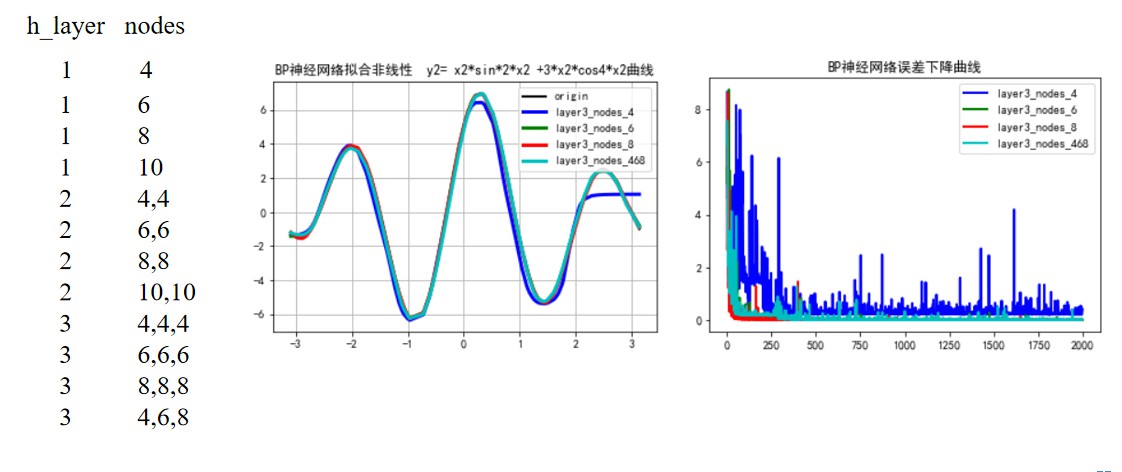

(7)隐藏层层数及节点个数

05 代码展示

# python- Back Propagation# coding=utf-8import numpy as npimport matplotlib.pyplot as pltplt.rcParams['font.sans-serif'] = ['SimHei']  # 用于正常显示中文标签plt.rcParams['axes.unicode_minus'] = False  # 用来正常显示负号# 定义数据集分割函数def train_test_split(x, y, test_ratio=0.3, seed=None):    if seed:        np.random.seed(seed)    shuffled_indexs = np.random.permutation(len(x))    test_size = int(len(x) * test_ratio)    train_index = shuffled_indexs[test_size:]    test_index = shuffled_indexs[:test_size]    train_index = np.sort(train_index)    test_index = np.sort(test_index)    return x[train_index], x[test_index], y[train_index], y[test_index]# 定义functiondef f(a, b, c, d, x):    return a * np.sin(b * x) + c * np.cos(d * x)def f1(a, b, c, d, x):    return a * x * np.sin(b * x) + c * x * np.cos(d * x)# 随机采样def load_data(step, a, b, c, d):    x = np.linspace(-np.pi, np.pi, step).T    x = np.expand_dims(x, -1)    y = f(a, b, c, d, x) + f(3,3,3,3,x)    x_train, x_test, y_train, y_test = train_test_split(x, y, seed=2019)    return x_train, y_train, x_test, y_test# 均匀采样def load_train_data(step, a, b, c, d):    x_train = np.linspace(-np.pi, np.pi, step).T    x_train = np.expand_dims(x_train, -1)    y_train = f(a, b, c, d, x_train)  + f(3,3,3,3,x_train)    return x_train, y_traindef load_test_data(step, a, b, c, d):    x_test = np.linspace(-np.pi, np.pi, step).T    x_test = np.expand_dims(x_test, -1)    y_test = f(a, b, c, d, x_test)    y_test = f(a, b, c, d, x_test) + f(3, 3, 3, 3, x_test)    return x_test, y_test# 归一化数据def normalize(data):    data_min, data_max = data.min(), data.max()    data = (data - data_min) / (data_max - data_min)    return data# 激活函数tanhdef tanh(z):    return np.tanh(z)def tanh_derivative(z):    return 1.0 - np.tanh(z) * np.tanh(z)def sigmoid(z):    return 1 / (1 + np.exp(-z))def sigmoid_derivative(z):    return sigmoid(z) * (1 - sigmoid(z))def relu(z):    return np.maximum(0, z)def relu_derivative(z):    if (z >= 0):        return 1    else:        return 0# 损失函数def loss_derivative(output_activations, y):    return 2 * (output_activations - y)def mean_squared_error(predictY, realY):    Y = np.array(realY)    return np.sum((predictY - Y) ** 2) / realY.shape[0]# BP神经网络类class BP:    # BP神经网络初始化    def __init__(self, sizes, activity, activity_derivative, loss_derivative):        self.num_layers = len(sizes)        self.sizes = sizes        self.biases = [np.zeros((nueron, 1)) for nueron in sizes[1:]]        self.weights = [np.random.randn(next_layer_nueron, nueron) for nueron, next_layer_nueron in                        zip(sizes[:-1], sizes[1:])]        self.activity = activity        self.activity_derivative = activity_derivative        self.loss_derivative = loss_derivative    # 预测函数    def predict(self, a):        re = a.T        n = len(self.biases) - 1        for i in range(n):            b, w = self.biases[i], self.weights[i]            re = self.activity(np.dot(w, re) + b)        re = np.dot(self.weights[n], re) + self.biases[n]        return re.T    # 更新一个batch的值    def update_batch(self, batch, learning_rate):        temp_b = [np.zeros(b.shape) for b in self.biases]        temp_w = [np.zeros(w.shape) for w in self.weights]        for x, y in batch:            delta_temp_b, delta_temp_w = self.update_parameter(x, y)            temp_w = [w + dw for w, dw in zip(temp_w, delta_temp_w)]            temp_b = [b + db for b, db in zip(temp_b, delta_temp_b)]        self.weights = [sw - (learning_rate / len(batch)) * w for sw, w in zip(self.weights, temp_w)]        self.biases = [sb - (learning_rate / len(batch)) * b for sb, b in zip(self.biases, temp_b)]    def update_parameter(self, x, y):        temp_b = [np.zeros(b.shape) for b in self.biases]        temp_w = [np.zeros(w.shape) for w in self.weights]        activation = x        activations = [x]        zs = []        n = len(self.biases)        for i in range(n):            b, w = self.biases[i], self.weights[i]            z = np.dot(w, activation) + b            zs.append(z)            if i != n - 1:                activation = self.activity(z)            else:                activation = z            activations.append(activation)        d = self.loss_derivative(activations[-1], y)        temp_b[-1] = d        temp_w[-1] = np.dot(d, activations[-2].T)        for i in range(2, self.num_layers):            z = zs[-i]            d = np.dot(self.weights[-i + 1].T, d) * self.activity_derivative(z)            temp_b[-i] = d            temp_w[-i] = np.dot(d, activations[-i - 1].T)        return (temp_b, temp_w)    def fit(self, train_data, epochs, batch_size, learning_rate, validation_data=None):        n = len(train_data)        for j in range(epochs):            np.random.shuffle(train_data)            batches = [train_data[k:k + batch_size] for k in range(0, n, batch_size)]            for batch in batches:                self.update_batch(batch, learning_rate)            if (validation_data != None):                val_pre = self.predict(validation_data[0])                print("Epoch", j + 1, '/', epochs,                      '  val loss:%12.12f' % mean_squared_error(val_pre, validation_data[1]))                losses.append(mean_squared_error(val_pre, validation_data[1]))                epoches.append(j + 1)        return epoches, lossesif __name__ == "__main__":    losses = []    epoches = []    # 设置随机种子    np.random.seed(2019)    # function函数系数设置    a, b, c, d = 2, 2, 2, 2    num_step = 500    # 随机采样    x_train, y_train, x_test, y_test = load_data(num_step, a, b, c, d)    # 均匀采样    # rate = 0.3    # num_train_step = num_step * (1 - rate)    # num_test_step = num_step * (rate)    # x_train, y_train = load_train_data(num_train_step, a, b, c, d)    # x_test, y_test = load_test_data(num_test_step, a, b, c, d)    print(x_train.shape, y_train.shape, x_test.shape, y_test.shape)    data = [(np.array([x_value]), np.array([y_value])) for x_value, y_value in zip(x_train, y_train)]    # BP神经网络参数设置    beta = 1e-2    layer = [1, 5, 5, 1]    epochs = 1000    model = BP(layer, tanh, tanh_derivative, loss_derivative)    # BP神经网络训练    epoches, losses = model.fit(train_data=data, epochs=epochs, batch_size=8, learning_rate=beta,                                 validation_data=(x_test, y_test))    # BP神经网络预测    predict = model.predict(x_test)    # 预测误差计算    loss_p = abs(predict-y_test)    sum  = sum(loss_p)    sum = sum[0]    print("误差是:","%12.12f"%(sum/100.0))    # 绘图函数    plt.figure()    plt.title("BP神经网络拟合非线性  y2= x2*sin*2*x2 +3*x2*cos4*x2曲线")    plt.plot(x_test, y_test, "-r", linewidth=2, label='origin')    plt.plot(x_test, predict, "-b", linewidth=1, label='predict')    plt.legend()    plt.grid(True)    plt.show()    plt.figure()    plt.title("BP神经网络误差下降曲线")    plt.plot(epoches, losses, "-r", linewidth=2, label="误差曲线")    plt.legend()    plt.show()
