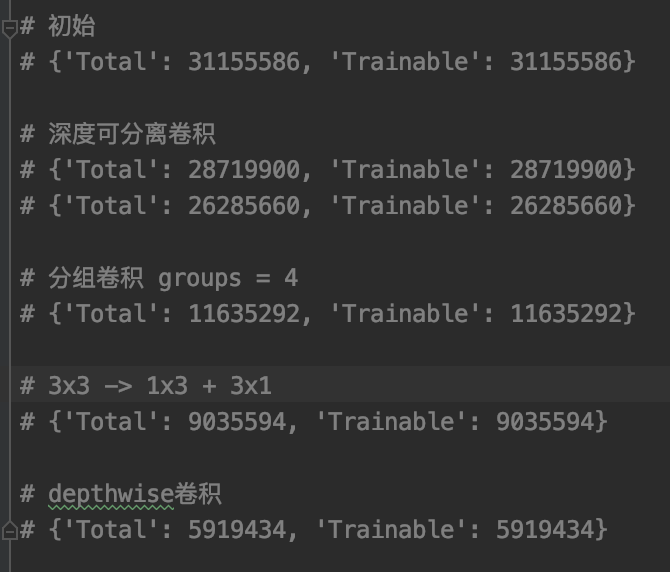

先贴一张整个过程中参数的下降量：

可以看到，最后参数量为原始的20%左右。

查看网络参数量的代码：

# 网络参数数量def get_parameter_number(net):    total_num = sum(p.numel() for p in net.parameters())    trainable_num = sum(p.numel() for p in net.parameters() if p.requires_grad)    return {'Total': total_num, 'Trainable': trainable_num}

我首先写了一个基本的Unet网络：

import torch.nn as nnimport torch.nn.functional as Fimport torchdef down_sample(in_channel, channels):    return nn.Sequential(        nn.Conv2d(in_channel, channels, kernel_size=3, padding=0, stride=1),        nn.BatchNorm2d(channels),        nn.ReLU(),        nn.Conv2d(channels, channels, kernel_size=3, padding=0, stride=1),        nn.BatchNorm2d(channels),        nn.ReLU(),    )def up_sample(in_channle):    return nn.Sequential(        nn.ConvTranspose2d(in_channle, in_channle//2, kernel_size=2, stride=2),    )def up_conv(in_channel):    return nn.Sequential(        nn.Conv2d(in_channel, in_channel//2, kernel_size=3, padding=0, stride=1),        nn.BatchNorm2d(in_channel//2),        nn.ReLU(),        nn.Conv2d(in_channel//2, in_channel//2, kernel_size=3, padding=0, stride=1),        nn.BatchNorm2d(in_channel//2),        nn.ReLU()    )def cat(x1, x2):    diff = x1.size()[2] - x2.size()[2]    x2 = F.pad(x2, [diff // 2, diff - diff // 2,                    diff // 2, diff - diff // 2])    x2 = torch.cat([x1, x2], dim=1)    return x2class Unet(nn.Module):    def __init__(self, in_channel, out_channel):        super(Unet, self).__init__()        self.down_sample1 = down_sample(in_channel, 64)        self.down_sample2 = down_sample(64, 128)        self.down_sample3 = down_sample(128, 256)        self.down_sample4 = down_sample(256, 512)        self.down_sample5 = down_sample(512, 1024)        self.pooling = nn.MaxPool2d(kernel_size=3, stride=2, padding=1)        self.up_sample1 = up_sample(1024)        self.up_sample2 = up_sample(512)        self.up_sample3 = up_sample(256)        self.up_sample4 = up_sample(128)        self.up_conv1 = up_conv(1024)        self.up_conv2 = up_conv(512)        self.up_conv3 = up_conv(256)        self.up_conv4 = up_conv(128)        self.out_conv = nn.Sequential(            nn.Conv2d(128, 64, kernel_size=3, stride=1, padding=0),            nn.BatchNorm2d(64),            nn.ReLU(),            nn.Conv2d(64, 64, kernel_size=3, padding=0, stride=1),            nn.BatchNorm2d(64),            nn.ReLU(),            nn.Conv2d(64, 2, kernel_size=3, padding=0, stride=1)        )    def forward(self, x):        x1 = self.down_sample1(x)        p1 = self.pooling(x1)        x2 = self.down_sample2(p1)        p2 = self.pooling(x2)        x3 = self.down_sample3(p2)        p3 = self.pooling(x3)        x4 = self.down_sample4(p3)        p4 = self.pooling(x4)        x5 = self.down_sample5(p4)        # torch.Size([1, 1024, 32, 32])        x6 = self.up_sample1(x5)        x6 = cat(x4, x6)        x7 = self.up_conv1(x6)        x7 = self.up_sample2(x7)        x7 = cat(x3, x7)        x8 = self.up_conv2(x7)        x8 = self.up_sample3(x8)        x8 = cat(x2, x8)        x9 = self.up_conv3(x8)        x9 = self.up_sample4(x9)        x9 = cat(x1, x9)        output = self.out_conv(x9)        return output

然后我测试了一下参数量为：

{'Total': 31155586, 'Trainable': 31155586}

然后呢，我将下采样过程中的普通卷积采用了深度可分离卷积，也就是改变了上面的down_sample函数：

def down_sample(in_channel, channels):    return nn.Sequential(        nn.Conv2d(in_channel, in_channel, kernel_size=3),        nn.BatchNorm2d(in_channel),        nn.ReLU(),        nn.Conv2d(in_channel, channels, kernel_size=1, padding=0, stride=1),        nn.BatchNorm2d(channels),        nn.ReLU(),        nn.Conv2d(channels, channels, kernel_size=3, padding=0, stride=1),        nn.BatchNorm2d(channels),        nn.ReLU(),    )

接着查看了一下网络参数：

{'Total': 28719900, 'Trainable': 28719900}

可以看到，网络参数明显降低。

接着呢，我又将上采样的普通卷积转化为了深度可分离卷积，也就是改变了up_conv函数：

def up_conv(in_channel):    return nn.Sequential(        nn.Conv2d(in_channel, in_channel // 2, kernel_size=1, padding=0, stride=1),        nn.BatchNorm2d(in_channel // 2),        nn.ReLU(),        nn.Conv2d(in_channel // 2, in_channel//2, kernel_size=3, padding=0, stride=1),        nn.BatchNorm2d(in_channel//2),        nn.ReLU(),        nn.Conv2d(in_channel//2, in_channel//2, kernel_size=3, padding=0, stride=1),        nn.BatchNorm2d(in_channel//2),        nn.ReLU()    )

然后查看参数：

{'Total': 26285660, 'Trainable': 26285660}

可以看到，又降低了。

因为我们知道，Unet网络的卷积下采样过程对特征图的大小影响不大，所以网络参数降低的不多。

然后呢？我采用group4为4的分组卷积，再次修改了上面两个函数：

def down_sample(in_channel, channels):    return nn.Sequential(        nn.Conv2d(in_channel, in_channel, kernel_size=3),        nn.BatchNorm2d(in_channel),        nn.ReLU(),        nn.Conv2d(in_channel, channels, kernel_size=1, padding=0, stride=1),        nn.BatchNorm2d(channels),        nn.ReLU(),        nn.Conv2d(channels, channels, kernel_size=3, padding=0, stride=1, groups=4),        nn.BatchNorm2d(channels),        nn.ReLU(),    )

def up_conv(in_channel):    return nn.Sequential(        nn.Conv2d(in_channel, in_channel // 2, kernel_size=1, padding=0, stride=1, groups=4),        nn.BatchNorm2d(in_channel // 2),        nn.ReLU(),        nn.Conv2d(in_channel // 2, in_channel//2, kernel_size=3, padding=0, stride=1, groups=4),        nn.BatchNorm2d(in_channel//2),        nn.ReLU(),        nn.Conv2d(in_channel//2, in_channel//2, kernel_size=3, padding=0, stride=1, groups=4),        nn.BatchNorm2d(in_channel//2),        nn.ReLU()    )

然后呢？可以看到，此时参数量为：

{'Total': 11635292, 'Trainable': 11635292}

参数量已经比开始的时候降低了3倍多了。

接着呢，我采用了Inception v3中的结构，也就是将其中的3x3卷积换成了1x3和3x1卷积，查看参数：

{'Total': 9035594, 'Trainable': 9035594}

又降低了。

最后，我将所有的普通卷积转化为了depthwise卷积，也就是groups = inchannel，观察参数：

{'Total': 5919434, 'Trainable': 5919434}
