1 i2c理论

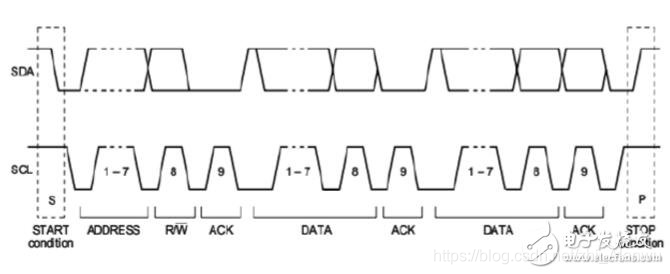

1.1 i2c时序图

启动信号：

　　SCL为高电平的时候，SDA由高电平向低电平跳变。 结束信号： SCL为高电平的时候，SDA由低电平向高电平跳变。 应答信号： I2C总线上的所有数据都是以8位字节传送的，发送器每发送一个字节，就在时钟脉冲9期间释放数据线，由接收器反馈一个应答信号。应答信号为低电平时，规定为有效应答位（ACK简称应答位），表示接收器已经成功地接收了该字节；应答信号为高电平时，规定为非应答位（NACK），一般表示接收器接收该字节没有成功，对于反馈有效应答位ACK的要求是，接收器在第9个时钟脉冲之前的低电平期间将SDA线拉低，并且确保在该时钟的高电平期间为稳定的低电平。如果接收器是主控器，则在它收到最后一个字节后，发送一个NACK信号，以通知被控发送器结束数据发送，并释放SDA线，以便主控接收器发送一个停止信号P。 写操作： 　　开始信号：主机+从设备地址+写命令，从机应答，应答成功，表示有这个设备，然后主机+设备内部寄存器地址，此时不用再加写命令控制字，从机应答，应答成功，表示设备内有这个地址，主机写入数据，从机应答，是否继续发送，不发送的话，发送停止信号P。 读时序： 　　要想读设备，首先要知道将要所读取设备的地址告诉从设备，从设备才能将数据放到（发送）SDA上使主设备读取，从设备将数据放入SDA上的过程，由硬件主动完成，不用人为的写入。所以首先先写入从机地址，然后+写控制命令，从机应答，应答成功，表示有这个设备，然后写入内部寄存器地址，此时不用再加写命令控制字，从机应答，应答成功，表示设备内有这个地址。然后主机继续发出：写入从机地址，然后+读命令，从机应答，应答成功，此时便可以读取数据了，从设备已经将数据放入到SDA上了。地址跟设备已经验证了，不用再进行验证 　　 数据位传送 进行数据传送时，在SCL呈现高电平期间，SDA上的电平必须保持稳定，低电平为数据0，高电平为数据1。只有在SCL为低电平期间，才允许SDA上的电平改变状态。逻辑0的电平为低电压，而逻辑1的电平取决于器件本身的正电源电压VDD（当使用独立电源时）。数据位的传输是边沿触发。

2 .h

#ifndef IIC_H#define IIC_H#include

    #include

     #include "nrf_gpio.h"/*lint -e415 -e845 -save "Out of bounds access" */#define TWI_SDA_STANDARD0_NODRIVE1_HRS() do { \        NRF_GPIO->PIN_CNF[sda_hrs] = (GPIO_PIN_CNF_SENSE_Disabled << GPIO_PIN_CNF_SENSE_Pos) \        |(GPIO_PIN_CNF_DRIVE_S0D1 << GPIO_PIN_CNF_DRIVE_Pos)    \        |(GPIO_PIN_CNF_PULL_Pullup << GPIO_PIN_CNF_PULL_Pos)  \        |(GPIO_PIN_CNF_INPUT_Connect << GPIO_PIN_CNF_INPUT_Pos) \        |(GPIO_PIN_CNF_DIR_Input << GPIO_PIN_CNF_DIR_Pos);  \} while (0) /*!< Configures SDA pin to Standard-0, No-drive 1 */#define TWI_SCL_STANDARD0_NODRIVE1_HRS() do { \        NRF_GPIO->PIN_CNF[scl_hrs] = (GPIO_PIN_CNF_SENSE_Disabled << GPIO_PIN_CNF_SENSE_Pos) \        |(GPIO_PIN_CNF_DRIVE_S0D1 << GPIO_PIN_CNF_DRIVE_Pos)    \        |(GPIO_PIN_CNF_PULL_Pullup << GPIO_PIN_CNF_PULL_Pos)  \        |(GPIO_PIN_CNF_INPUT_Connect << GPIO_PIN_CNF_INPUT_Pos) \        |(GPIO_PIN_CNF_DIR_Input << GPIO_PIN_CNF_DIR_Pos);  \} while (0) /*!< Configures SCL pin to Standard-0, No-drive 1 */#define TWI_SCL_HIGH_HRS()   do { NRF_GPIO->OUTSET = (1UL << scl_hrs); } while(0)   /*!< Pulls SCL line high */#define TWI_SCL_LOW_HRS()    do { NRF_GPIO->OUTCLR = (1UL << scl_hrs); } while(0)   /*!< Pulls SCL line low  */#define TWI_SDA_HIGH_HRS()   do { NRF_GPIO->OUTSET = (1UL << sda_hrs);  } while(0)   /*!< Pulls SDA line high */#define TWI_SDA_LOW_HRS()    do { NRF_GPIO->OUTCLR = (1UL << sda_hrs);  } while(0)   /*!< Pulls SDA line low  */#define TWI_SDA_INPUT_HRS()  do { NRF_GPIO->DIRCLR = (1UL << sda_hrs);  } while(0)   /*!< Configures SDA pin as input  */#define TWI_SDA_OUTPUT_HRS() do { NRF_GPIO->DIRSET = (1UL << sda_hrs);  } while(0)   /*!< Configures SDA pin as output */#define TWI_SCL_OUTPUT_HRS() do { NRF_GPIO->DIRSET = (1UL << scl_hrs); } while(0)   /*!< Configures SCL pin as output */#define TWI_SDA_READ_HRS() ((NRF_GPIO->IN >> sda_hrs) & 0x1UL)                     /*!< Reads current state of SDA */#define TWI_SCL_READ_HRS() ((NRF_GPIO->IN >> scl_hrs) & 0x1UL)                    /*!< Reads current state of SCL */#define TWI_READ_BIT_HRS                 (0x01)        //!< If this bit is set in the address field, transfer direction is from slave to master.#define TWI_ISSUE_STOP_HRS               ((bool)true)  //!< Parameter for @ref twi_master_transfer#define TWI_DONT_ISSUE_STOP_HRS          ((bool)false) //!< Parameter for @ref twi_master_transfer#define HRS_US   1#define TWI_MASTER_TIMEOUT_COUNTER_LOAD_VALUE_HRS   20//1000#define TWI_ISSUE_STOP               ((bool)true)  //!< Parameter for @ref twi_master_transfer#define TWI_DONT_ISSUE_STOP          ((bool)false) //!< Parameter for @ref twi_master_transferbool hrs_iic_init(uint8_t sda_pin,uint8_t scl_pin);// bool iic_transfer(uint8_t address, uint8_t *data, uint16_t data_length, bool issue_stop_condition);bool hrs_iic_transfer(uint8_t address, uint8_t * data, uint16_t data_length, bool issue_stop_condition);#endif //TWI_MASTER_H



2.1 .c文件

/* Copyright (c) 2009 Nordic Semiconductor. All Rights Reserved. * * The information contained herein is property of Nordic Semiconductor ASA. * Terms and conditions of usage are described in detail in NORDIC * SEMICONDUCTOR STANDARD SOFTWARE LICENSE AGREEMENT. * * Licensees are granted free, non-transferable use of the information. NO * WARRANTY of ANY KIND is provided. This heading must NOT be removed from * the file. * */#include "iic_io.h"#include "utility.h"#define  TWI_DELAY_HRS() delay_us(1)#define IIC_DELAY(A)    delay_us((A)*100)uint8_t sda_hrs,scl_hrs;static bool twi_master_clear_bus(void);static bool twi_master_issue_startcondition(void);static bool twi_master_issue_stopcondition(void);static bool twi_master_clock_byte(uint_fast8_t databyte);static bool twi_master_clock_byte_in(uint8_t * databyte, bool ack);static bool twi_master_wait_while_scl_low(void);bool hrs_iic_init(uint8_t sda_pin,uint8_t scl_pin){
       // Configure both pins to output Standard 0, No-drive (open-drain) 1    sda_hrs =sda_pin;    scl_hrs=scl_pin;	    TWI_SDA_STANDARD0_NODRIVE1_HRS();    TWI_SCL_STANDARD0_NODRIVE1_HRS(); /*lint !e416 "Creation of out of bounds pointer" */    // Configure SCL as output    TWI_SCL_HIGH_HRS();    TWI_SCL_OUTPUT_HRS();    // Configure SDA as output    TWI_SDA_HIGH_HRS();    TWI_SDA_OUTPUT_HRS();    return twi_master_clear_bus();}bool hrs_iic_transfer(uint8_t address, uint8_t * data, uint16_t data_length, bool issue_stop_condition){
       bool transfer_succeeded = true;    transfer_succeeded &= twi_master_issue_startcondition();    transfer_succeeded &= twi_master_clock_byte(address);    if (address & TWI_READ_BIT_HRS)    {
           /* Transfer direction is from Slave to Master */        while (data_length-- && transfer_succeeded)        {
               // To indicate to slave that we've finished transferring last data byte            // we need to NACK the last transfer.            if (data_length == 0)            {
                   transfer_succeeded &= twi_master_clock_byte_in(data, (bool)false);            }            else            {
                   transfer_succeeded &= twi_master_clock_byte_in(data, (bool)true);            }            data++;        }    }    else    {
           /* Transfer direction is from Master to Slave */        while (data_length-- && transfer_succeeded)        {
               transfer_succeeded &= twi_master_clock_byte(*data);            data++;        }    }    if (issue_stop_condition || !transfer_succeeded)    {
           transfer_succeeded &= twi_master_issue_stopcondition();    }    return transfer_succeeded;}/** * @brief Function for detecting stuck slaves and tries to clear the bus. * * @return * @retval false Bus is stuck. * @retval true Bus is clear. */static bool twi_master_clear_bus(void){
       bool bus_clear;    uint_fast8_t i;    TWI_SDA_HIGH_HRS();    TWI_SCL_HIGH_HRS();    TWI_DELAY_HRS();    if (TWI_SDA_READ_HRS() == 1 && TWI_SCL_READ_HRS() == 1)    {
           bus_clear = true;    }    else if (TWI_SCL_READ_HRS() == 1)    {
           bus_clear = false;        // Clock max 18 pulses worst case scenario(9 for master to send the rest of command and 9 for slave to respond) to SCL line and wait for SDA come high        for ( i = 18; i--;)        {
               TWI_SCL_LOW_HRS();            TWI_DELAY_HRS();            TWI_SCL_HIGH_HRS();            TWI_DELAY_HRS();            if (TWI_SDA_READ_HRS() == 1)            {
                   bus_clear = true;                break;            }        }    }    else    {
           bus_clear = false;    }    return bus_clear;}/** * @brief Function for issuing TWI START condition to the bus. * * START condition is signaled by pulling SDA low while SCL is high. After this function SCL and SDA will be low. * * @return * @retval false Timeout detected * @retval true Clocking succeeded */static bool twi_master_issue_startcondition(void){
       // Make sure both SDA and SCL are high before pulling SDA low.    TWI_SDA_HIGH_HRS();    TWI_DELAY_HRS();    if (!twi_master_wait_while_scl_low())    {
           return false;    }    TWI_SDA_LOW_HRS();    TWI_DELAY_HRS();    // Other module function expect SCL to be low    TWI_SCL_LOW_HRS();    TWI_DELAY_HRS();    return true;}/** * @brief Function for issuing TWI STOP condition to the bus. * * STOP condition is signaled by pulling SDA high while SCL is high. After this function SDA and SCL will be high. * * @return * @retval false Timeout detected * @retval true Clocking succeeded */static bool twi_master_issue_stopcondition(void){
       TWI_SDA_LOW_HRS();    TWI_DELAY_HRS();    if (!twi_master_wait_while_scl_low())    {
           return false;    }    TWI_SDA_HIGH_HRS();    TWI_DELAY_HRS();    return true;}/** * @brief Function for clocking one data byte out and reads slave acknowledgment. * * Can handle clock stretching. * After calling this function SCL is low and SDA low/high depending on the * value of LSB of the data byte. * SCL is expected to be output and low when entering this function. * * @param databyte Data byte to clock out. * @return * @retval true Slave acknowledged byte. * @retval false Timeout or slave didn't acknowledge byte. */static bool twi_master_clock_byte(uint_fast8_t databyte){
       uint_fast8_t i;    bool transfer_succeeded = true;    /** @snippet [TWI SW master write] */    // Make sure SDA is an output    TWI_SDA_OUTPUT_HRS();    // MSB first    for ( i = 0x80; i != 0; i >>= 1)    {
           TWI_SCL_LOW_HRS();        TWI_DELAY_HRS();        if (databyte & i)        {
               TWI_SDA_HIGH_HRS();        }        else        {
               TWI_SDA_LOW_HRS();        }        if (!twi_master_wait_while_scl_low())        {
               transfer_succeeded = false; // Timeout            break;        }    }    // Finish last data bit by pulling SCL low    TWI_SCL_LOW_HRS();    TWI_DELAY_HRS();    /** @snippet [TWI SW master write] */    // Configure TWI_SDA pin as input for receiving the ACK bit    TWI_SDA_INPUT_HRS();    // Give some time for the slave to load the ACK bit on the line    TWI_DELAY_HRS();    // Pull SCL high and wait a moment for SDA line to settle    // Make sure slave is not stretching the clock    transfer_succeeded &= twi_master_wait_while_scl_low();    // Read ACK/NACK. NACK == 1, ACK == 0    transfer_succeeded &= !(TWI_SDA_READ_HRS());    // Finish ACK/NACK bit clock cycle and give slave a moment to release control    // of the SDA line    TWI_SCL_LOW_HRS();    TWI_DELAY_HRS();    // Configure TWI_SDA pin as output as other module functions expect that    TWI_SDA_OUTPUT_HRS();    return transfer_succeeded;}/** * @brief Function for clocking one data byte in and sends ACK/NACK bit. * * Can handle clock stretching. * SCL is expected to be output and low when entering this function. * After calling this function, SCL is high and SDA low/high depending if ACK/NACK was sent. * * @param databyte Data byte to clock out. * @param ack If true, send ACK. Otherwise send NACK. * @return * @retval true Byte read succesfully * @retval false Timeout detected */static bool twi_master_clock_byte_in(uint8_t *databyte, bool ack){
       uint_fast8_t i;    uint_fast8_t byte_read          = 0;    bool         transfer_succeeded = true;    /** @snippet [TWI SW master read] */    // Make sure SDA is an input    TWI_SDA_INPUT_HRS();    // SCL state is guaranteed to be high here    // MSB first    for ( i = 0x80; i != 0; i >>= 1)    {
           if (!twi_master_wait_while_scl_low())        {
               transfer_succeeded = false;            break;        }        if (TWI_SDA_READ_HRS())        {
               byte_read |= i;        }        else        {
               // No need to do anything        }        TWI_SCL_LOW_HRS();        TWI_DELAY_HRS();    }    // Make sure SDA is an output before we exit the function    TWI_SDA_OUTPUT_HRS();    /** @snippet [TWI SW master read] */    *databyte = (uint8_t)byte_read;    // Send ACK bit    // SDA high == NACK, SDA low == ACK    if (ack)    {
           TWI_SDA_LOW_HRS();    }    else    {
           TWI_SDA_HIGH_HRS();    }    // Let SDA line settle for a moment    TWI_DELAY_HRS();    // Drive SCL high to start ACK/NACK bit transfer    // Wait until SCL is high, or timeout occurs    if (!twi_master_wait_while_scl_low())    {
           transfer_succeeded = false; // Timeout    }    // Finish ACK/NACK bit clock cycle and give slave a moment to react    TWI_SCL_LOW_HRS();    TWI_DELAY_HRS();    return transfer_succeeded;}#include "nrf_delay.h"/** * @brief Function for pulling SCL high and waits until it is high or timeout occurs. * * SCL is expected to be output before entering this function. * @note If TWI_MASTER_TIMEOUT_COUNTER_LOAD_VALUE is set to zero, timeout functionality is not compiled in. * @return * @retval true SCL is now high. * @retval false Timeout occurred and SCL is still low. */static bool twi_master_wait_while_scl_low(void){
   #if TWI_MASTER_TIMEOUT_COUNTER_LOAD_VALUE_HRS != 0    uint32_t volatile timeout_counter = TWI_MASTER_TIMEOUT_COUNTER_LOAD_VALUE_HRS;#endif    // Pull SCL high just in case if something left it low    TWI_SCL_HIGH_HRS();    TWI_DELAY_HRS();    while (TWI_SCL_READ_HRS() == 0)    {
           // If SCL is low, one of the slaves is busy and we must wait        #if TWI_MASTER_TIMEOUT_COUNTER_LOAD_VALUE_HRS != 0		IIC_DELAY(20);		//		TWI_DELAY_HRS();        if (timeout_counter-- == 0)        {
   			            // If timeout_detected, return false            return false;        }#endif    }    return true;}/*lint --flb "Leave library region" */

3 utility的文件

主要是延时函数 .c文件

#include "utility.h"void delay_us(uint32_t us){
       uint32_t i,j;    for(j=0; j

.h文件

#ifndef UTILITY_H___#define UTILITY_H___#include "stdint.h"//#include "nrf52.h"void delay_us(uint32_t us);void delay_ms(uint32_t ms);#endif
