作用:
跨线程通信,异步通信。当子线程中进行耗时操作后需要更新UI时,通过Handler将有关的UI操作切换到主线程中执行。

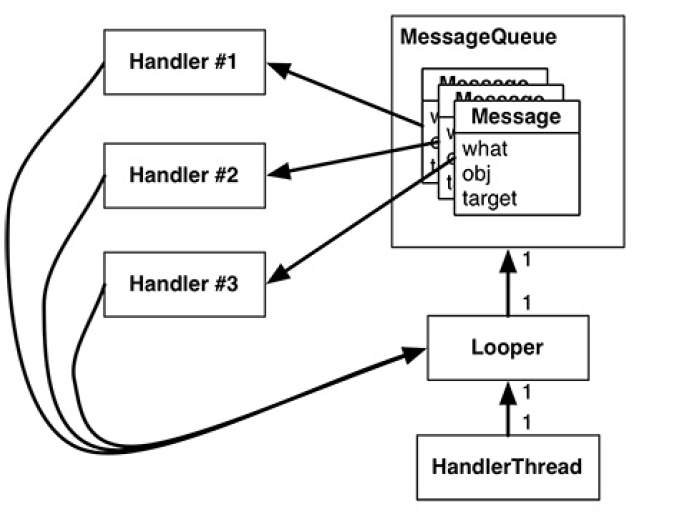

四要素:
Message(消息):需要被传递的消息,其中包含了消息标识(what),消息处理数据和处理对象(arg1,arg2,obj),发送该消息的Handler对象(target)等,由MessageQueue统一列队,最终由Handler处理。
MessageQueue(消息队列):由Looper负责管理,管理Handler发送过来的Message,其底层实现采用的是单链表。
Handler(处理者):负责Message的发送及处理。通过 Handler.sendMessage() 方法把消息发送给Looper管理的MessageQueue并通过Handler.handleMessage()方法处理Looper分给它的消息。
Looper(消息循环器):每个线程只有一个Looper,负责管理MessageQueue,通过Looper.loop()会不断地从MessageQueue中取出消息(Message),并将消息分给对应的目标处理者(Handler)处理。
消息只能在某个具体的Looper上消耗,因此每个Handler都会绑定一个Looper,但是多个Handler可以绑定同一个Looper(这也是在主线程中能够创建新的Handler的原因)。
源码分析
- 每个线程只有一个Looper对象,主线程的Looper对象由Android系统调用Looper.prepareMainLooper()进行创建
/** * Initialize the current thread as a looper, marking it as an * application's main looper. The main looper for your application * is created by the Android environment, so you should never need * to call this function yourself. See also: {@link #prepare()} */ public static void prepareMainLooper() { prepare(false); synchronized (Looper.class) { if (sMainLooper != null) { throw new IllegalStateException("The main Looper has already been prepared."); } sMainLooper = myLooper(); } }
Looper里面有个静态对象sThreadLocal维护着所有线程对应的Looper对象
// sThreadLocal.get() will return null unless you've called prepare(). static final ThreadLocalsThreadLocal = new ThreadLocal ();
- Looper里面维护着一个MessageQueue对象mQueue
final MessageQueue mQueue;
该mQueue对象在Looper创建的时候被创建
private Looper(boolean quitAllowed) { mQueue = new MessageQueue(quitAllowed); mThread = Thread.currentThread(); }
- Handler维护着mLooper对象和mQueue对象
final Looper mLooper; final MessageQueue mQueue;
mLooper对象就是当前线程的Looper对象,mQueue对象就是当前线程的Looper对象中维护的MessageQueue 对象
/** * Use the {@link Looper} for the current thread with the specified callback interface * and set whether the handler should be asynchronous. * * Handlers are synchronous by default unless this constructor is used to make * one that is strictly asynchronous. * * Asynchronous messages represent interrupts or events that do not require global ordering * with respect to synchronous messages. Asynchronous messages are not subject to * the synchronization barriers introduced by {@link MessageQueue#enqueueSyncBarrier(long)}. * * @param callback The callback interface in which to handle messages, or null. * @param async If true, the handler calls {@link Message#setAsynchronous(boolean)} for * each {@link Message} that is sent to it or {@link Runnable} that is posted to it. * * @hide */ public Handler(Callback callback, boolean async) { if (FIND_POTENTIAL_LEAKS) { final Class klass = getClass(); if ((klass.isAnonymousClass() || klass.isMemberClass() || klass.isLocalClass()) && (klass.getModifiers() & Modifier.STATIC) == 0) { Log.w(TAG, "The following Handler class should be static or leaks might occur: " + klass.getCanonicalName()); } } mLooper = Looper.myLooper(); if (mLooper == null) { throw new RuntimeException( "Can't create handler inside thread that has not called Looper.prepare()"); } mQueue = mLooper.mQueue; mCallback = callback; mAsynchronous = async; }
当调用Handler的sendMessage()方法发送消息时
/** * Pushes a message onto the end of the message queue after all pending messages * before the current time. It will be received in {@link #handleMessage}, * in the thread attached to this handler. * * @return Returns true if the message was successfully placed in to the * message queue. Returns false on failure, usually because the * looper processing the message queue is exiting. */ public final boolean sendMessage(Message msg) { return sendMessageDelayed(msg, 0); }
/** * Enqueue a message into the message queue after all pending messages * before the absolute time (in milliseconds) uptimeMillis. * The time-base is {@link android.os.SystemClock#uptimeMillis}. * Time spent in deep sleep will add an additional delay to execution. * You will receive it in {@link #handleMessage}, in the thread attached * to this handler. * * @param uptimeMillis The absolute time at which the message should be * delivered, using the * {@link android.os.SystemClock#uptimeMillis} time-base. * * @return Returns true if the message was successfully placed in to the * message queue. Returns false on failure, usually because the * looper processing the message queue is exiting. Note that a * result of true does not mean the message will be processed -- if * the looper is quit before the delivery time of the message * occurs then the message will be dropped. */ public boolean sendMessageAtTime(Message msg, long uptimeMillis) { MessageQueue queue = mQueue; if (queue == null) { RuntimeException e = new RuntimeException( this + " sendMessageAtTime() called with no mQueue"); Log.w("Looper", e.getMessage(), e); return false; } return enqueueMessage(queue, msg, uptimeMillis); }
最终会调用enqueueMessage()方法将消息加入消息队列
private boolean enqueueMessage(MessageQueue queue, Message msg, long uptimeMillis) { msg.target = this; if (mAsynchronous) { msg.setAsynchronous(true); } return queue.enqueueMessage(msg, uptimeMillis); }
Looper的loop()方法一直循环读取消息队列中的消息
/** * Run the message queue in this thread. Be sure to call * {@link #quit()} to end the loop. */ public static void loop() { final Looper me = myLooper(); if (me == null) { throw new RuntimeException("No Looper; Looper.prepare() wasn't called on this thread."); } final MessageQueue queue = me.mQueue; // Make sure the identity of this thread is that of the local process, // and keep track of what that identity token actually is. Binder.clearCallingIdentity(); final long ident = Binder.clearCallingIdentity(); for (;;) { Message msg = queue.next(); // might block if (msg == null) { // No message indicates that the message queue is quitting. return; } // This must be in a local variable, in case a UI event sets the logger final Printer logging = me.mLogging; if (logging != null) { logging.println(">>>>> Dispatching to " + msg.target + " " + msg.callback + ": " + msg.what); } final long slowDispatchThresholdMs = me.mSlowDispatchThresholdMs; final long traceTag = me.mTraceTag; if (traceTag != 0 && Trace.isTagEnabled(traceTag)) { Trace.traceBegin(traceTag, msg.target.getTraceName(msg)); } final long start = (slowDispatchThresholdMs == 0) ? 0 : SystemClock.uptimeMillis(); final long end; try { msg.target.dispatchMessage(msg); end = (slowDispatchThresholdMs == 0) ? 0 : SystemClock.uptimeMillis(); } finally { if (traceTag != 0) { Trace.traceEnd(traceTag); } } if (slowDispatchThresholdMs > 0) { final long time = end - start; if (time > slowDispatchThresholdMs) { Slog.w(TAG, "Dispatch took " + time + "ms on " + Thread.currentThread().getName() + ", h=" + msg.target + " cb=" + msg.callback + " msg=" + msg.what); } } if (logging != null) { logging.println("<<<<< Finished to " + msg.target + " " + msg.callback); } // Make sure that during the course of dispatching the // identity of the thread wasn't corrupted. final long newIdent = Binder.clearCallingIdentity(); if (ident != newIdent) { Log.wtf(TAG, "Thread identity changed from 0x" + Long.toHexString(ident) + " to 0x" + Long.toHexString(newIdent) + " while dispatching to " + msg.target.getClass().getName() + " " + msg.callback + " what=" + msg.what); } msg.recycleUnchecked(); } }
并调用Handler的dispatchMessage()方法进行消息分发
/** * Handle system messages here. */ public void dispatchMessage(Message msg) { if (msg.callback != null) { handleCallback(msg); } else { if (mCallback != null) { if (mCallback.handleMessage(msg)) { return; } } handleMessage(msg); } }
最终调用了Handler的handleMessage()方法
/** * Subclasses must implement this to receive messages. */ public void handleMessage(Message msg) { }
总结
异步消息处理流程:
1)在主线程创建Handler对象,重写handleMessage()方法; 2)当子线程需要更新UI时,创建Message对象,通过Handler对象将消息发送出去 3)消息会被加入到Looper中维护的MessageQueue消息队列中 4)Looper的loop循环取出MessageQueue中的消息,调用Handler的dispatchMessage()方法进行消息分发,最终调用Handler的handleMessage()方法进行消息处理。其他线程如何使用消息队列的功能
Android的主线程是系统会调用Looper.prepareMainLooper()方法创建主线程的Looper对象,如果其他线程也想像UI线程一样使用消息队列的功能,要调用 Looper.prepare();
class LooperThread extends Thread { public Handler mHandler; @Override public void run() { Looper.prepare(); mHandler = new Handler() { public void handleMessage(Message msg) { // process incoming messages here } }; Looper.loop(); } }
如果没调用Looper.prepare()就创建Handler对象则会报错:
java.lang.RuntimeException: Can't create handler inside thread that has not called Looper.prepare()
原因是非主线程默认没有创建Looper对象。
主线程中的Looper.loop()一直无限循环为什么不会造成ANR
ActivityThread.java 这个类管理着主线程的操作,是主线程的入口类,这里可以看到 public static void main()方法,而main()方法正是整个Java程序的入口
public static void main(String[] args) { Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ActivityThreadMain"); SamplingProfilerIntegration.start(); // CloseGuard defaults to true and can be quite spammy. We // disable it here, but selectively enable it later (via // StrictMode) on debug builds, but using DropBox, not logs. CloseGuard.setEnabled(false); Environment.initForCurrentUser(); // Set the reporter for event logging in libcore EventLogger.setReporter(new EventLoggingReporter()); AndroidKeyStoreProvider.install(); // Make sure TrustedCertificateStore looks in the right place for CA certificates final File configDir = Environment.getUserConfigDirectory(UserHandle.myUserId()); TrustedCertificateStore.setDefaultUserDirectory(configDir); Process.setArgV0(""); Looper.prepareMainLooper(); ActivityThread thread = new ActivityThread(); thread.attach(false); if (sMainThreadHandler == null) { sMainThreadHandler = thread.getHandler(); } if (false) { Looper.myLooper().setMessageLogging(new 5412 LogPrinter(Log.DEBUG, "ActivityThread")); } // End of event ActivityThreadMain. Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); Looper.loop(); throw new RuntimeException("Main thread loop unexpectedly exited"); }
Looper.loop()方法上面已经分析过了,就是一个无限循环在读取消息进行分发,一旦退出循环,那么你的应用也就退出了。那为什么这个死循环不会造成ANR异常呢?
因为Android 的是由事件驱动的,looper.loop() 不断地接收事件、处理事件,每一个点击触摸或者说Activity的生命周期都是运行在 Looper.loop() 的控制之下,如果它停止了,应用也就停止了。只可能是某一个消息或者说对某一个消息的处理阻塞了Looper.loop()。也就说我们的代码其实就是在这个循环里面去执行的,当然不会ANR了。可以看下ActivityThread.java 中private class H extends Handler 这个Handler实现的handleMessage()方法
public void handleMessage(Message msg) { if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what)); switch (msg.what) { case LAUNCH_ACTIVITY: { Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart"); final ActivityClientRecord r = (ActivityClientRecord) msg.obj; r.packageInfo = getPackageInfoNoCheck( r.activityInfo.applicationInfo, r.compatInfo); handleLaunchActivity(r, null); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); } break; case RELAUNCH_ACTIVITY: { Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityRestart"); ActivityClientRecord r = (ActivityClientRecord) msg.obj; handleRelaunchActivity(r); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); } break; case PAUSE_ACTIVITY: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityPause"); handlePauseActivity((IBinder) msg.obj, false, (msg.arg1 & 1) != 0, msg.arg2, (msg.arg1 & 2) != 0); maybeSnapshot(); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case PAUSE_ACTIVITY_FINISHING: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityPause"); handlePauseActivity((IBinder) msg.obj, true, (msg.arg1 & 1) != 0, msg.arg2, (msg.arg1 & 1) != 0); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case STOP_ACTIVITY_SHOW: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStop"); handleStopActivity((IBinder) msg.obj, true, msg.arg2); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case STOP_ACTIVITY_HIDE: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStop"); handleStopActivity((IBinder) msg.obj, false, msg.arg2); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case SHOW_WINDOW: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityShowWindow"); handleWindowVisibility((IBinder) msg.obj, true); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case HIDE_WINDOW: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityHideWindow"); handleWindowVisibility((IBinder) msg.obj, false); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case RESUME_ACTIVITY: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityResume"); handleResumeActivity((IBinder) msg.obj, true, msg.arg1 != 0, true); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case SEND_RESULT: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityDeliverResult"); handleSendResult((ResultData) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case DESTROY_ACTIVITY: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityDestroy"); handleDestroyActivity((IBinder) msg.obj, msg.arg1 != 0, msg.arg2, false); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case BIND_APPLICATION: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "bindApplication"); AppBindData data = (AppBindData) msg.obj; handleBindApplication(data); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case EXIT_APPLICATION: if (mInitialApplication != null) { mInitialApplication.onTerminate(); } Looper.myLooper().quit(); break; case NEW_INTENT: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityNewIntent"); handleNewIntent((NewIntentData) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case RECEIVER: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "broadcastReceiveComp"); handleReceiver((ReceiverData) msg.obj); maybeSnapshot(); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case CREATE_SERVICE: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "serviceCreate"); handleCreateService((CreateServiceData) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case BIND_SERVICE: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "serviceBind"); handleBindService((BindServiceData) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case UNBIND_SERVICE: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "serviceUnbind"); handleUnbindService((BindServiceData) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case SERVICE_ARGS: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "serviceStart"); handleServiceArgs((ServiceArgsData) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case STOP_SERVICE: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "serviceStop"); handleStopService((IBinder) msg.obj); maybeSnapshot(); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case CONFIGURATION_CHANGED: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "configChanged"); mCurDefaultDisplayDpi = ((Configuration) msg.obj).densityDpi; handleConfigurationChanged((Configuration) msg.obj, null); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case CLEAN_UP_CONTEXT: ContextCleanupInfo cci = (ContextCleanupInfo) msg.obj; cci.context.performFinalCleanup(cci.who, cci.what); break; case GC_WHEN_IDLE: scheduleGcIdler(); break; case DUMP_SERVICE: handleDumpService((DumpComponentInfo) msg.obj); break; case LOW_MEMORY: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "lowMemory"); handleLowMemory(); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case ACTIVITY_CONFIGURATION_CHANGED: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityConfigChanged"); handleActivityConfigurationChanged((ActivityConfigChangeData) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case PROFILER_CONTROL: handleProfilerControl(msg.arg1 != 0, (ProfilerInfo) msg.obj, msg.arg2); break; case CREATE_BACKUP_AGENT: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "backupCreateAgent"); handleCreateBackupAgent((CreateBackupAgentData) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case DESTROY_BACKUP_AGENT: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "backupDestroyAgent"); handleDestroyBackupAgent((CreateBackupAgentData) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case SUICIDE: Process.killProcess(Process.myPid()); break; case REMOVE_PROVIDER: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "providerRemove"); completeRemoveProvider((ProviderRefCount) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case ENABLE_JIT: ensureJitEnabled(); break; case DISPATCH_PACKAGE_BROADCAST: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "broadcastPackage"); handleDispatchPackageBroadcast(msg.arg1, (String[]) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case SCHEDULE_CRASH: throw new RemoteServiceException((String) msg.obj); case DUMP_HEAP: handleDumpHeap(msg.arg1 != 0, (DumpHeapData) msg.obj); break; case DUMP_ACTIVITY: handleDumpActivity((DumpComponentInfo) msg.obj); break; case DUMP_PROVIDER: handleDumpProvider((DumpComponentInfo) msg.obj); break; case SLEEPING: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "sleeping"); handleSleeping((IBinder) msg.obj, msg.arg1 != 0); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case SET_CORE_SETTINGS: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "setCoreSettings"); handleSetCoreSettings((Bundle) msg.obj); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case UPDATE_PACKAGE_COMPATIBILITY_INFO: handleUpdatePackageCompatibilityInfo((UpdateCompatibilityData) msg.obj); break; case TRIM_MEMORY: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "trimMemory"); handleTrimMemory(msg.arg1); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; case UNSTABLE_PROVIDER_DIED: handleUnstableProviderDied((IBinder) msg.obj, false); break; case REQUEST_ASSIST_CONTEXT_EXTRAS: handleRequestAssistContextExtras((RequestAssistContextExtras) msg.obj); break; case TRANSLUCENT_CONVERSION_COMPLETE: handleTranslucentConversionComplete((IBinder) msg.obj, msg.arg1 == 1); break; case INSTALL_PROVIDER: handleInstallProvider((ProviderInfo) msg.obj); break; case ON_NEW_ACTIVITY_OPTIONS: Pairpair = (Pair ) msg.obj; onNewActivityOptions(pair.first, pair.second); break; case CANCEL_VISIBLE_BEHIND: handleCancelVisibleBehind((IBinder) msg.obj); break; case BACKGROUND_VISIBLE_BEHIND_CHANGED: handleOnBackgroundVisibleBehindChanged((IBinder) msg.obj, msg.arg1 > 0); break; case ENTER_ANIMATION_COMPLETE: handleEnterAnimationComplete((IBinder) msg.obj); break; } if (DEBUG_MESSAGES) Slog.v(TAG, "<<< done: " + codeToString(msg.what)); }
可以看见Activity的生命周期都是依靠主线程的Looper.loop(),当收到不同Message时调用Handler的handleMessage()方法进行对应的操作。
如果某个消息处理时间过长,比如你在onCreate(),onResume()里面处理耗时操作,那么下一次的消息比如用户的点击事件不能处理了,就会产生卡顿,时间一长就会造成ANR。HandlerThread
使用场景:
Android开发中很多时候需要处理耗时任务,为了避免界面卡顿,我们通常使用子线程来完成这些耗时任务,但是线程使用多了会造成资源浪费,甚至会造成OOM(详情可以参考),这时可以使用HandlerThread。public class MainActivity extends AppCompatActivity { String TAG = "MainActivity"; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); //创建一个HandlerThread HandlerThread handlerThread = new HandlerThread("HandlerThread"); handlerThread.start(); //使用HandlerThread的Looper对象创建一个Handler对象,主线程通过这Handler对象可以和handlerThread线程通信 Handler handler = new Handler(handlerThread.getLooper()) { @Override public void handleMessage(Message msg) { super.handleMessage(msg); Log.i(TAG, "handleMessage(), thread=" + Thread.currentThread().getName()); } }; handler.sendMessage(Message.obtain()); }}
常见面试题
子线程能创建Handler吗
子线程不能直接创建Handler,查看Handler构造函数
public Handler(Callback callback, boolean async) { if (FIND_POTENTIAL_LEAKS) { final Class klass = getClass(); if ((klass.isAnonymousClass() || klass.isMemberClass() || klass.isLocalClass()) && (klass.getModifiers() & Modifier.STATIC) == 0) { Log.w(TAG, "The following Handler class should be static or leaks might occur: " + klass.getCanonicalName()); } } mLooper = Looper.myLooper(); if (mLooper == null) { throw new RuntimeException( "Can't create handler inside thread " + Thread.currentThread() + " that has not called Looper.prepare()"); } mQueue = mLooper.mQueue; mCallback = callback; mAsynchronous = async; }
mLooper = Looper.myLooper();会获取当前线程的Looper对象,而非主线程是不会创建Looper对象的,所以要想在子线程中创建Handler,要先调用 Looper.prepare();
使用方法如下:class LooperThread extends Thread { public Handler mHandler; @Override public void run() { Looper.prepare(); mHandler = new Handler() { public void handleMessage(Message msg) { // process incoming messages here } }; Looper.loop(); } }
为什么不能在子线程中访问UI?
ViewRootImpl会对UI操作进行验证,禁止在子线程中访问UI:
void checkThread(){ if(mThread != Thread.currentThread()){ throw new CalledFromWrongThreadException("Only th original thread that created a view hierarchy can touch its views"); }}
源码:
Handler有关的常见面试题:
