通过遗传算法走迷宫。虽62616964757a686964616fe58685e5aeb931333337613862然图1和图2均成功走出迷宫，但是图1比图2的路径长的多，且复杂，遗传算法可以计算出有多少种可能性，并选择其中最简洁的作为运算结果。

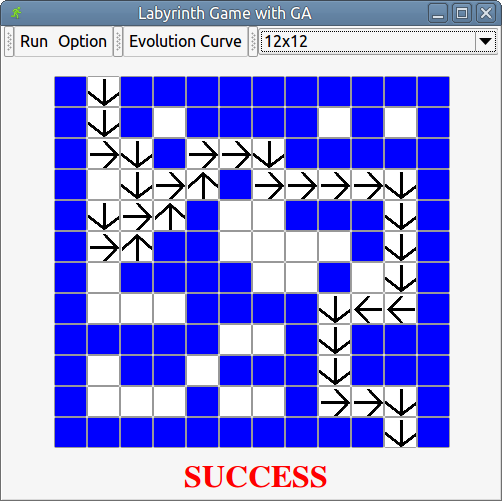

示例图1：
示例图2：
实现代码：
import java.util.ArrayList;
import java.util.Collections;
import java.util.Iterator;
import java.util.LinkedList;
import java.util.List;
import java.util.Random;
/**
* 用遗传算法走迷宫
*
* @author Orisun
*
*/
public class GA {
int gene_len; // 基因长度
int chrom_len; // 染色体长度
int population; // 种群大小
double cross_ratio; // 交叉率
double muta_ratio; // 变异率
int iter_limit; // 最多进化的代数
List individuals; // 存储当代种群的染色体
Labyrinth labyrinth;
int width; //迷宫一行有多少个格子
int height; //迷宫有多少行
public class BI {
double fitness;
boolean[] indv;
public BI(double f, boolean[] ind) {
fitness = f;
indv = ind;
}
public double getFitness() {
return fitness;
}
public boolean[] getIndv() {
return indv;
}
}
List best_individual; // 存储每一代中最优秀的个体
public GA(Labyrinth labyrinth) {
this.labyrinth=labyrinth;
this.width = labyrinth.map[0].length;
this.height = labyrinth.map.length;
chrom_len = 4 * (width+height);
gene_len = 2;
population = 20;
cross_ratio = 0.83;
muta_ratio = 0.002;
iter_limit = 300;
individuals = new ArrayList(population);
best_individual = new ArrayList(iter_limit);
}
public int getWidth() {
return width;
}
public void setWidth(int width) {
this.width = width;
}
public double getCross_ratio() {
return cross_ratio;
}
public List getBest_individual() {
return best_individual;
}
public Labyrinth getLabyrinth() {
return labyrinth;
}
public void setLabyrinth(Labyrinth labyrinth) {
this.labyrinth = labyrinth;
}
public void setChrom_len(int chrom_len) {
this.chrom_len = chrom_len;
}
public void setPopulation(int population) {
this.population = population;
}
public void setCross_ratio(double cross_ratio) {
this.cross_ratio = cross_ratio;
}
public void setMuta_ratio(double muta_ratio) {
this.muta_ratio = muta_ratio;
}
public void setIter_limit(int iter_limit) {
this.iter_limit = iter_limit;
}
// 初始化种群
public void initPopulation() {
Random r = new Random(System.currentTimeMillis());
for (int i = 0; i < population; i++) {
int len = gene_len * chrom_len;
boolean[] ind = new boolean[len];
for (int j = 0; j < len; j++)
ind[j] = r.nextBoolean();
individuals.add(ind);
}
}
// 交叉
public void cross(boolean[] arr1, boolean[] arr2) {
Random r = new Random(System.currentTimeMillis());
int length = arr1.length;
int slice = 0;
do {
slice = r.nextInt(length);
} while (slice == 0);
if (slice < length / 2) {
for (int i = 0; i < slice; i++) {
boolean tmp = arr1[i];
arr1[i] = arr2[i];
arr2[i] = tmp;
}
} else {
for (int i = slice; i < length; i++) {
boolean tmp = arr1[i];
arr1[i] = arr2[i];
arr2[i] = tmp;
}
}
}
// 变异
public void mutation(boolean[] individual) {
int length = individual.length;
Random r = new Random(System.currentTimeMillis());
individual[r.nextInt(length)] ^= false;
}
// 轮盘法选择下一代,并返回当代最高的适应度值
public double selection() {
boolean[][] next_generation = new boolean[population][]; // 下一代
int length = gene_len * chrom_len;
for (int i = 0; i < population; i++)
next_generation[i] = new boolean[length];
double[] cumulation = new double[population];
int best_index = 0;
double max_fitness = getFitness(individuals.get(best_index));
cumulation[0] = max_fitness;
for (int i = 1; i < population; i++) {
double fit = getFitness(individuals.get(i));
cumulation[i] = cumulation[i - 1] + fit;
// 寻找当代的最优个体
if (fit > max_fitness) {
best_index = i;
max_fitness = fit;
}
}
Random rand = new Random(System.currentTimeMillis());
for (int i = 0; i < population; i++)
next_generation[i] = individuals.get(findByHalf(cumulation,
rand.nextDouble() * cumulation[population - 1]));
// 把当代的最优个体及其适应度放到best_individual中
BI bi = new BI(max_fitness, individuals.get(best_index));
// printPath(individuals.get(best_index));
//System.out.println(max_fitness);
best_individual.add(bi);
// 新一代作为当前代
for (int i = 0; i < population; i++)
individuals.set(i, next_generation[i]);
return max_fitness;
}
// 折半查找
public int findByHalf(double[] arr, double find) {
if (find arr[arr.length - 1])
return -1;
int min = 0;
int max = arr.length - 1;
int medium = min;
do {
if (medium == (min + max) / 2)
break;
medium = (min + max) / 2;
if (arr[medium] < find)
min = medium;
else if (arr[medium] > find)
max = medium;
else
return medium;
} while (min < max);
return max;
}
// 计算适应度
public double getFitness(boolean[] individual) {
int length = individual.length;
// 记录当前的位置,入口点是(1,0)
int x = 1;
int y = 0;
// 根据染色体中基因的指导向前走
for (int i = 0; i < length; i++) {
boolean b1 = individual[i];
boolean b2 = individual[++i];
// 00向左走
if (b1 == false && b2 == false) {
if (x > 0 && labyrinth.map[y][x - 1] == true) {
x--;
}
}
// 01向右走
else if (b1 == false && b2 == true) {
if (x + 1 < width && labyrinth.map[y][x + 1] == true) {
x++;
}
}
// 10向上走
else if (b1 == true && b2 == false) {
if (y > 0 && labyrinth.map[y - 1][x] == true) {
y--;
}
}
// 11向下走
else if (b1 == true && b2 == true) {
if (y + 1 < height && labyrinth.map[y + 1][x] == true) {
y++;
}
}
}
int n = Math.abs(x - labyrinth.x_end) + Math.abs(y -labyrinth.y_end) + 1;
// if(n==1)
// printPath(individual);
return 1.0 / n;
}
// 运行遗传算法
public boolean run() {
// 初始化种群
initPopulation();
Random rand = new Random(System.currentTimeMillis());
boolean success = false;
while (iter_limit-- > 0) {
// 打乱种群的顺序
Collections.shuffle(individuals);
for (int i = 0; i < population - 1; i += 2) {
// 交叉
if (rand.nextDouble() < cross_ratio) {
cross(individuals.get(i), individuals.get(i + 1));
}
// 变异
if (rand.nextDouble() < muta_ratio) {
mutation(individuals.get(i));
}
}
// 种群更替
if (selection() == 1) {
success = true;
break;
}
}
return success;
}
// public static void main(String[] args) {
// GA ga = new GA(8, 8);
// if (!ga.run()) {
// System.out.println("没有找到走出迷宫的路径.");
// } else {
// int gen = ga.best_individual.size();
// boolean[] individual = ga.best_individual.get(gen - 1).indv;
// System.out.println(ga.getPath(individual));
// }
// }
// 根据染色体打印走法
public String getPath(boolean[] individual) {
int length = individual.length;
int x = 1;
int y = 0;
LinkedList stack=new LinkedList();
for (int i = 0; i < length; i++) {
boolean b1 = individual[i];
boolean b2 = individual[++i];
if (b1 == false && b2 == false) {
if (x > 0 && labyrinth.map[y][x - 1] == true) {
x--;
if(!stack.isEmpty() && stack.peek()=="右")
stack.poll();
else
stack.push("左");
}
} else if (b1 == false && b2 == true) {
if (x + 1 < width && labyrinth.map[y][x + 1] == true) {
x++;
if(!stack.isEmpty() && stack.peek()=="左")
stack.poll();
else
stack.push("右");
}
} else if (b1 == true && b2 == false) {
if (y > 0 && labyrinth.map[y - 1][x] == true) {
y--;
if(!stack.isEmpty() && stack.peek()=="下")
stack.poll();
else
stack.push("上");
}
} else if (b1 == true && b2 == true) {
if (y + 1 < height && labyrinth.map[y + 1][x] == true) {
y++;
if(!stack.isEmpty() && stack.peek()=="上")
stack.poll();
else
stack.push("下");
}
}
}
StringBuilder sb=new StringBuilder(length/4);
Iterator iter=stack.descendingIterator();
while(iter.hasNext())
sb.append(iter.next());
return sb.toString();
}
}
