Unity 5.2.3f1 (64-bit)

DragonBones  PRO5.0

------------------------------------------------------------------------------------保存 DB 的 数据 到对应 的文件夹内 ，再继续 下面的操作

------------------------------------------------------------------------------------

# DragonBones Unity Library

## How to use [Demos](./Demos/) 怎么使用DragonBones到Unity的Demos文件

1. Create a Unity project and import [Demos files](./Demos/) to override the project files.

创建一个Unity工程，导入[Demos files](./Demos/)文件到工程文件

2. Import the [DragonBones common source code](../DragonBones/src/) to project Assets/Scripts.

导入[DragonBones common source code]到工程的Assets/Scripts。文件路径为(../DragonBones/src/)

3. Import the [DragonBones Unity source code](./src/) to project Assets/Scripts.

导入[DragonBones common source code]到工程的Assets/Scripts。文件路径为(./src/)

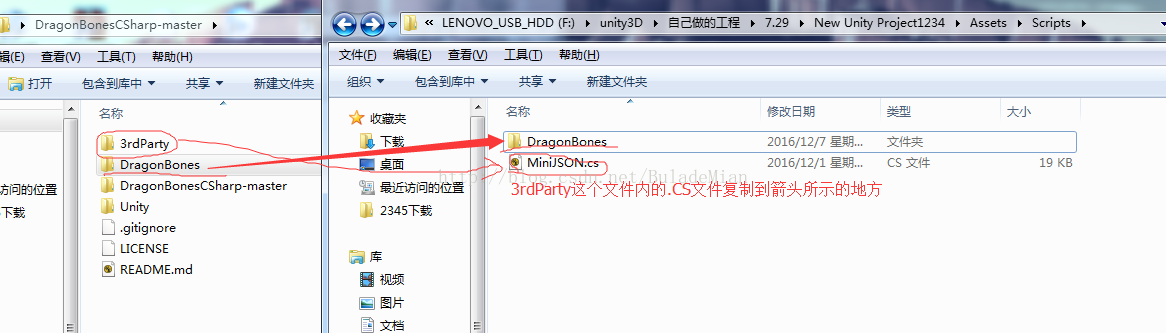

4. Import the [3rdParty source code](../3rdParty/) to project Assets/Scripts.

导入[3rdParty source code]到工程的Assets/Scripts。文件路径为(../3rdParty/)

5. Run project and have fun.

运行Unity工程

*Notice* * Maker sure project structure like this: ``` project     |-- Assets         |-- Scripts             |-- DragonBones                 |-- animation                 |-- armature                 |-- ...                 |-- unity                 |-- ...             |-- 3rdParty Scripts             |-- Demos Scripts             |-- ...         |-- Resources             |-- DragonBonesData files             |-- ...         |-- ...     |-- ... ``` ## How to create a new Unity project with DragonBones animation 怎么自己在DragonBones创建的动画导入到Unity的工程

1. Create a new project in Unity.

创建一个新的Unity工程文件

2. Import DragonBones [core library](../DragonBones/src/) and [unity library](./src/) into your project "[Project]/Assets/Scripts/".

导入DragonBones [core library](../DragonBones/src/)代码库到Unity工程路径为"[Project]/Assets/Scripts/"

3. Import the [3rdParty source code](../3rdParty/) to your project "[Project]/Assets/Scripts/".

4. Export DB animation files with DragonBones Pro to your project "[Project]/Assets/Resources/".

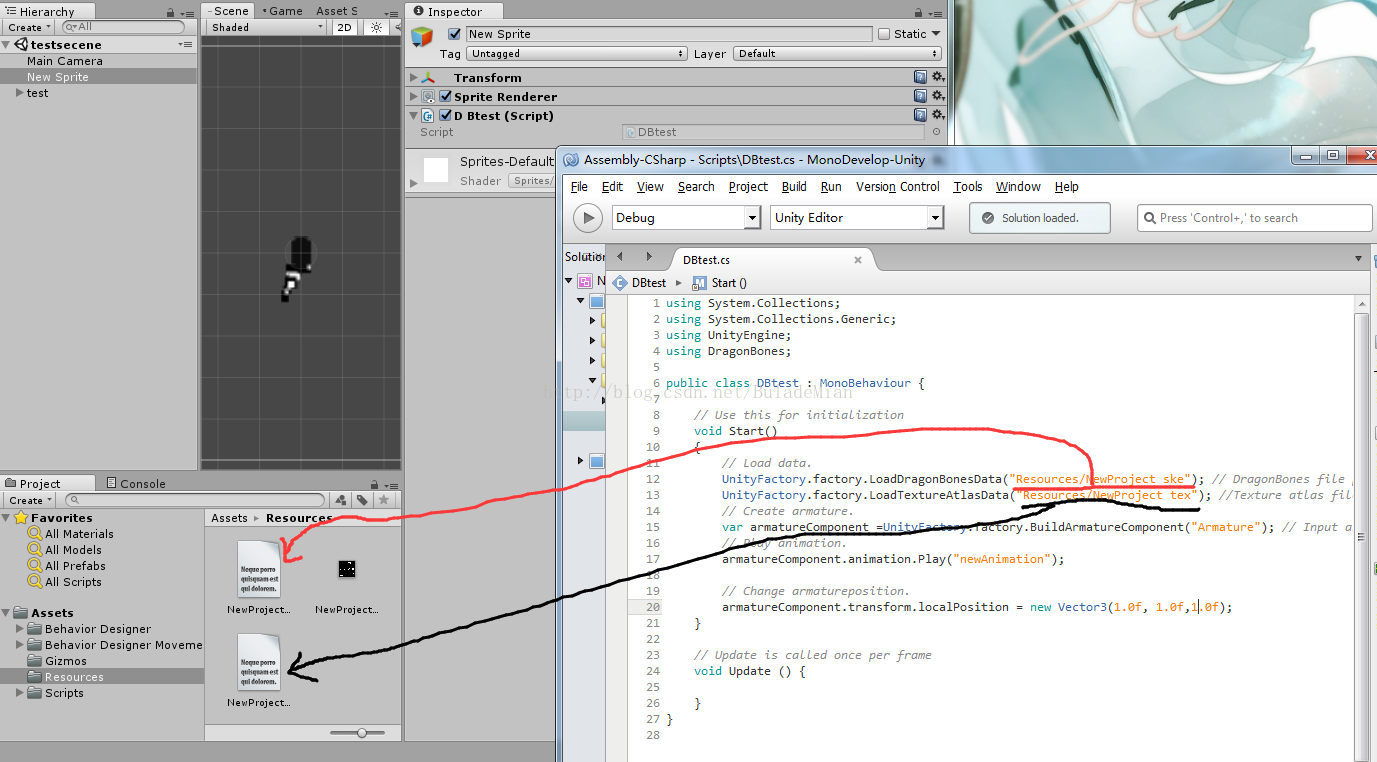

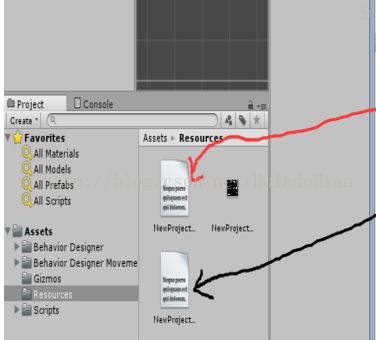

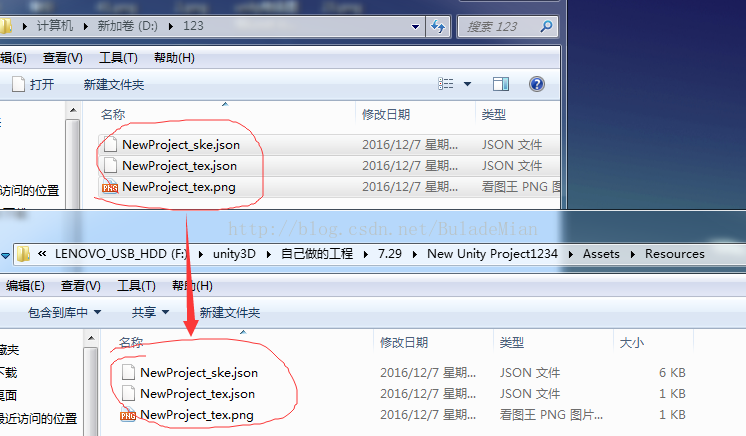

我把DragonBones的工程导入到一个名字为123的文件夹内，把这个文件夹内的内容复制到Unity工程文件夹的名字为Resources文件内（如果没有这个名字的文件夹，新建一个）【或者名字不叫Resources也行】，如下图所示

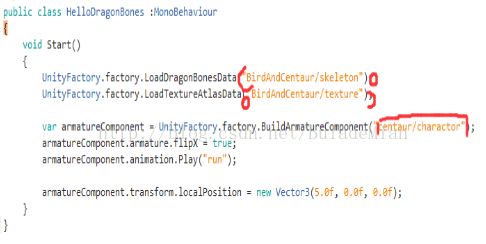

5. Create a new C# script like following: ``` public class HelloDragonBones :MonoBehaviour {     void Start()     {         // Load data.        UnityFactory.factory.LoadDragonBonesData("Ubbie/Ubbie"); // DragonBones file path (without suffix)        UnityFactory.factory.LoadTextureAtlasData("Ubbie/texture"); //Texture atlas file path (without suffix)         // Create armature.         var armatureComponent =UnityFactory.factory.BuildArmatureComponent("ubbie"); // Input armature name         // Play animation.        armatureComponent.animation.Play("walk");                  // Change armatureposition.        armatureComponent.transform.localPosition = new Vector3(0.0f, 0.0f,0.0f);     } }

```

在Unity视图里面创建一个2D精灵，名字随便，然后创建一个.CS文件

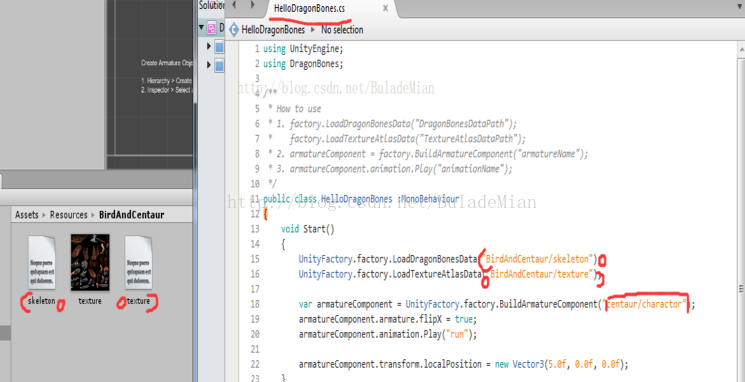

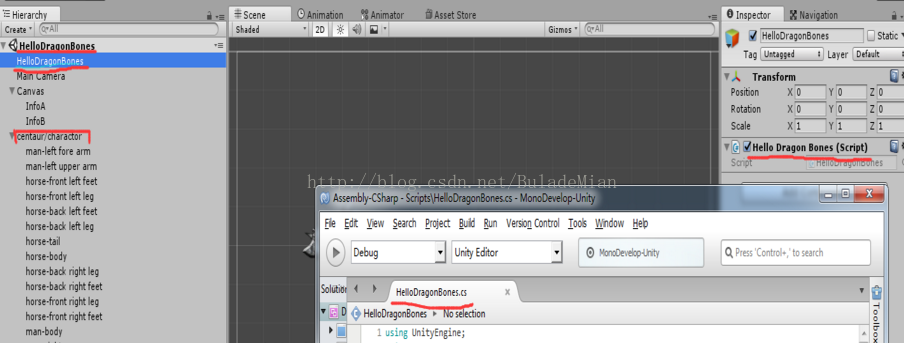

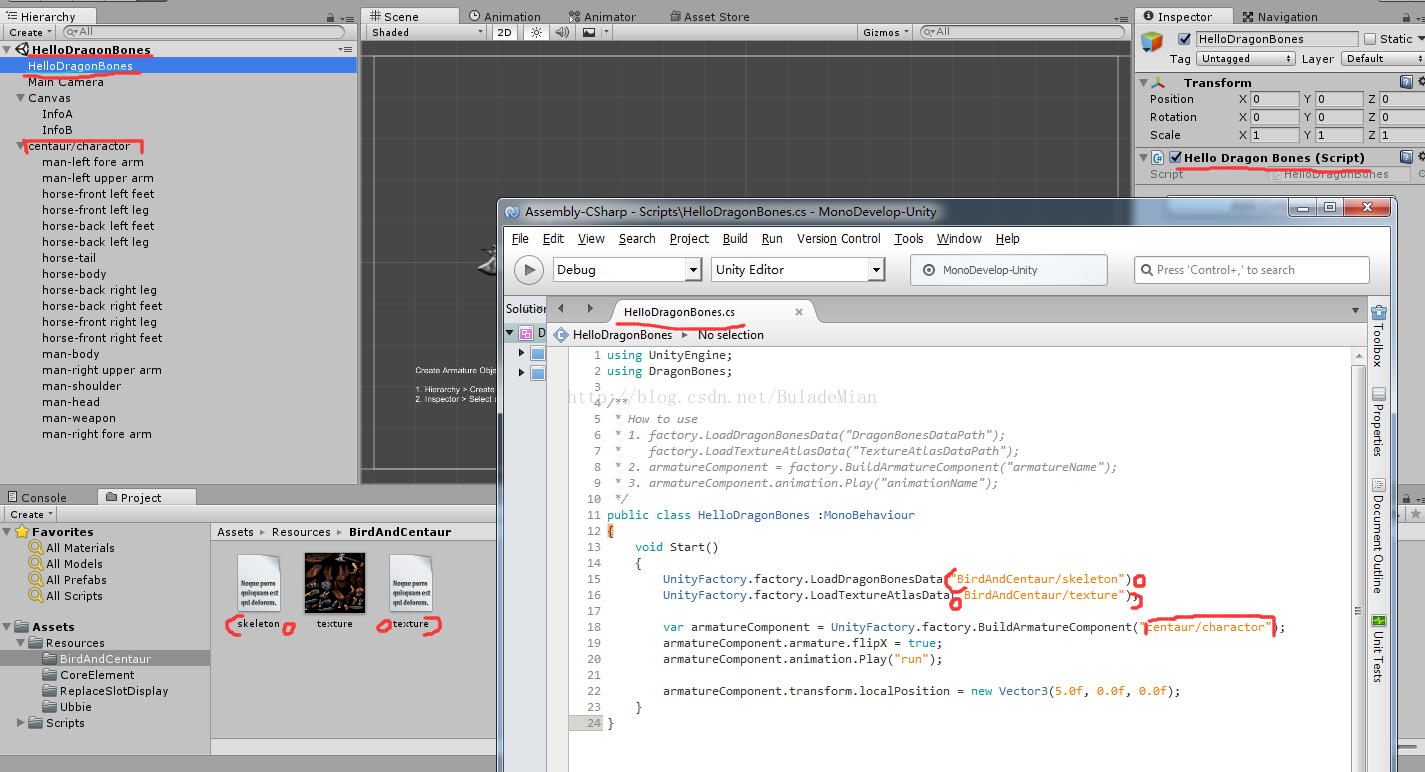

可以参照DEMON里面的HELLODRAGONBONES场景的.CS文件

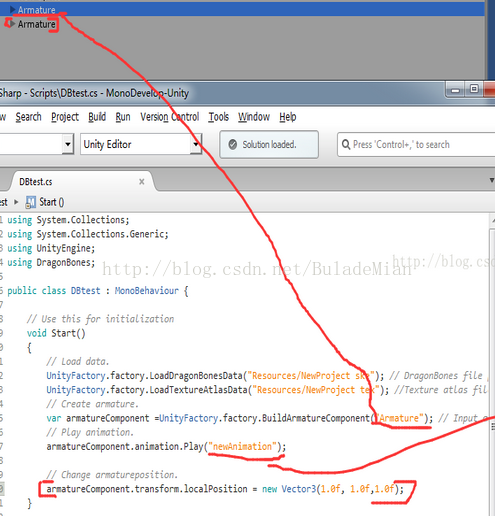

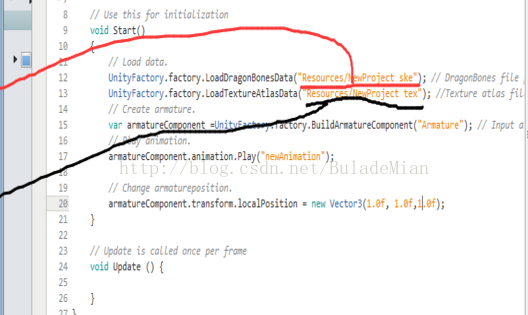

对应的文件名字以及意义如上图所示

就会出现错误 UnityFactory does not exist in the current context

解决方法如下所示

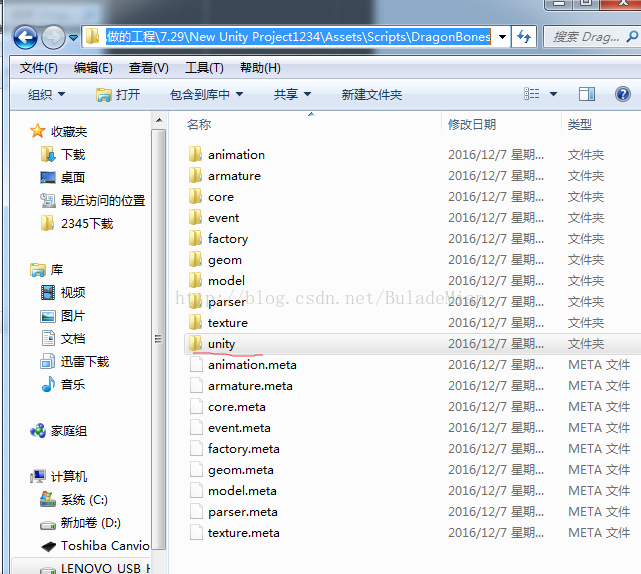

...\DragonBonesCSharp-master\DragonBonesCSharp-master\Unity\Demos\Assets\Scripts\DragonBones

的这个unity文件复制到

你的工程文件下的Assets\Scripts\DragonBones\下

创建一个2D精灵（名字不做要求），为其添加Unity Armature Component组件

其设置如下所示

(Unity Armature Component 里面的 DragonBones Data 为后缀名_ske 的文件。本文已经详细 说明 后缀名_ske.json 的文件是从哪里来的。因此不再赘述。)

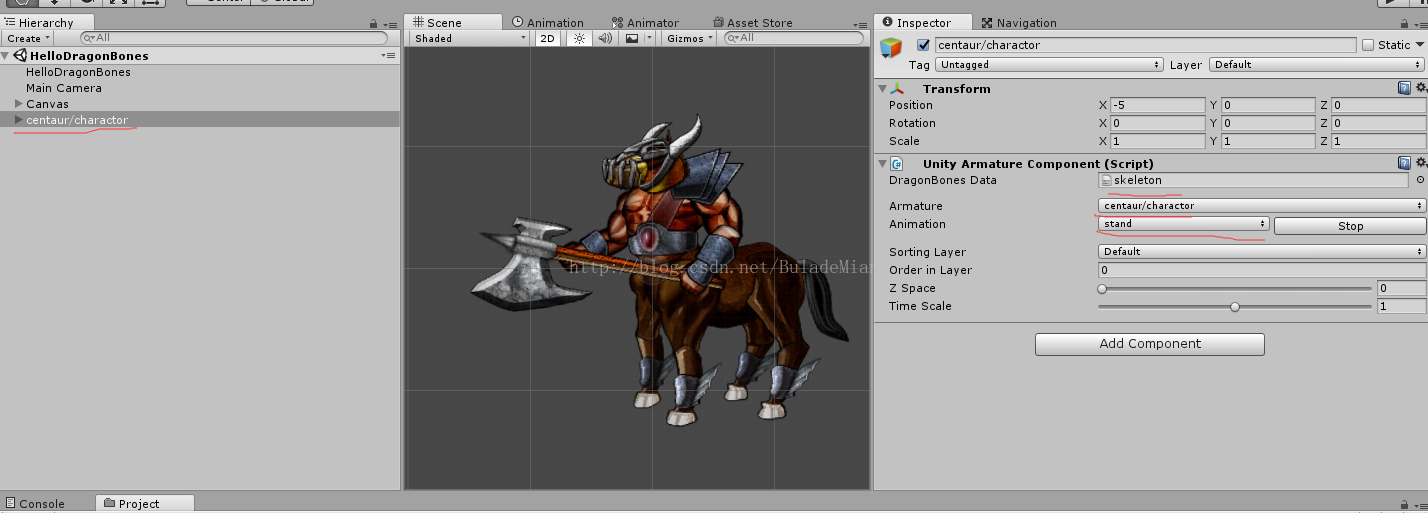

点击运行后，会创建一个新的复制精灵

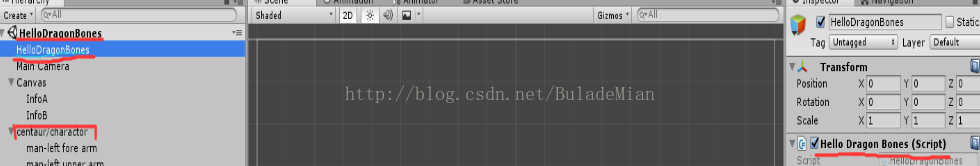

对应Demon的显示如下所示
